Product description
1.4 External design of the device
Operating Instructions, 01/2021, A5E43920357-AA
25

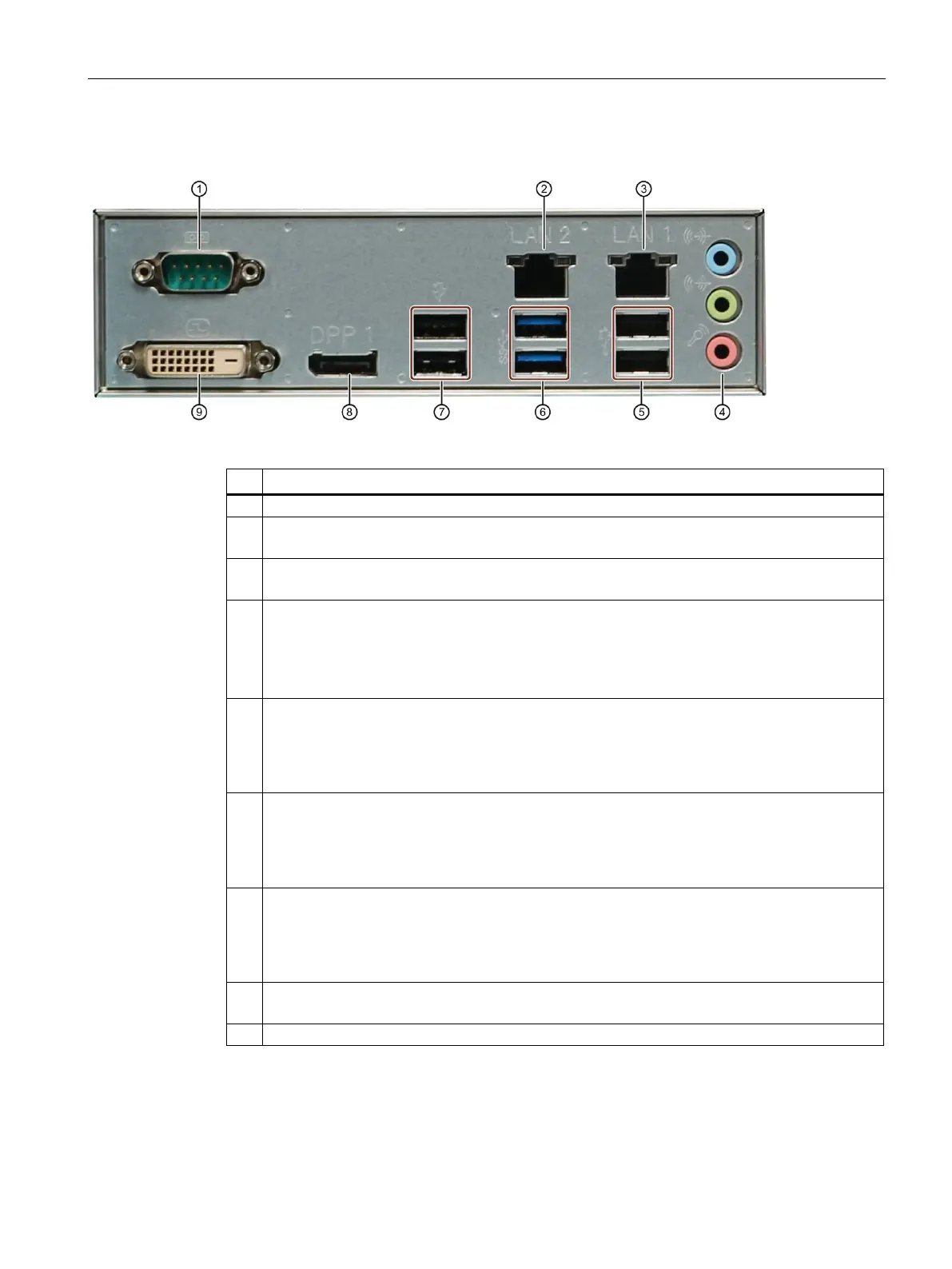

Connections on the rear of the device with SMS-H410 motherboard
Note the technical specifications of the interfaces (Page 158).
No.
Connection socket
①
COM1 (X30)
②
LAN 2 (X2 P1)
Intel® Jacksonville I219-V
③
LAN 1 (X1 P1)
Intel® Springville i210-AT
④
Audio
• Line IN (X90)
• Headphone OUT (X91)
•
Microphone IN (X92)
⑤
2 x USB 2.0; Type A
backwards compatible to USB 1.1; each 500 mA / high current
1
• (X64)
• (X65)
⑥
2 x USB 3.1 Gen 1; Type A
SuperSpeed; backwards compatible to USB 3.0 / 2.0 / 1.1; each 900 mA / high current
1
• (X62)
• (X63)
⑦
2 x USB 2.0; Type A
backwards compatible to USB 1.1; each 500 mA / high current
1
• (X60)
• (X61)
⑧
DisplayPort (labeling on the device: DPP), for connecting monitors to internal graphics card
DPP1 (X71)
⑨
DVI-D (X70), for connecting monitors to internal graphics card
1
Sum of the currents on the USB interfaces of the device
(including the internal USB interfaces) ≤ 3 A
