Product description
1.4 External design of the device
26 Operating Instructions, 01/2021, A5E43920357-AA

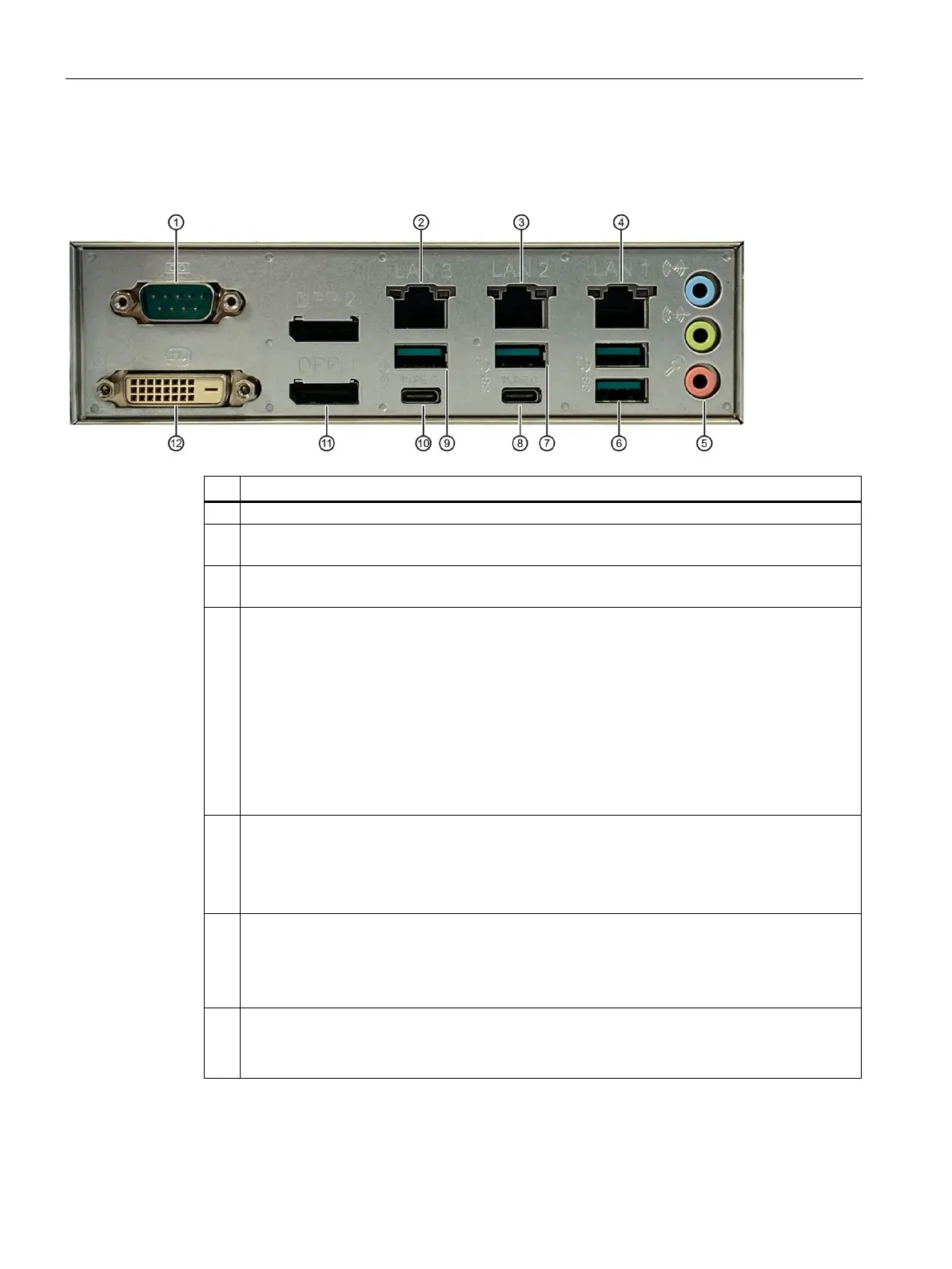

Connections on the rear of the device with SMS-W480 motherboard
Note the technical specifications of the interfaces (Page 158).
No.
Connection socket
①
COM1 (X30)
②
LAN 3 (X3 P1)
Intel® Springville i210-AT
③
LAN 2 (X2 P1)
Intel® Springville i210-AT
④
LAN 1 (X1 P1)
Intel® Jacksonville i219-LM; AMT-capable
iAMT and teaming cannot be used simultaneously on the LAN interface.
The following teaming modes are supported:
• Adapter Fault Tolerance (AFT)
• Adaptive Load Balancing (ALB)
• IEEE 802.3ad Dynamic Link Aggregation (DLA)
• Static Link Aggregation (SLA)
•
Switch Fault Tolerance (SFT)
⑤
Audio
• Line IN (X90)
• Headphone OUT (X91)
• Microphone IN (X92)
⑥
2 x USB 3.1 Gen 2; Type A
SuperSpeed; backwards compatible to USB 3.0 / 2.0 / 1.1; each 900 mA / high current
1
• (X64)
• (X65)
⑦
USB 3.1 Gen 2; Type A
SuperSpeed; backwards compatible to USB 3.0 / 2.0 / 1.1; each 900 mA / high current
1
• (X62)
