Configuring with Web Based Management
4.3 "Information" menu
SCALANCE SC-600 Web Based Management (WBM)
Configuration Manual, 10/2021, C79000-G8976-C475-03
101
4.3.11.3 Sync Firewall State

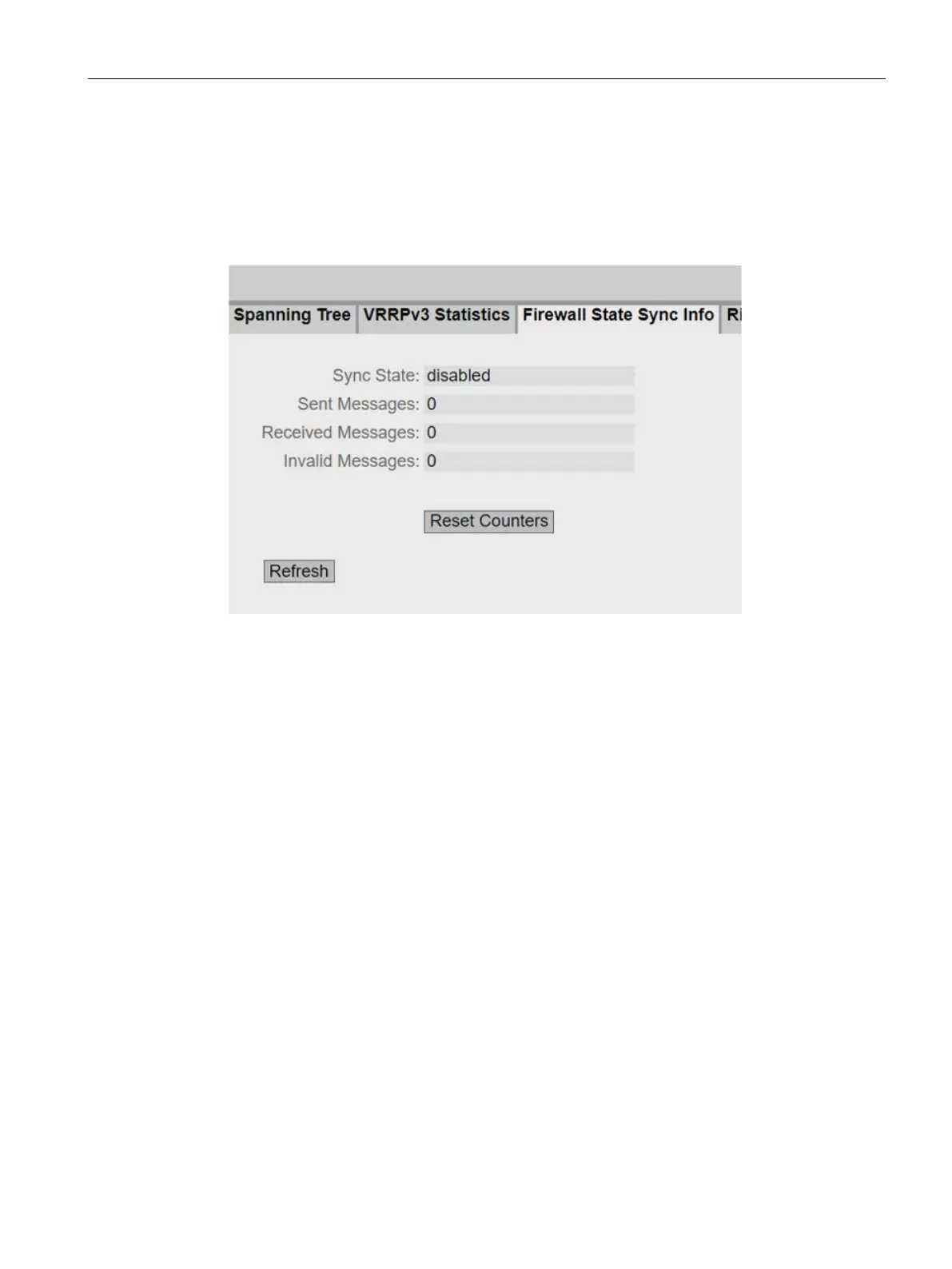

Information on the Firewall State Sync
On this page, you obtain the following information about the Firewall State Sync.
Description of the displayed values
The table has the following columns:
• Sync State
Shows the status of the Firewall State Sync:
– running: Valid messages from the synchronization partner are being received.
– no receive: No messages were received from the synchronization partner during
the valid period (5 seconds).
– error: The message could not be sent due to an internal error.
– disabled: The function is disabled.
• Sent Messages
Number of sent synchronization messages.
• Received Messages
Number of valid messages that were transferred by the synchronization partner.
