Configuring with Web Based Management
4.7 "Security" menu
SCALANCE SC-600 Web Based Management (WBM)
Configuration Manual, 10/2021, C79000-G8976-C475-03
313

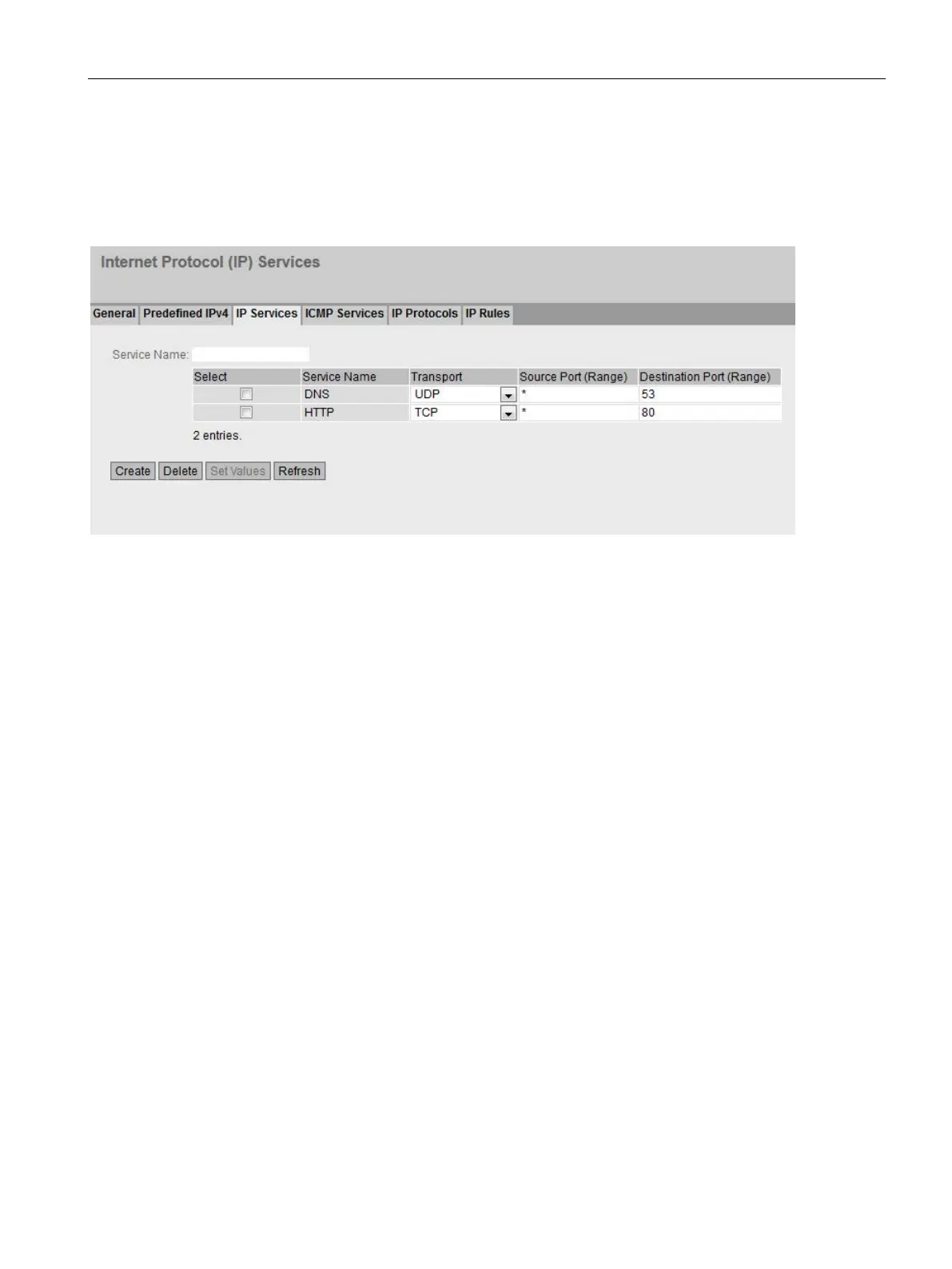

4.7.5.4 IP services
On this WBM page, you define IP services. Using the IP service definitions, you can
define firewall rules for specific services. You select a name and assign the service
parameters to it. When you configure the IP rules, you simply use this name.
Description
The page contains the following:
• Service Name
Enter the name of the IP service. The name must be unique.
This table contains the following columns:
• Select
Activate the check box in the row to be deleted.
• Service Name
Shows the name of the IP service.
• Transport
Specify the protocol type.
– UDP
The rule applies only to UDP frames.
– TCP
The rule applies only to TCP frames.
