4.5 "Layer 2" menu
4.5.1 Configuration

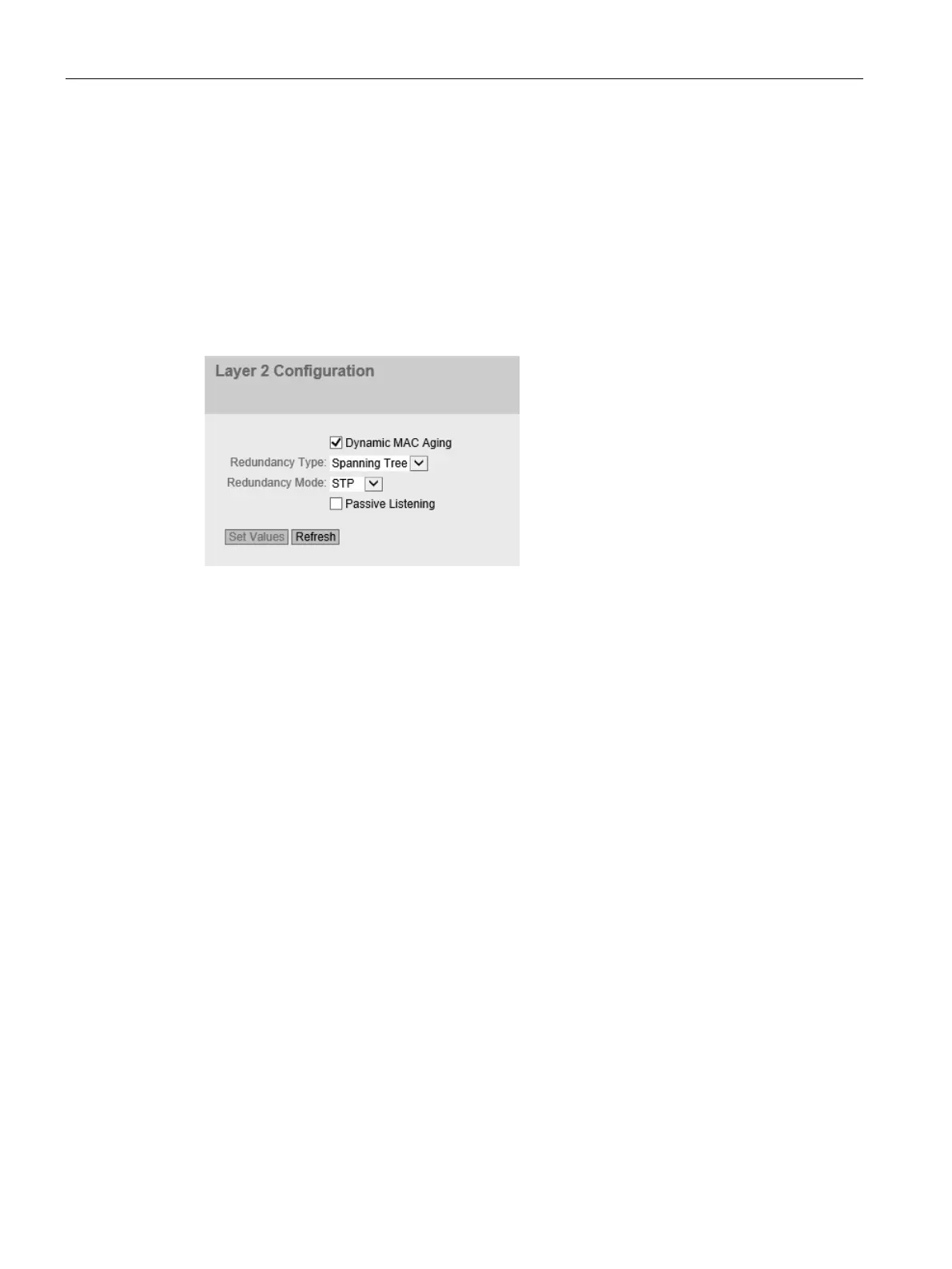

Configuring layer 2
On this page, you create a basic configuration for the functions of layer 2.
Description
• Dynamic MAC Aging
Enable or disable the "Aging" mechanism. You can configure other settings under
"Layer 2 > Dynamic MAC Aging".
Redundancy Type
The following settings are available:
• "-" (disabled)
The redundancy function is disabled.
• Ring
If you select this option, you specify the required redundancy mode in the
"Redundancy Mode" drop-down list.
• Spanning Tree
If you select this option, you specify the required redundancy mode in the
"Redundancy Mode" drop-down list.
Redundancy Mode
If you select "Ring" in the "Redundancy Type" drop-down list, the following options are
then available:
• MRP-Client
The device adopts the role of MRP client.
• HRP-Client
The device adopts the role of HRP client.
