Configuring with Web Based Management
4.3 "Information" menu
SCALANCE SC-600 Web Based Management (WBM)
Configuration Manual, 10/2021, C79000-G8976-C475-03
113
Description
The table has the following columns:
• VLAN ID
Shows the VLAN ID assigned to this MAC address.
• MAC Address
Shows the MAC address of the node for which the authentication status is displayed.
• Status
The authentication status of the node. The following options are possible:
– Authorized
Data traffic via the port is possible after successful authentication with the "MAC
Authentication" method.
– Unauthorized
Data traffic via the port is not possible because no authentication has taken place
with the "MAC Authentication" method yet or the authentication method was not
successful.
• Port
Shows the port via which the node with the specified address can be reached.

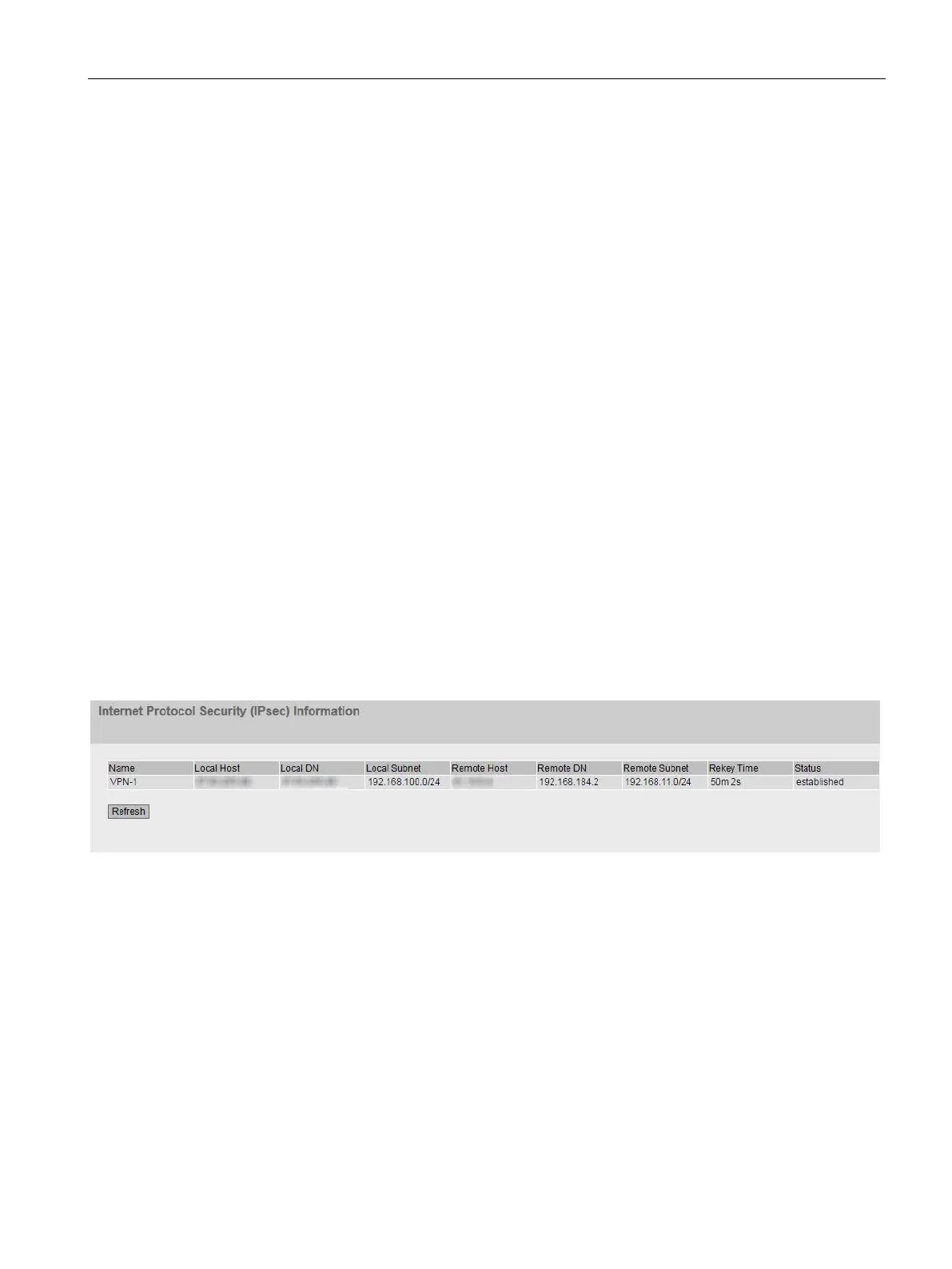

4.3.16 IPSec VPN (SC64x-2C)
The WBM page shows the status of the activated VPN connections.
Description of the displayed values
The table contains the following columns:
• Name
Shows the name of the VPN connection.
• Local Host
Shows the IP address of the device.
