Configuring with Web Based Management
4.4 "System" menu
SCALANCE SC-600 Web Based Management (WBM)
126 Configuration Manual, 10/2021, C79000-G8976-C475-03

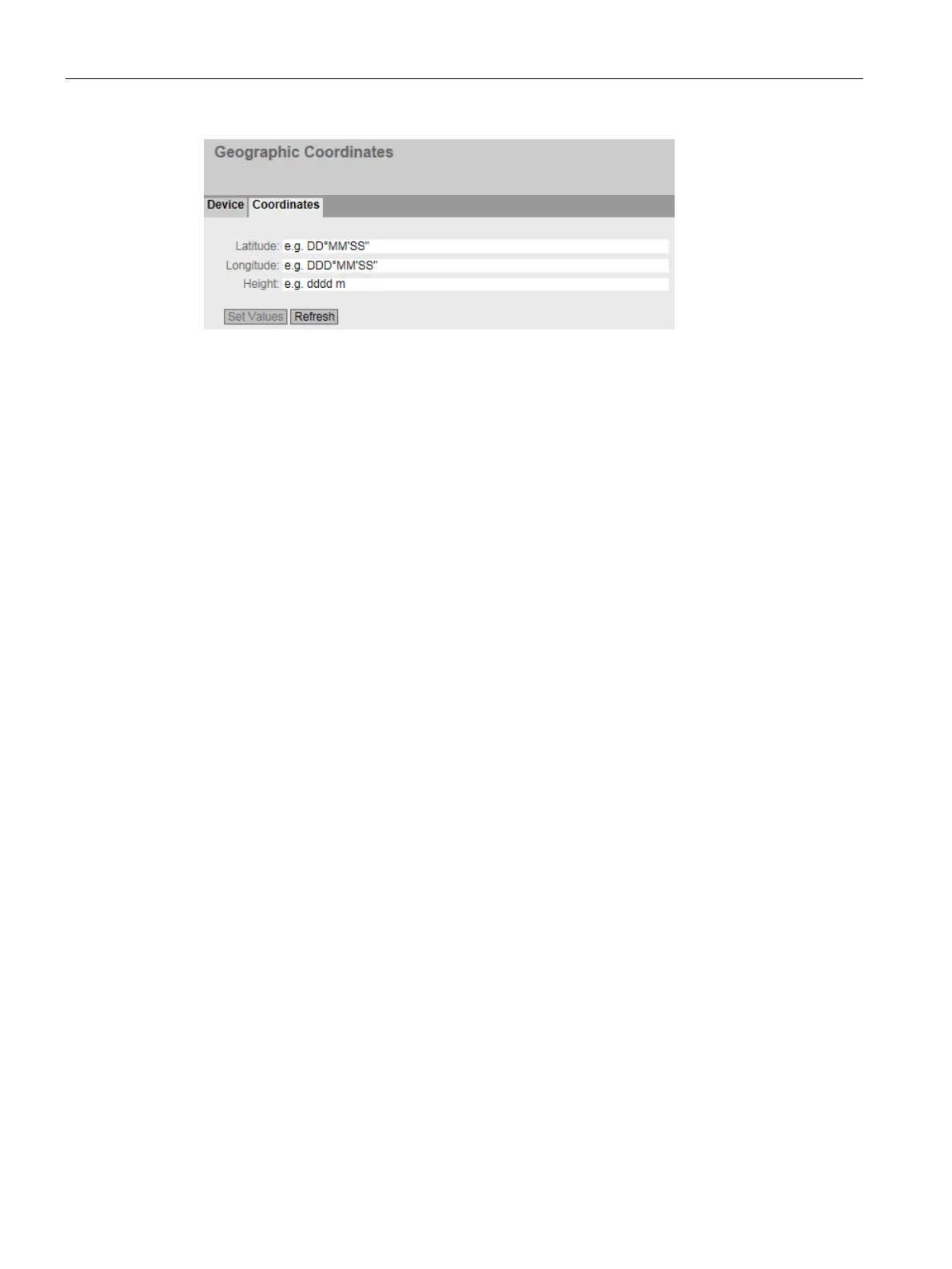

Description
The page contains the following boxes. These are purely information boxes with a
maximum length of 32 characters.
• "Latitude" input box
Geographical latitude: Here, enter the value for the northerly or southerly latitude of
the location of the device.
For example, the value +49° 1´31.67" means that the device is located at 49
degrees, 1 arc minute and 31.67 arc seconds northerly latitude.
A southerly latitude is shown by a preceding minus character.
You can also append the letters N (northerly latitude) or S (southerly latitude) to the
numeric information (49° 1´31.67" N).
• "Longitude" input box
Geographic longitude: Here, you enter the value of the eastern or western longitude of
the location of the device.
The value +8° 20´58.73" means that the device is located at 8 degrees, 20 minutes
and 58.73 seconds east.
A western longitude is indicated by a preceding minus sign.
You can also add the letter E (easterly longitude) or W (westerly longitude) to the
numeric information (8° 20´58.73" E).
• Input box: "Height"
Height Here, you enter the value of the geographic height above sea level in meters.
For example, 158 m means that the device is located at a height of 158 m above sea
level.
Heights below sea level (for example the Dead Sea) are indicated by a preceding
minus sign.
Procedure
1. Enter the calculated latitude in the "Latitude" input box.
2. Enter the calculated longitude in the "Longitude" input box.
3. Enter the height above sea level in the "Height" input box.
4. Click the "Set Values" button.
