Configuring with Web Based Management
4.4 "System" menu
SCALANCE SC-600 Web Based Management (WBM)
140 Configuration Manual, 10/2021, C79000-G8976-C475-03
Description

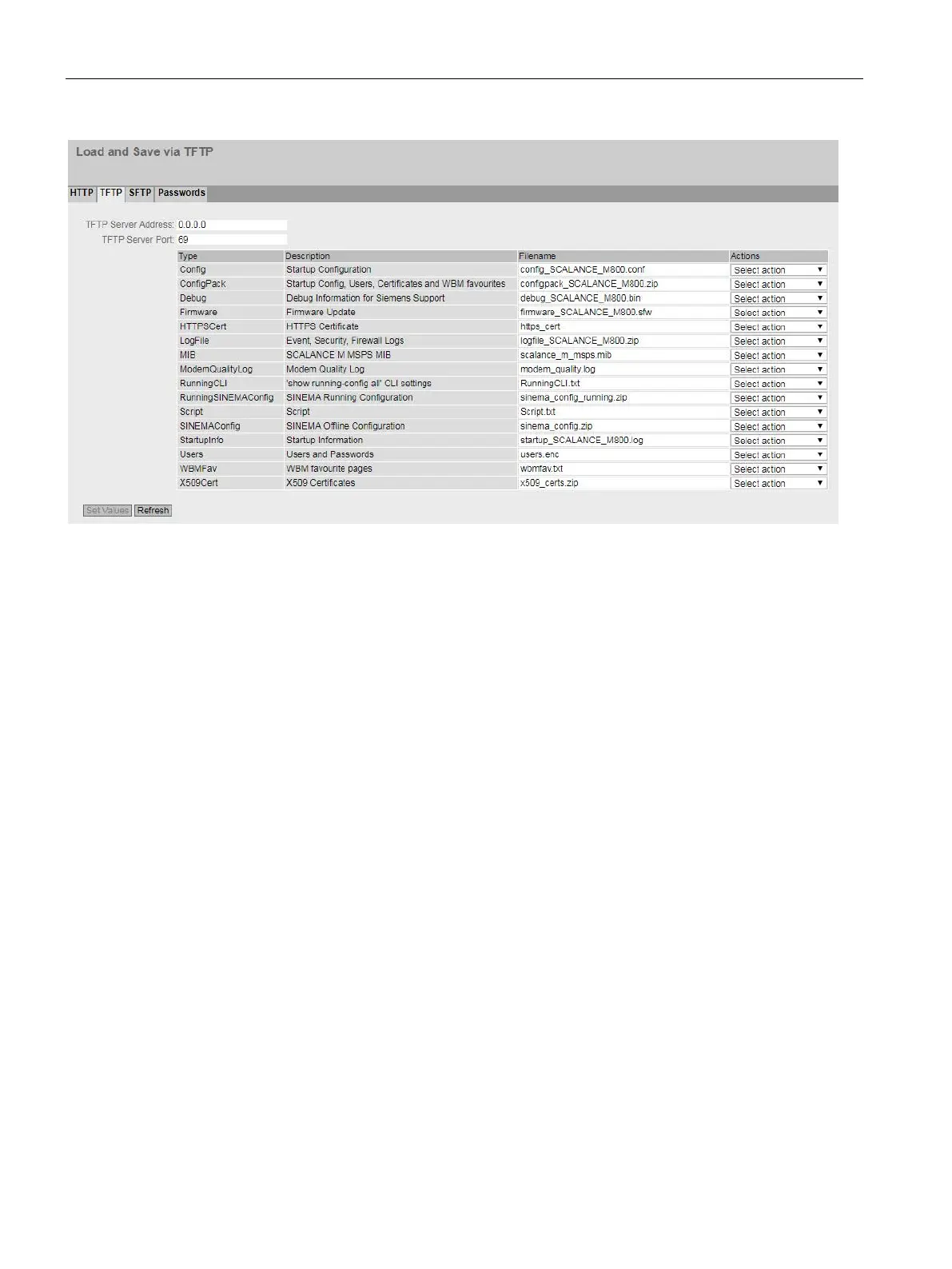

The page contains the following boxes:
• TFTP Server Address
Enter the IP address or the FQDN (Fully Qualified Domain Name) of the TFTP server
with which you exchange data.
• TFTP Server Port
Enter the port of the TFTP server via which data exchange will be handled. If
necessary, you can change the default value 69 to your own requirements.
The table has the following columns:
• Type
Shows the file type.
• Description
Shows the short description of the file type.
