Configuring with Web Based Management
4.4 "System" menu
SCALANCE SC-600 Web Based Management (WBM)
212 Configuration Manual, 10/2021, C79000-G8976-C475-03
Description

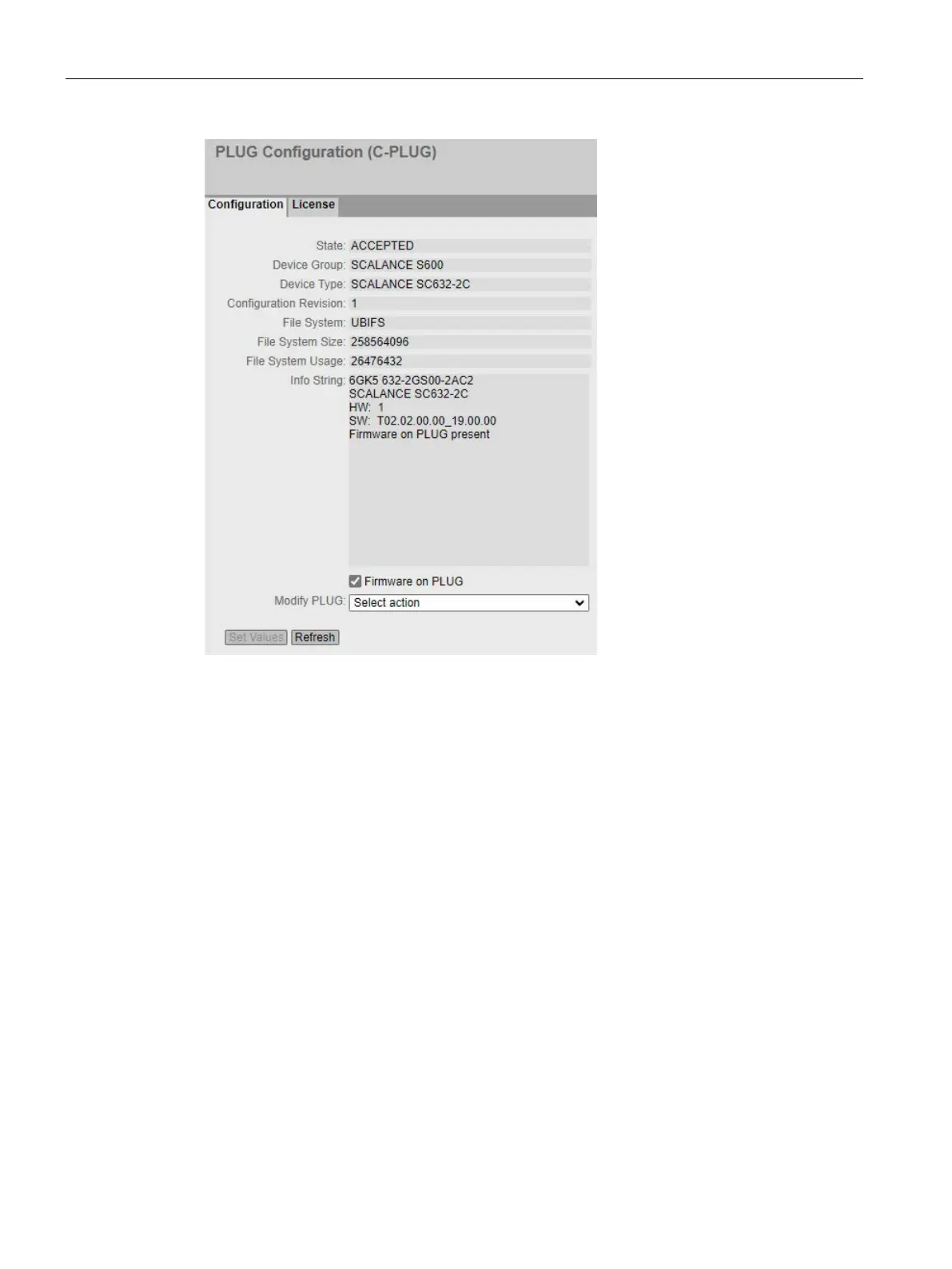

The table has the following rows:
• Status
Shows the status of the PLUG. The following are possible:
– ACCEPTED
There is a PLUG with a valid and suitable configuration in the device.
– NOT ACCEPTED
Invalid or incompatible configuration on the inserted PLUG.
– NOT PRESENT
There is no C-PLUG or KEY-PLUG inserted in the device.
– FACTORY
PLUG is inserted and does not contain a configuration. This status is also
displayed when the PLUG was formatted during operation.
– MISSING
There is no PLUG inserted. Functions are configured on the device for which a
license is required.
• Device Group
Shows the SIMATIC NET product line that used the C-PLUG or KEY-PLUG previously.
