5.3 SIMATIC RF650R
SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
119
5.3 SIMATIC RF650R
5.3.1 Description
5.3.1.1 Overview
The SIMATIC RF650R is a stationary reader in the UHF frequency band without an
integrated antenna. Up to four external UHF RFID antennas can be connected via RP-TNC
connectors.
The maximum transmit power is 1000 mW at the reader output. A radiated power of up to
2000 mW ERP / 4000 mW EIRP is achieved when the appropriate antennas and antenna
cables are used. The interfaces (Ethernet, power supply, DI/DQ interface) are located on the
lower front edge. These interfaces can be used to connect the reader to the power supply
and a PC for parameter assignment.
The degree of protection is IP30.

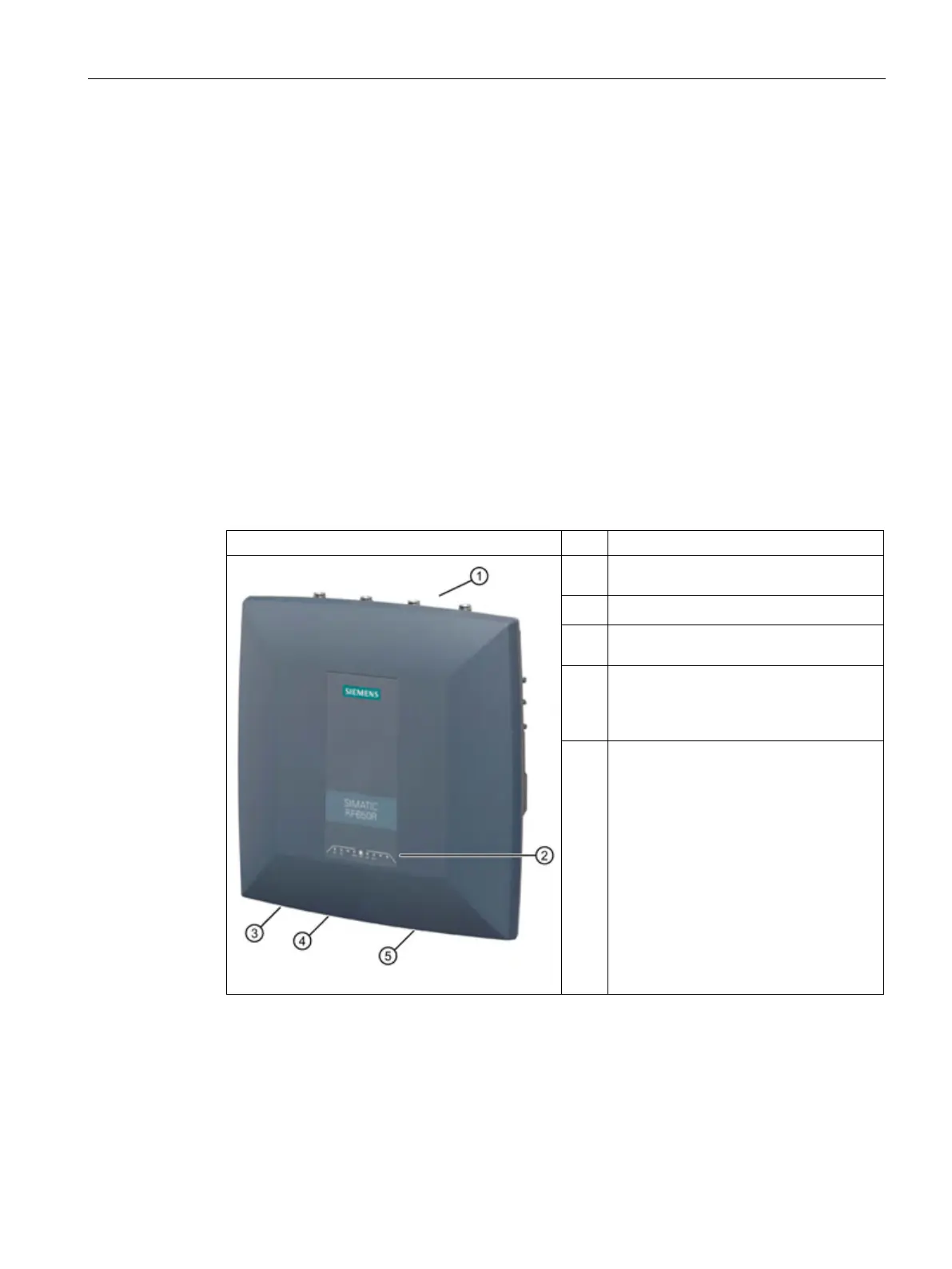

Pos.
Description
â‘
RP-TNC interfaces
for connecting up to 4 external antennas
â‘¡
LED operating display
â‘¢
DI/DQ interface: X10 DI/DQ
(M12, 12-pin)
â‘£
RS422 interface
for connecting the power supply 24 V
DC: X80 DC24V
(M12, 8-pin)
⑤
Ethernet interface, TCP/IP: X1 P1
(RJ45, 8-pin)
