5.2 SIMATIC RF615R
SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
115
5.2.6 Dimension drawing

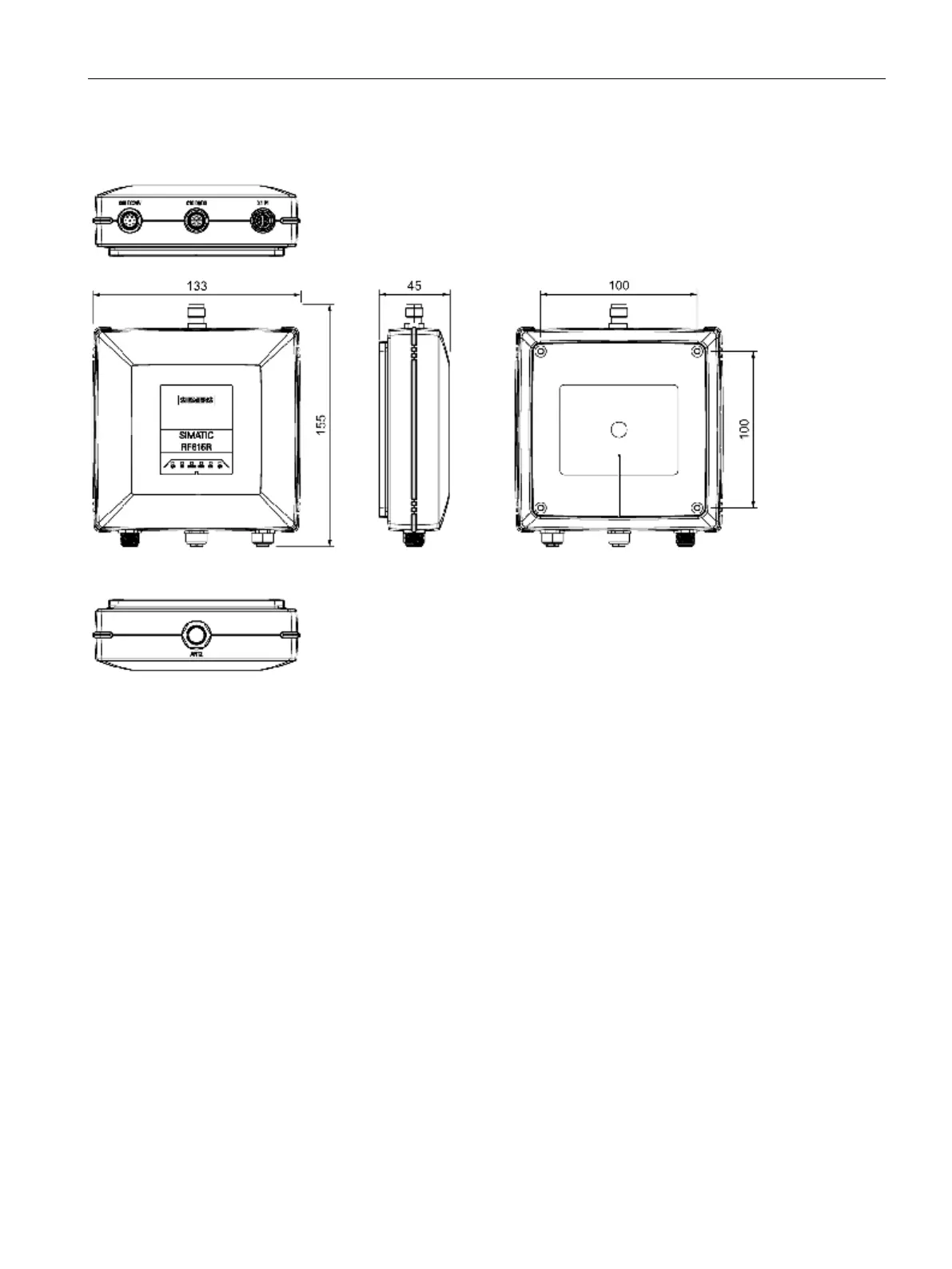

Figure 5-9 Dimension drawing RF615R
All dimensions in mm (± 0.5 mm tolerance)
