Transponder
7.13 SIMATIC RF645T
SIMATIC RF600
424 System Manual, 11/2018, J31069-D0171-U001-A21-7618
7.13.4 Dimension drawing
All dimensions in mm
SIMATIC RF645T

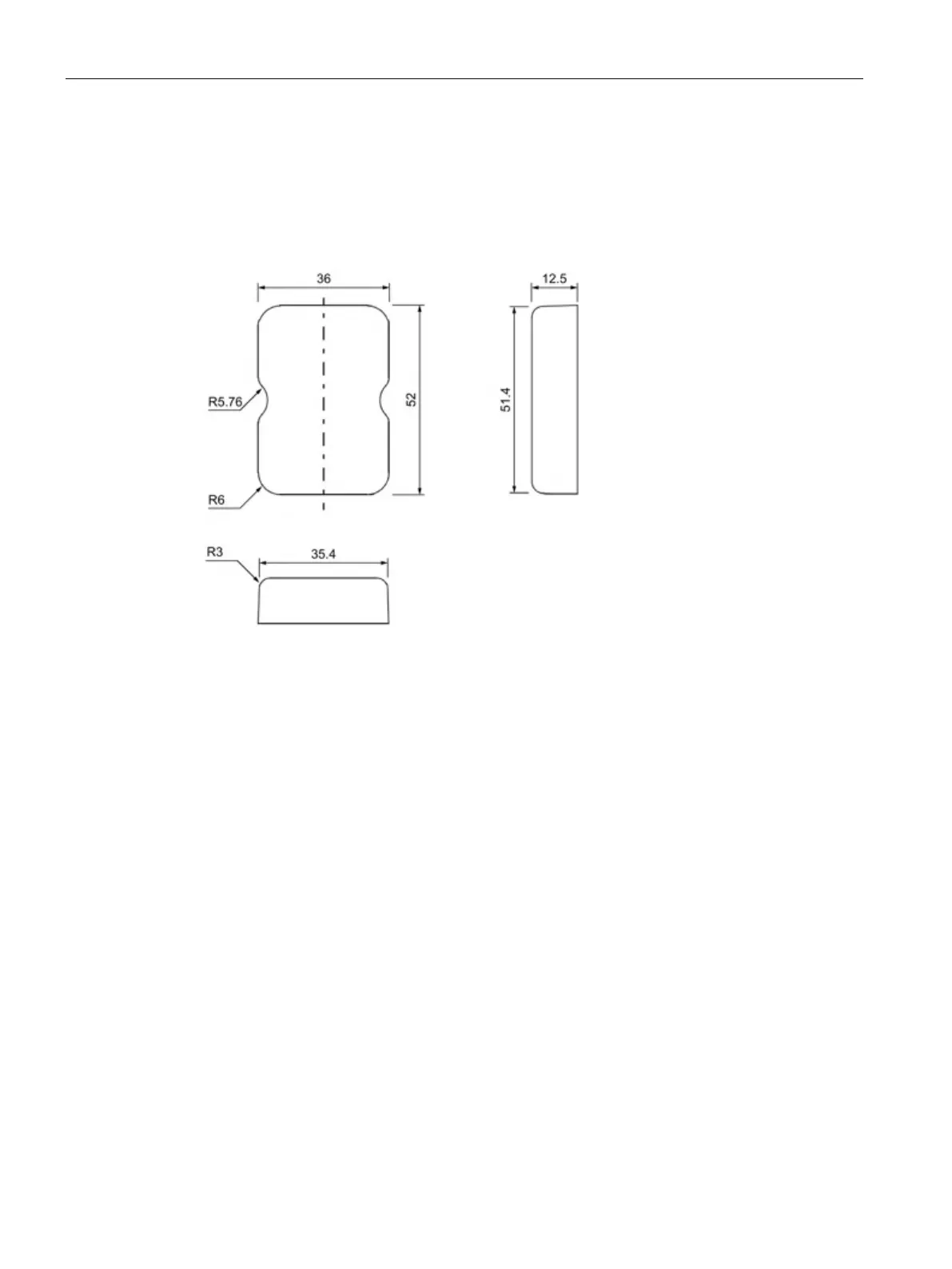

Figure 7-34 Dimension drawing of SIMATIC RF645T
