Transponder
7.11 SIMATIC RF630T
SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
405

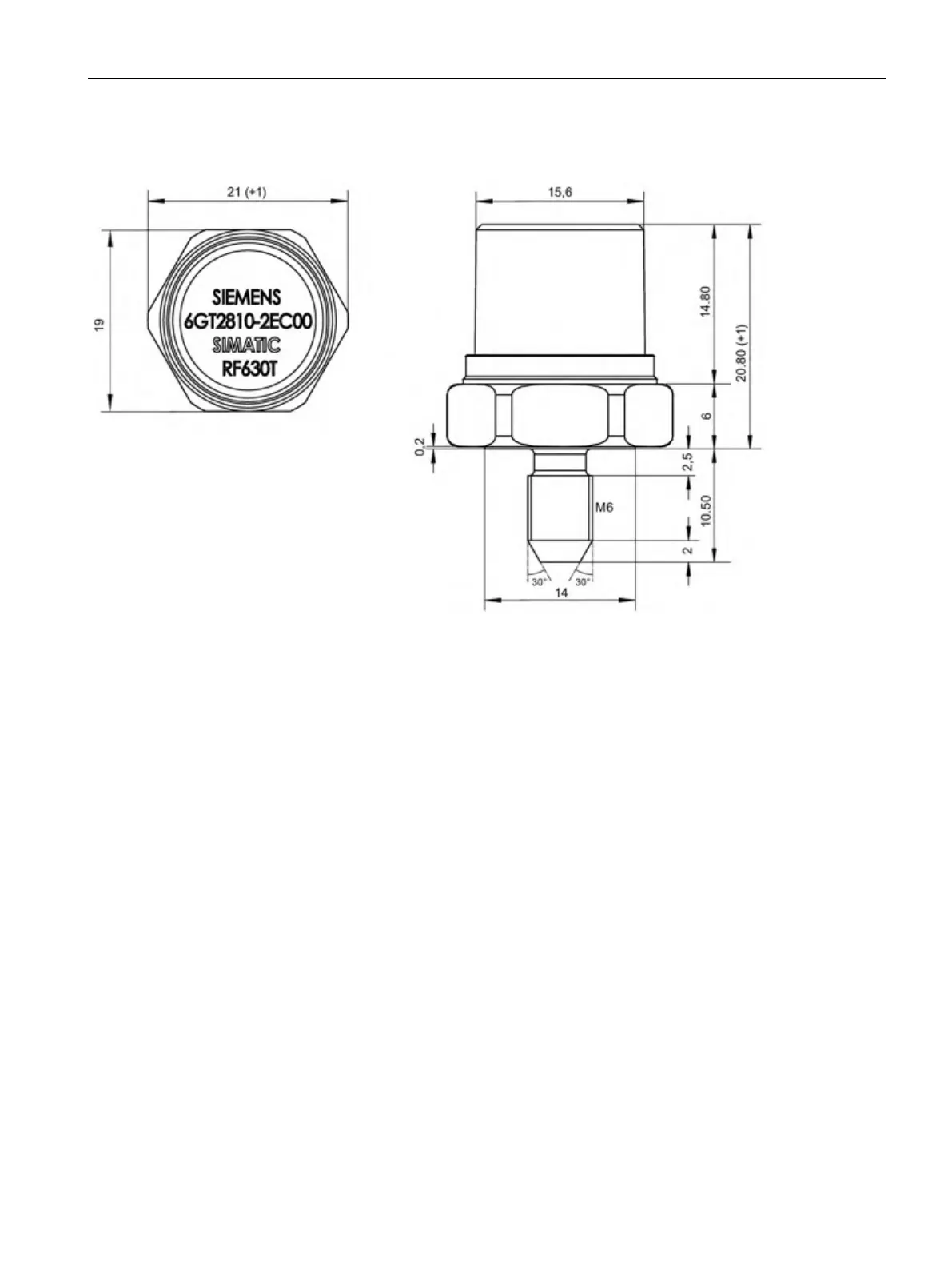

7.11.5 Dimension drawing
Figure 7-28 SIMATIC RF630T
Units of measurement: All dimensions in mm
General tolerances in accordance with DIN ISO 2768f.
