RF600 system planning
4.3 Antenna configurations
SIMATIC RF600
46 System Manual, 11/2018, J31069-D0171-U001-A21-7618
4.3.4 Specified minimum and maximum spacing of antennas
Specified minimum spacing of antennas
The following diagram shows the specified minimum and maximum spacings for mounting
antennas:
Between the antenna and liquids or metals, a minimum distance of 50 cm should be kept to.
The distance between the antenna and the floor should also be at least 50 cm.

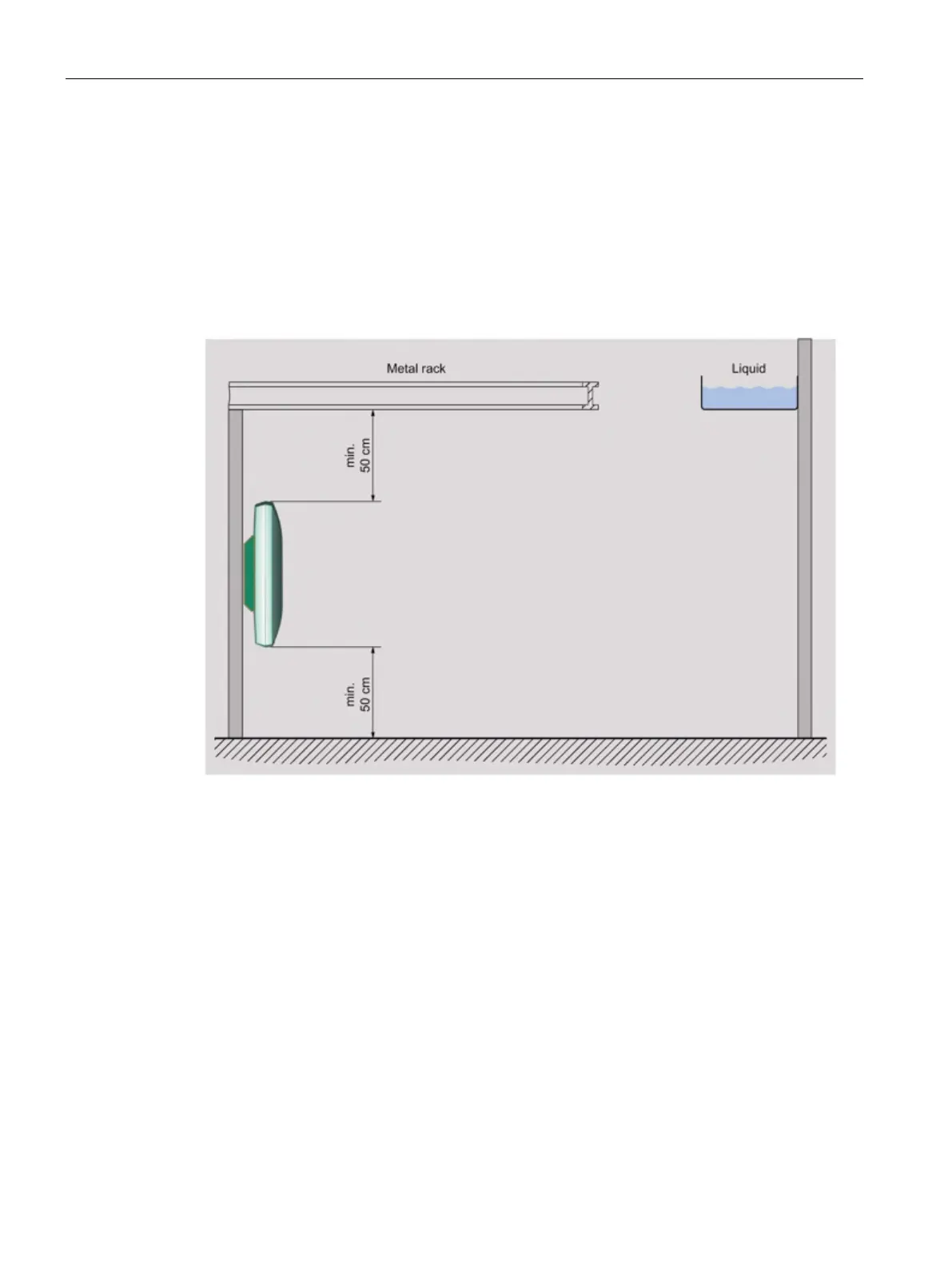

Figure 4-7 Minimum distance to the environment
