Readers
5.5 SIMATIC RF685R
SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
177
Voltage infeed from external source with various voltages

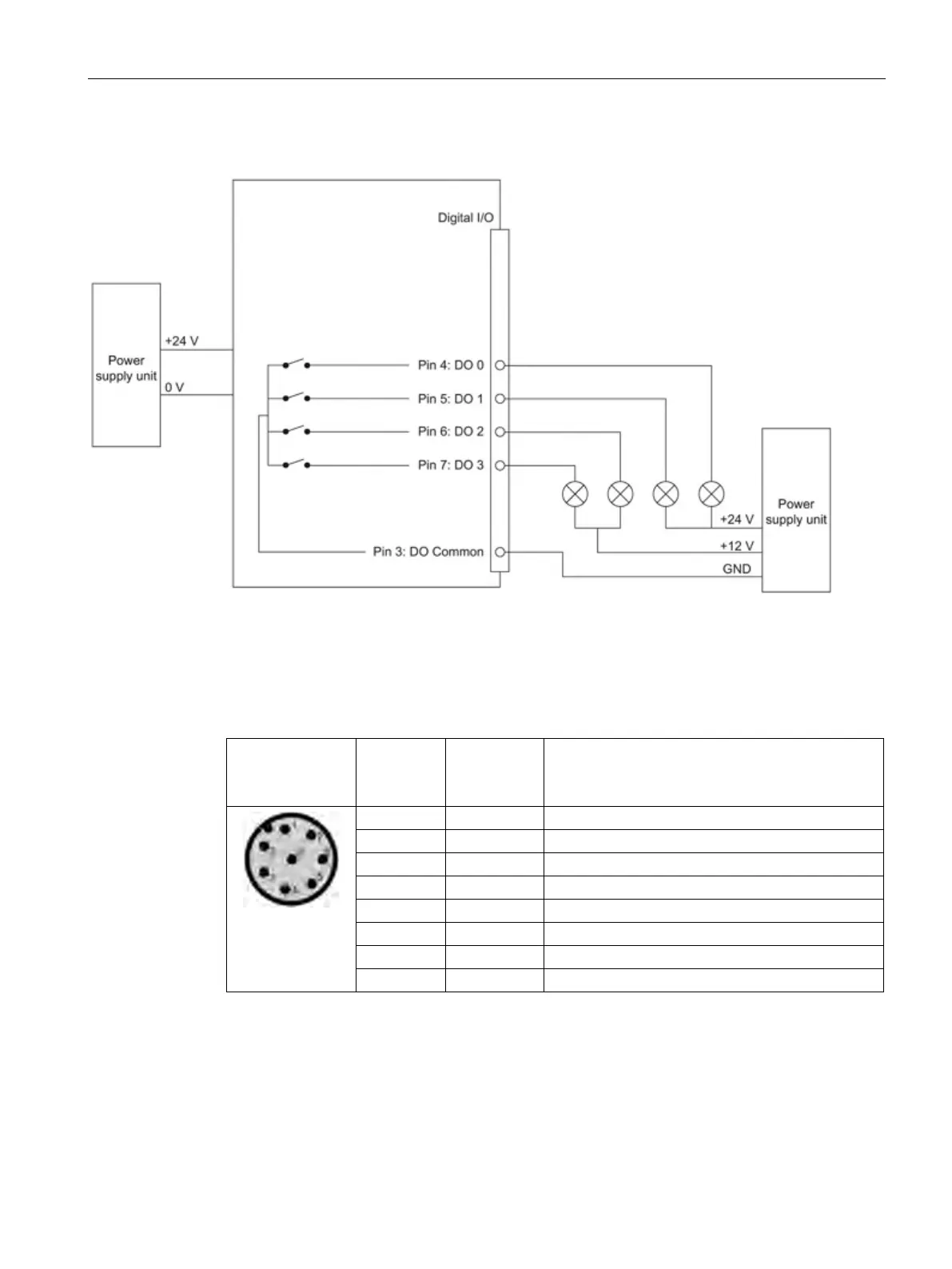

Figure 5-34 Circuit example 6: Digital outputs
5.5.1.5 Pin assignment of the RS422 interface (X80 DC24V)
Table 5- 39 Pin assignment of the RS422 interface (reader end)
Interface view
Pin
Device end
8-pin M12
Wire colors
Assignment
1
White
+ 24 V
2
1)
Brown
- Transmit
3
Green
0 V
4
1)
Yellow
+ Transmit
5
1)
Gray
+ Receive
6
1)
Pink
- Receive
7
--
Unassigned
8 -- Earth (shield)
1)
These pins are not required if the reader is operated via Ethernet.
