5.2 SIMATIC RF615R
SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
99
5.2.1.3 Pin assignment of the DI/DQ interface (X10 DI/DQ)

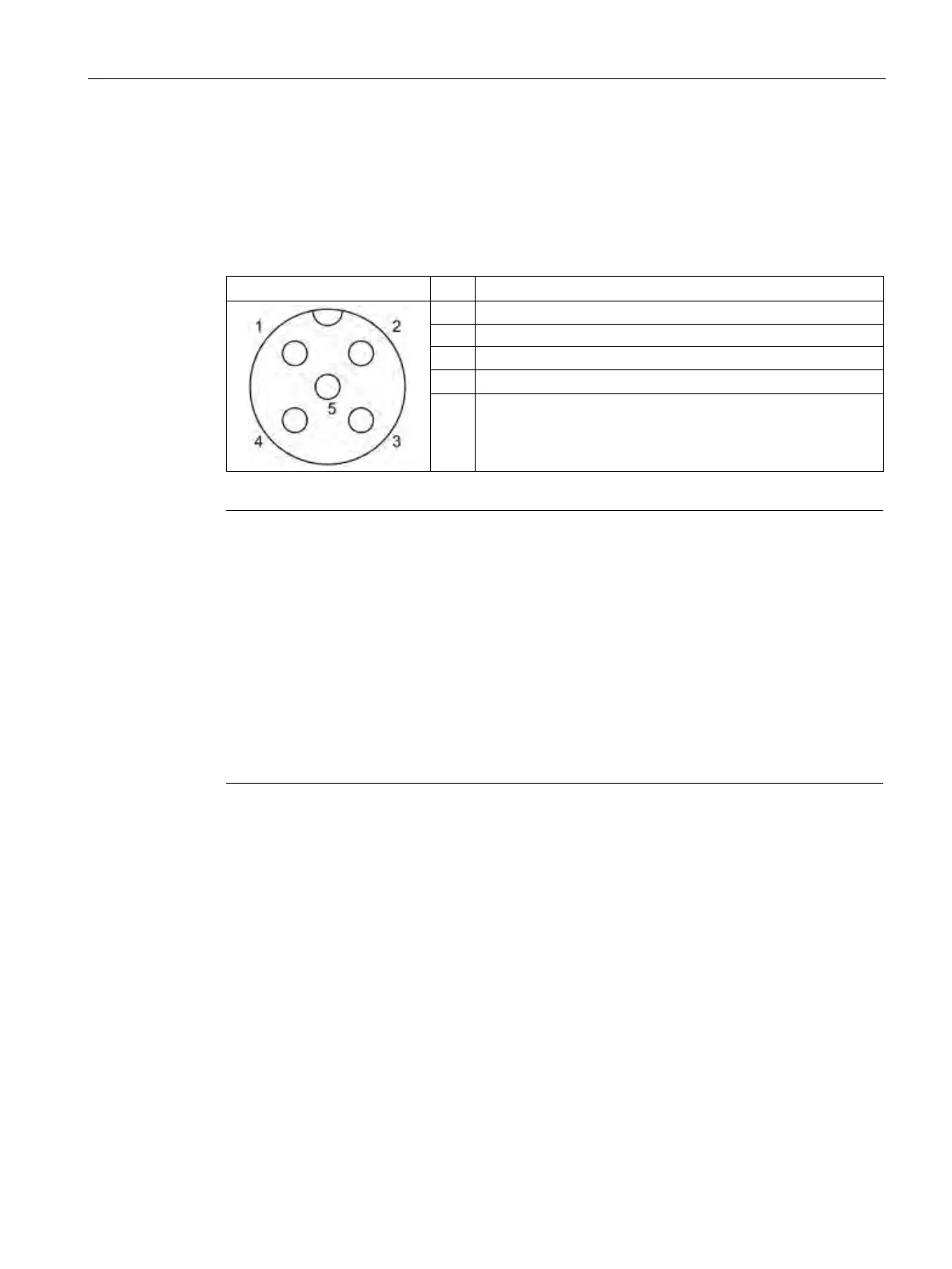

View of the DI/DQ interface (reader end)
Table 5- 4 Pin assignment of the DI/DQ interface
M12 socket (reader end)
Pin
Pin assignment
1
DI Common / Input Common
2
DO
3
DO Common / Output Common
4 DI
5 Not connected
Note
Requirement for external power sources
If the DI/DQ interface is supplied by means of an
external power source, the power source
must comply with requirements on limited power sources (LPS) and
NEC Class 2.
Requirement for external power sources
If the DI/DQ interface is supplied by an external power source, the power source must
comply with r
equirements on limited power sources (LPS) and NEC Class 2.
Spécification des sources de tension externes
En cas d'alimentation de l'interface DI/DO par une source de tension externe, la source de
tension doit être conforme aux spécifications des sources à
puissance limitée (Limited
Power Sources LPS) et de NEC class 2.
