5.4 SIMATIC RF680R
SIMATIC RF600
164 System Manual, 11/2018, J31069-D0171-U001-A21-7618
Standards, specifications, approvals
Proof of suitability EN 301 489-1 V1.9.2 / EN 301 489-3 V1.6.1 /
EN 302 208-1/-3 V1.4.1
FCC CFR 47, Part 15 section 15.247
Measured at the output of the antenna socket.
All supply and signal voltages must be safety extra low voltage (SELV/PELV according to
EN 60950). The voltage sources must meet the requirements of limited power sources (LPS) and
NEC Class 2.
Note that, depending on the power consumption, using extension cables > 20 m (6GT2891
-4FN50)
may lead to a voltage drop on the reader. This voltage drop can mean that the necessary mini-
mum voltage on the reader is below the required 20 V.
Keep to the switching schemes of the DI/DQ interface.
The values for shock and vibration are maximum values and must not be applied continuously.
These values only apply to mounting using screws.
5.4.6 Dimension drawing

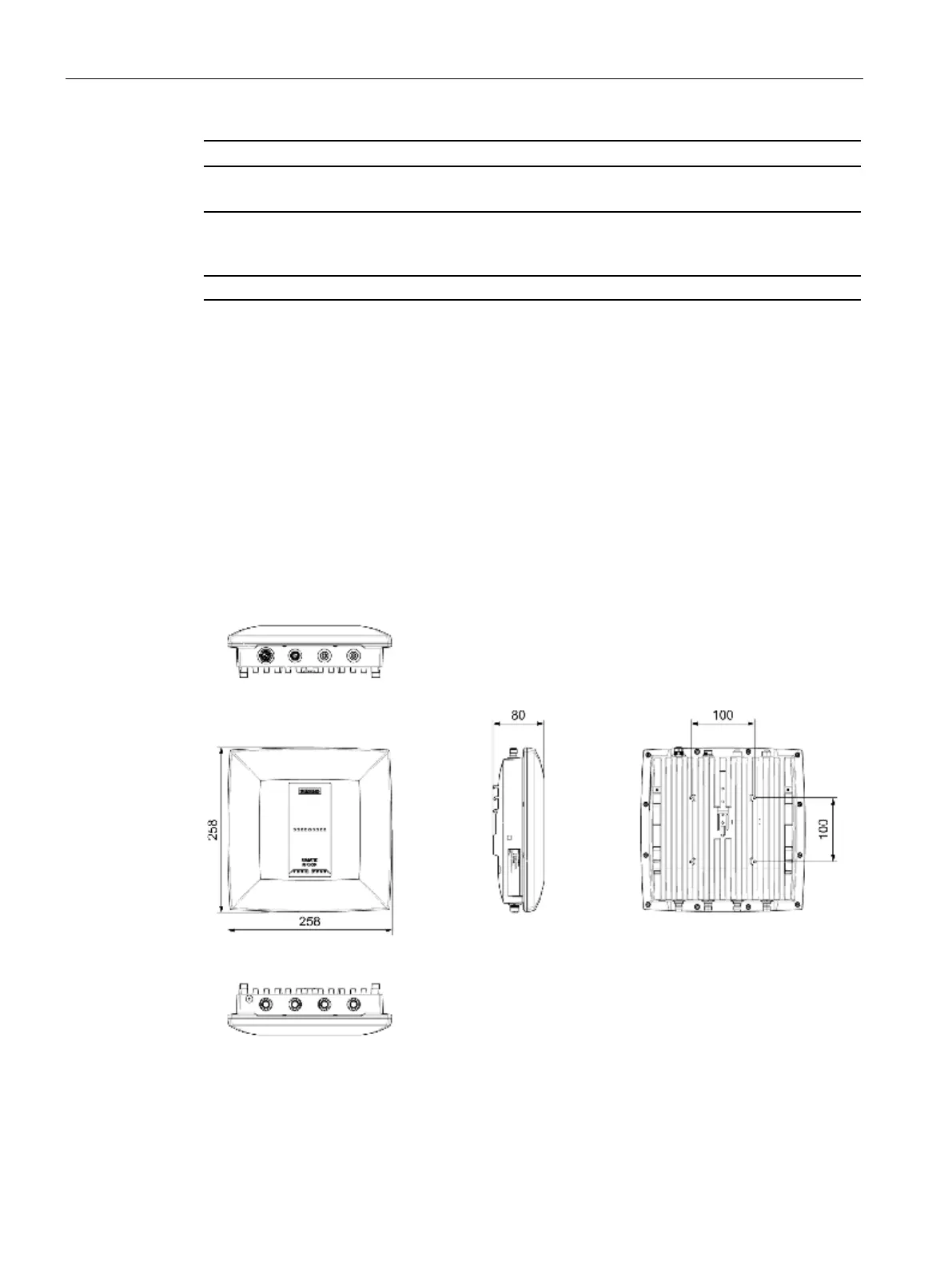

Figure 5-27 Dimension drawing RF680R
All dimensions in mm (± 0.5 mm tolerance)
