Transponder
7.12 SIMATIC RF640T
SIMATIC RF600
408 System Manual, 11/2018, J31069-D0171-U001-A21-7618
Delivery format
SIMATIC RF640T is supplied in the following form:
● 10 transponders per packaging unit
Minimum order quantity: 1 packaging unit (10 units)
7.12.3 Planning the use
7.12.3.1 Optimum antenna/transponder positioning with plane mounting of the transponder on
metal
Example of optimum antenna/transponder positioning

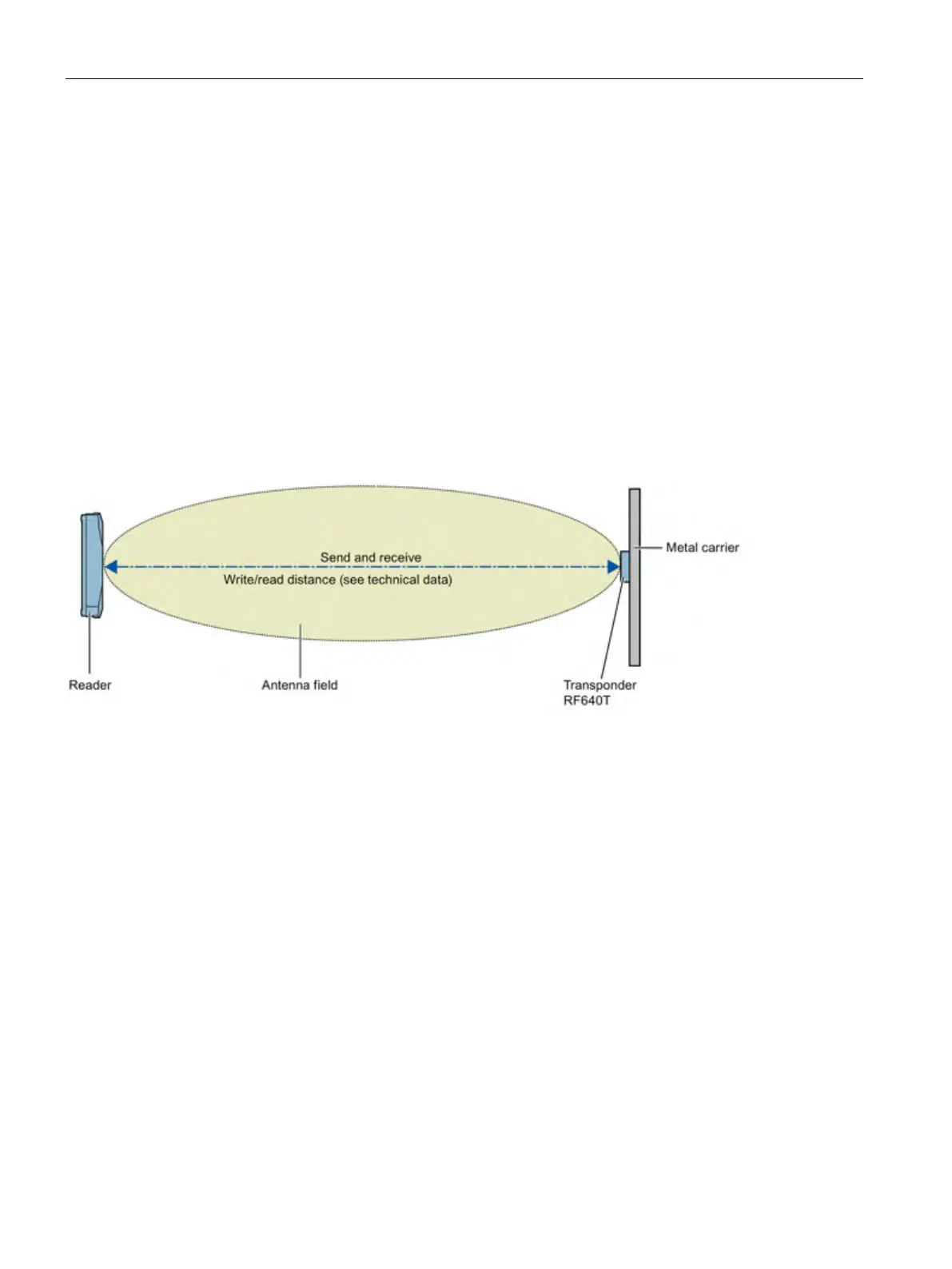

Figure 7-29 Example of optimum antenna/transponder positioning with RF600 readers and an RF600 antenna
Note that reflections may occur with large metal surfaces. These can be minimized by
changing the radiation angle.
