Antennas
6.8 SIMATIC RF680A
SIMATIC RF600
322 System Manual, 11/2018, J31069-D0171-U001-A21-7618

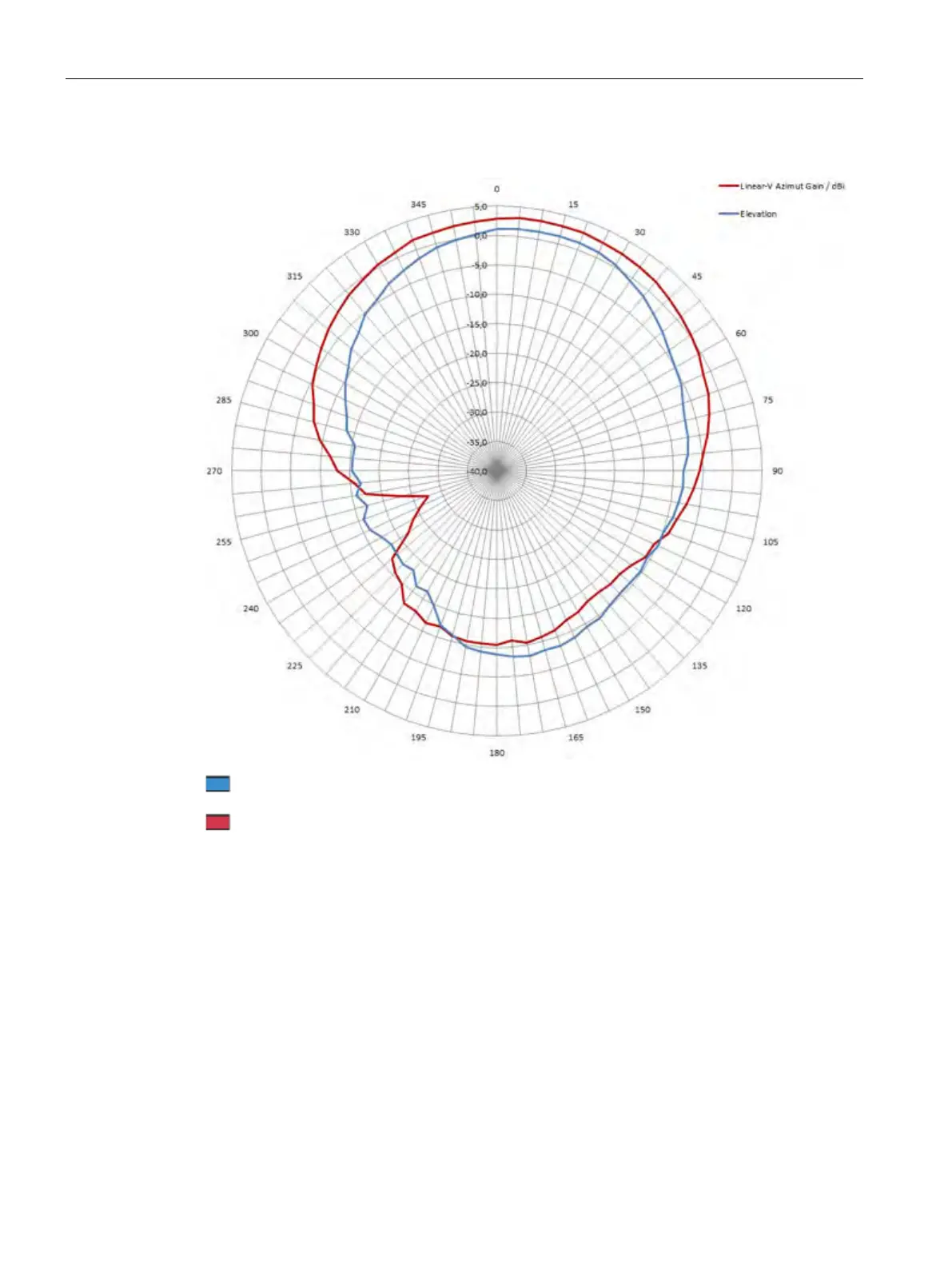

Radiation diagram (linear vertical) in the ETSI frequency band
Pattern of the vertical plane of the antenna
Pattern of the horizontal plane of the antenna
Figure 6-58 The RF680A directional radiation pattern in the ETSI frequency band, axis of symmetry
of the antenna, and polarization axis of the transponder are aligned vertically
