10.3 Reader and antenna holders
SIMATIC RF600
482 System Manual, 11/2018, J31069-D0171-U001-A21-7618
4. Mount the antenna mounting plate (C) into the articulated joint (B) and fasten it with the
help of screws
② to the articulated joint (B).
5. Align the SIMATIC antenna holder by sliding the setting angle on the articulated joint (B)
and tighten all the screws.

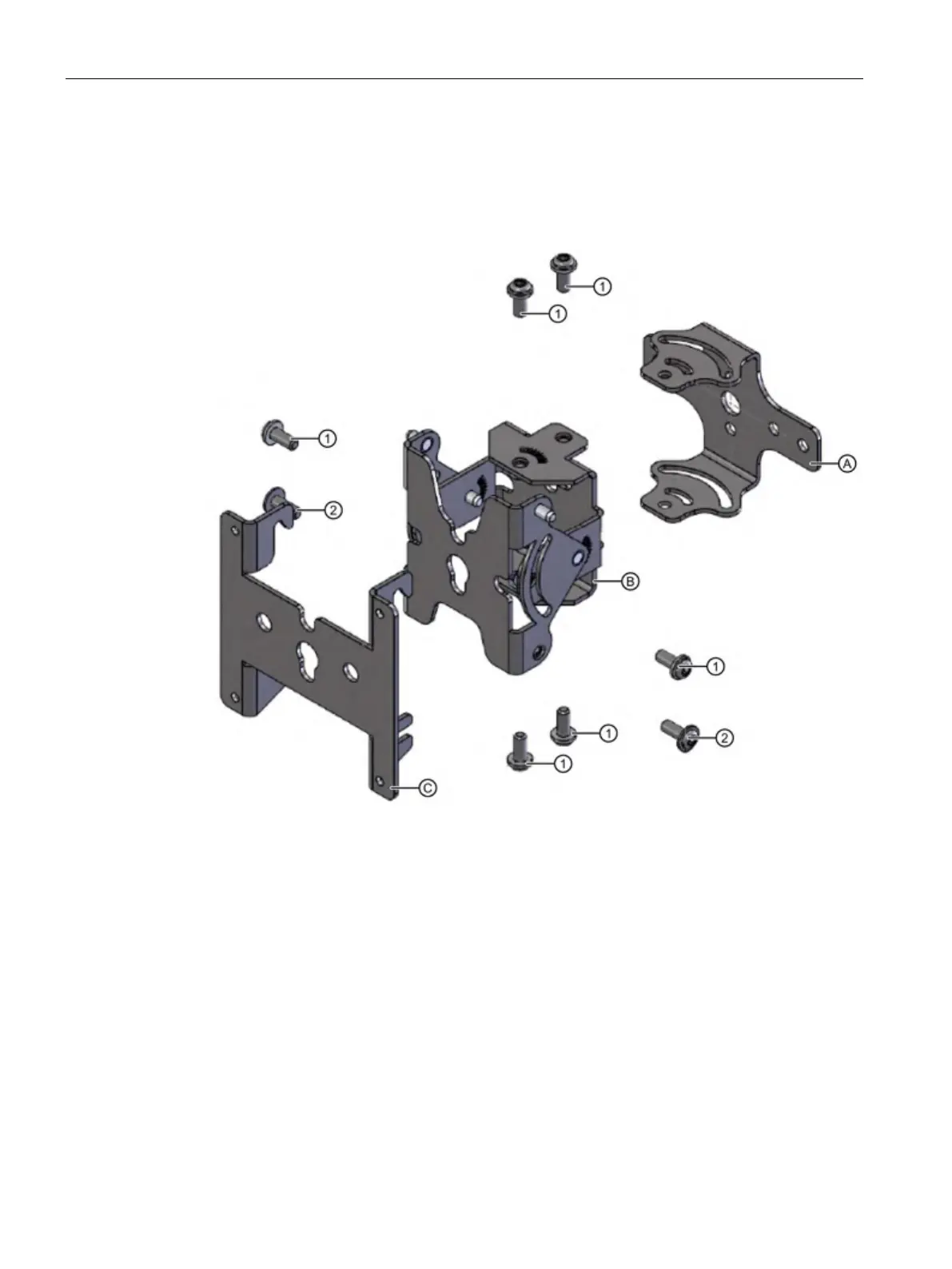

Figure 10-4 Installing the SIMATIC antenna holder
