Configuration

4.17 Creating telecontrol connections for the ST7 communication

CP 1243-8 IRC

124 Operating Instructions, 02/2018, C79000-G8976-C385-03

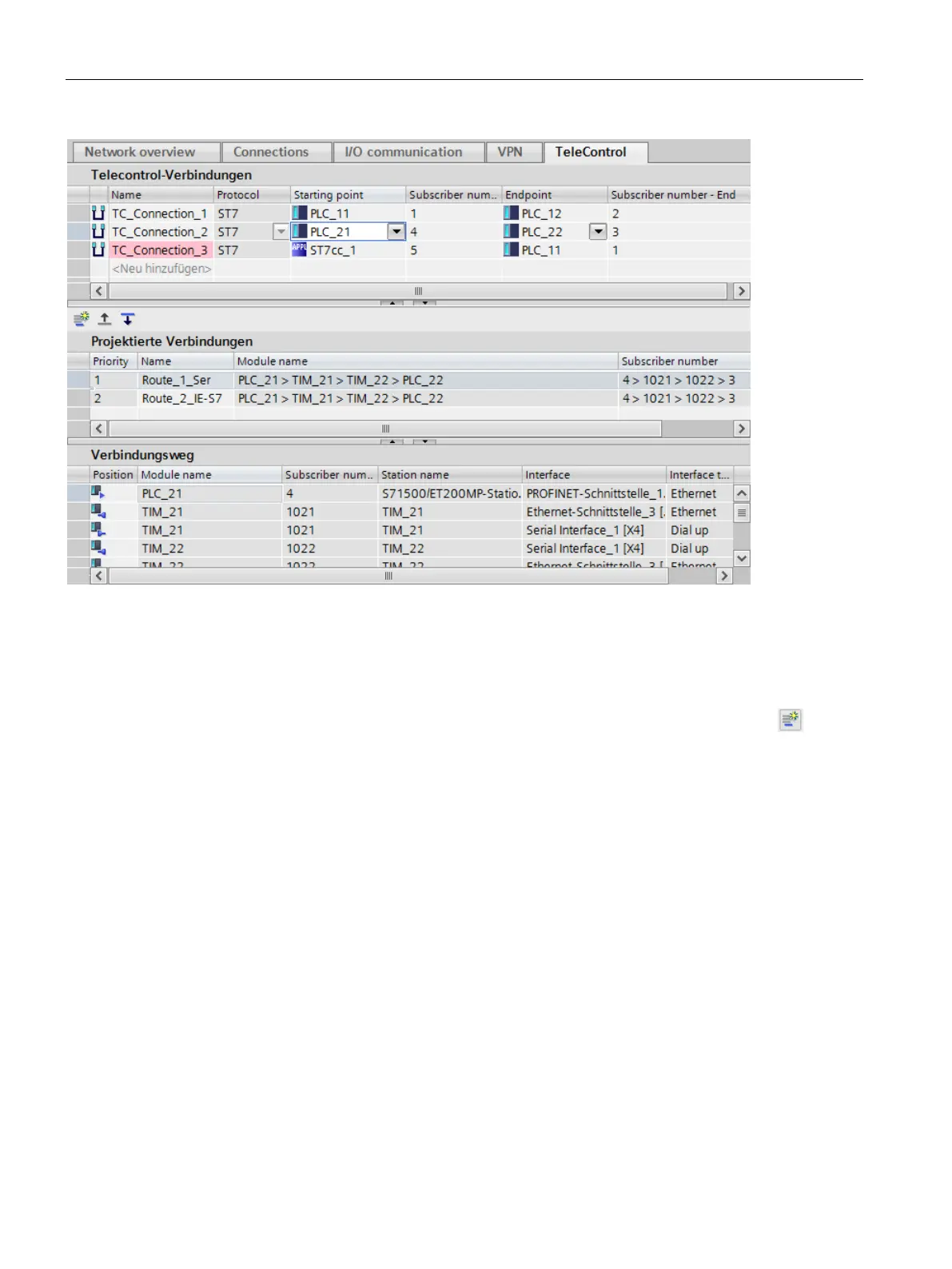

Figure 4-6 "Network data" editor, "Telecontrol" tab

Specification of the connection sequence

Then specify the connection sequence of the created telecontrol connection.

1. Above the second table "Configured connection paths" click the paths symbol

The dialog "Add connection paths" opens and the possible connection path are searched

for.

2. Select one of the possible connection paths in the top table.

The connection path(s) are shown with details in the second table.

– If several connections are displayed in the upper table, you can select one or two

redundant connections.

– If no connection is displayed in the upper table, there is a configuration error in the

corresponding stations or networks.

In this case, close the dialog with the "Close" button and complete the configration.
