Configuration
4.17 Creating telecontrol connections for the ST7 communication
CP 1243-8 IRC
Operating Instructions, 02/2018, C79000-G8976-C385-03
125
3. If you want to choose the selected connection path as a "configured connection" click on
"Add".
"Information" in the lower part of the dialog shows whether the connection was added or it
is already configured.
4. Close the dialog with the "Close" button if the configured connections correspond to the
demands of the project.
The connection details of every configured connection are displayed in the lower table
"Connection path".
The "Configured connection paths" and "Connection path" tables
"Configured connection paths" table
This table shows the configured connections (connection paths) of a telecontrol connection.

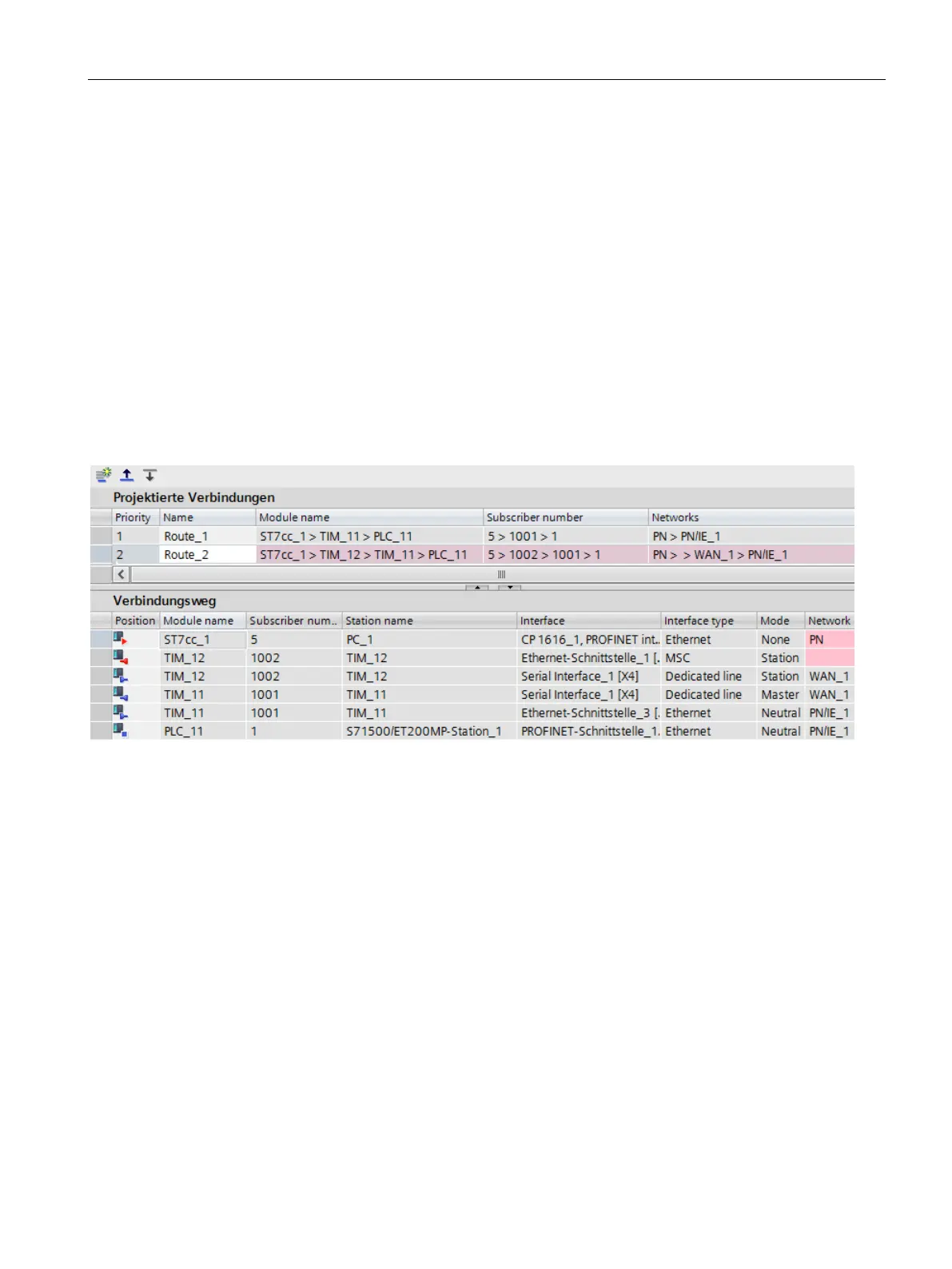

Figure 4-7 Redundant connection with incorrectly configured connection path (Route_2)
Connections shown on a red background are invalid.
In the example the PC station was connected via the PC CP to the MSC network between
TIM_11 and TIM_12 which is not allowed.
When checking the configured connections. the "Connection path" table supports you.
For every configured connection, the detailed connection path is shown here.
The "Position" column shows a station symbol with a symbol for the connection point
(starting point, node, endpoint). Based on the color of the symbols for the connection
endpoint you can recognize connections that are not permitted.
● Blue symbols for the connection point: Valid connections
● Red symbols for the connection point: Invalid connections
