STEP 7 V5 configuration of the proxy
D.4 Exporting configuration data
CP 1243-8 IRC
222 Operating Instructions, 02/2018, C79000-G8976-C385-03
3. Open the menu "SINAUT" > "SDB display".

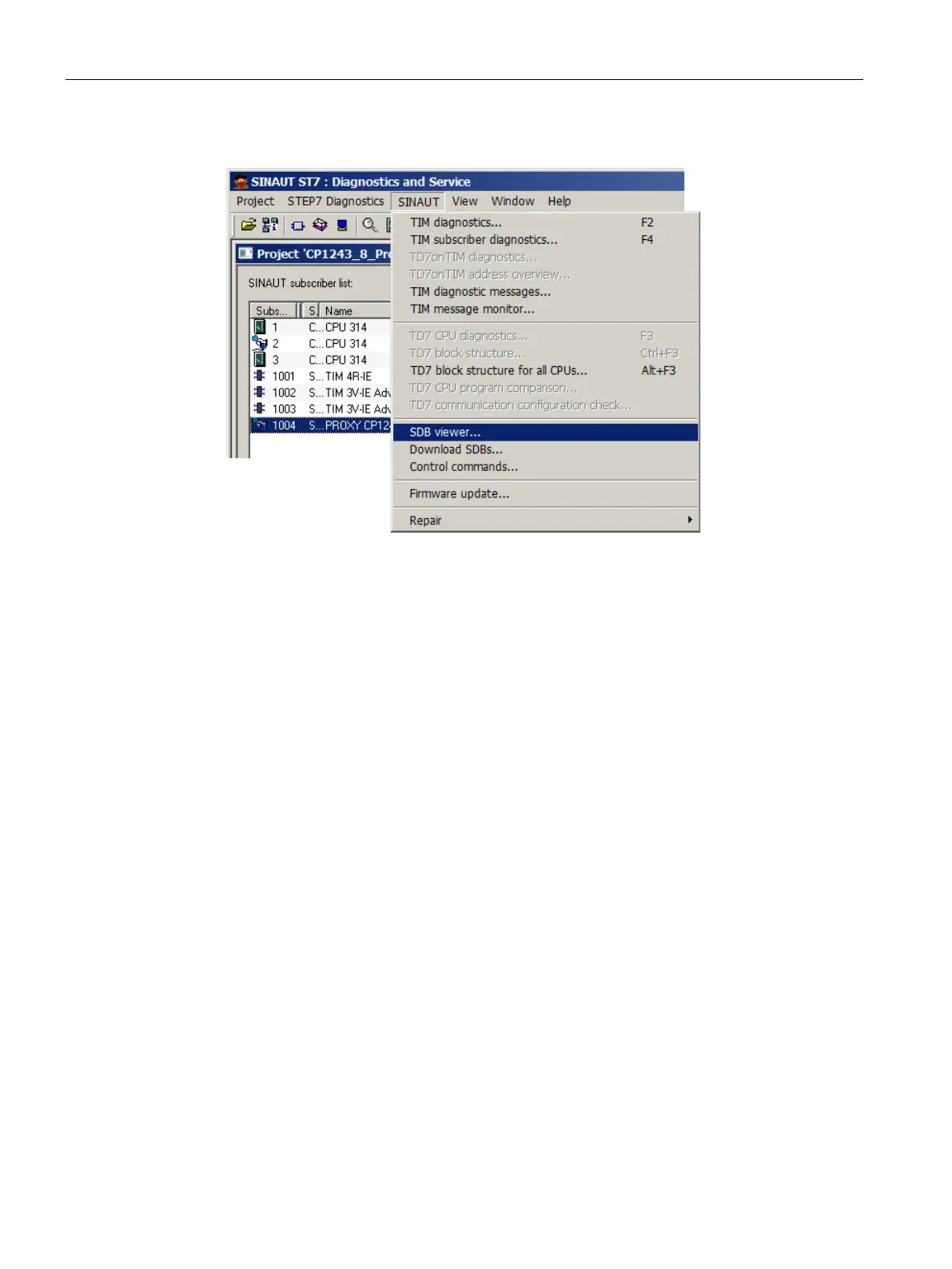

Figure D-7 Opening the "SDB display" dialog
The "SDB display" dialog opens.
With the drop-down list box "System data blocks" you can display the contents of the
individual SDBs. This is however not relevant for exporting the configuration data.
