STEP 7 V5 configuration of the proxy
D.4 Exporting configuration data
CP 1243-8 IRC
Operating Instructions, 02/2018, C79000-G8976-C385-03
223
4. Click the "Save" button.
The "Save as" dialog opens.

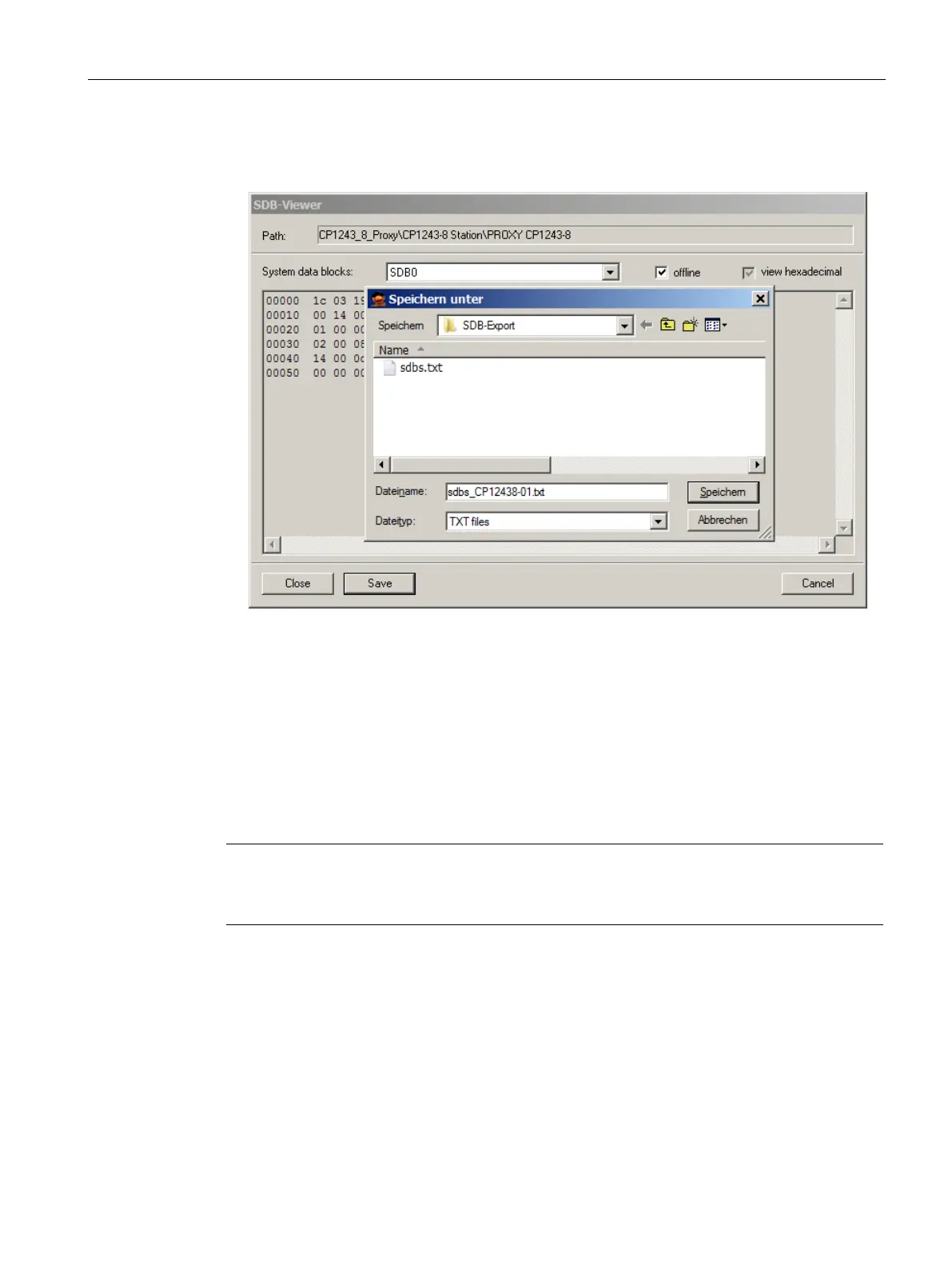

Figure D-8 Export of the configuration data of a proxy in the example as the file
"sdbs_CP12438-01.txt".
5. In the file directory of the configuration PC/PG, select a suitable directory for the file of the
configuration data.
6. Select a unique name for the file of the configuration data of this proxy.
Retain the default file type TXT file.
7. Click "Save".
A text file with the data of all SINAUT SDBs is saved in the file directory.
Note
TXT file for STEP 7 Basic
You require this exported text file later
for the configuration of the CP in STEP 7 Basic.

Siemens SIMATIC S7-1200 CP 1243-8 IRC Specifications

General

Product Type	Communication Processor
Series	SIMATIC S7-1200
Model	CP 1243-8 IRC
Data Transfer Rate	10/100 Mbps
Power Supply	24 V DC
Mounting	DIN rail
Dimensions (W x H x D)	45 mm x 100 mm x 75 mm
Digital Inputs Quantity	0
Digital Outputs Quantity	0
Supported Protocols	ISO-on-TCP
Interface	Ethernet
IP Addressing	Static, DHCP
Configuration	STEP 7 Basic/Professional
Operating Temperature	-20°C to +60°C
Weight	Approx. 200 g
