A.2
Fail
-
Safe CPU techn
ical specifications
S7
-1200 Functional Safety Manual
146
Manual, 02/2015, A5E03470344
-
AA
Ea
ch F
-

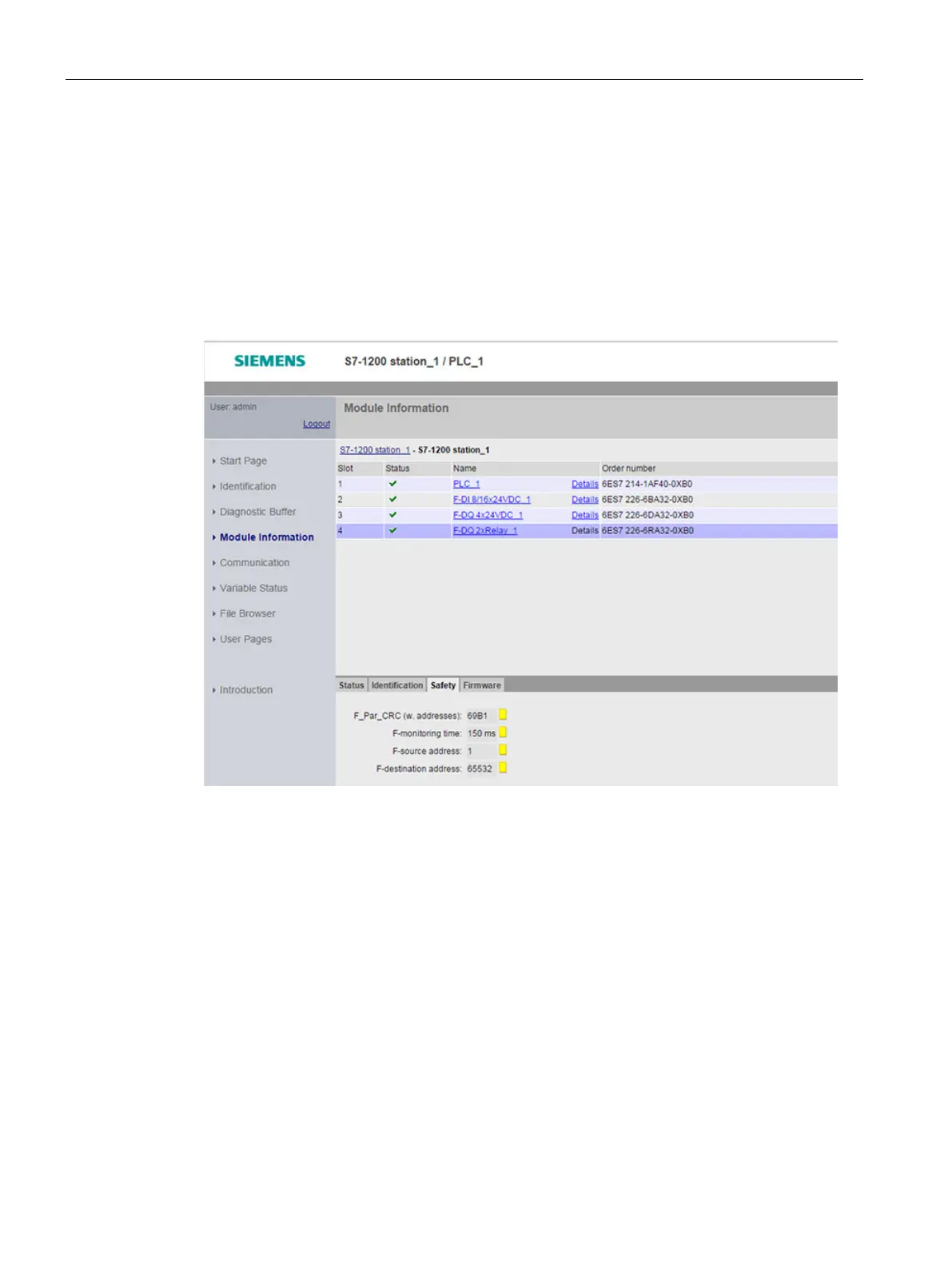

I/O shows you t
he following info
rmation on the "
Module informatio
n" page in the
"Safety" tab:
●
F_Par_CRC (
w addresses
) (F
-
paramet
er signature)
●
Safety mode
●
F-
monitoring time
●
F-
source address
●
F-
destination addr
ess
You do not have write
access to F
-
blo
cks.
145
147
