Getting started
2.3 Programming
S7-1200 Functional Safety Manual
Manual, 02/2015, A5E03470344-AA
61
Step 13: Downloading the complete safety program to the fail-safe CPU and
activating safety mode
In this step, you download the hardware configuration and the safety program to the fail-safe
CPU.
Click the "Play" button to start the animation file. Click the other control elements to rewind,
pause, go back, or go forward.

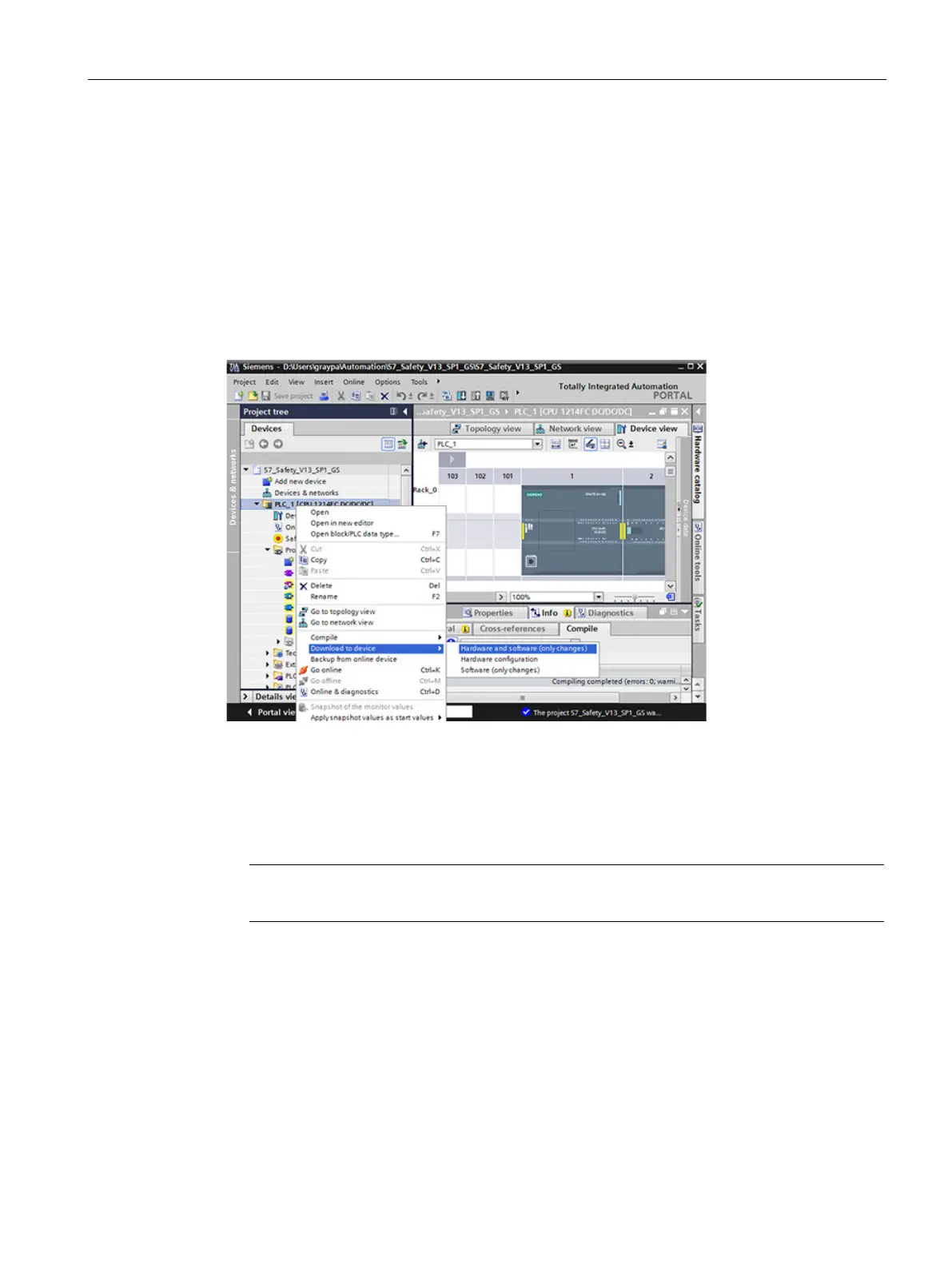

1. In the "Project tree", select the fail-safe CPU.
2. In the shortcut menu for the fail-safe CPU, select "Hardware and software (only
changes)". If an online connection to the fail-safe CPU does not yet exist, you will be
prompted to establish this connection.
3. Select "Consistent download" in the "Action" column in each case.
Note
To download the entire safety program, the fail
-safe CPU must be in STOP mode.
