Safe signal module (S
M) applications
3.1
Digital input applic
ations
S7
-1200 Functional Safety Manual
Manual, 02/2015, A5E03470344
-
AA
73
3.1.6
Applications 9 an
d 10: 1oo2 evaluat
ion of 4
-
wire non
-
eq
uivalent sensor cir
cuit
S0 and S8 can be dual con
tacts of a single se
nsor.

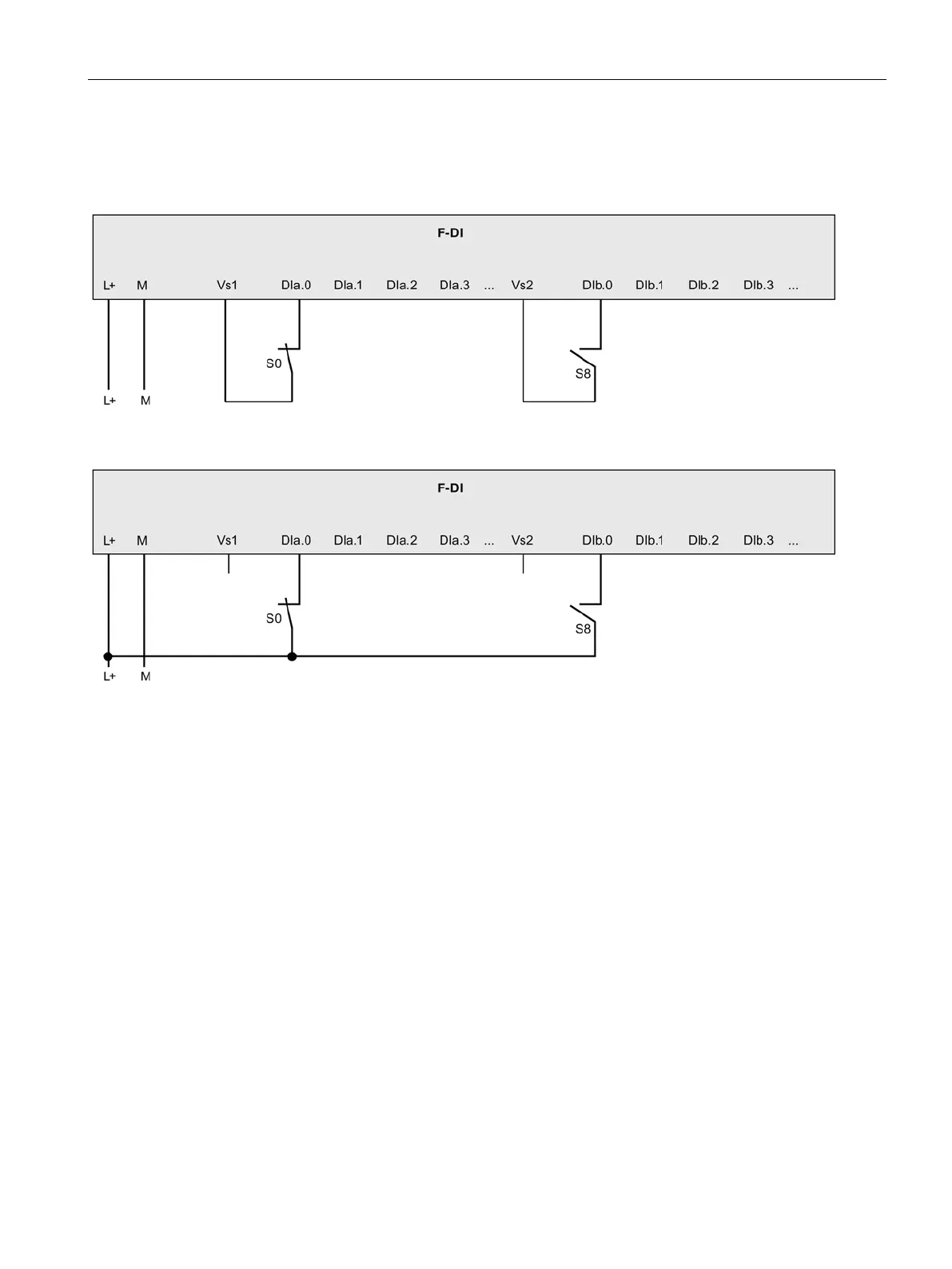

Figure
3-9
F-
DI Applicatio
n mode 9: Inter
nal sensor su
pply
Figure
3-
10
F-
DI Applicati
on mode 10: E
xternal sensor
supply
72
74
