Getting started
2.2 Configuring
S7-1200 Functional Safety Manual
Manual, 02/2015, A5E03470344-AA
31
Step 1: Configuring the S7-1200 CPU 1214FC or CPU 1215FC
In this step, you create a new project, add a fail-safe CPU, and assign parameters.
Click the "Play" button to start the animation file. Click the other control elements to rewind,
pause, go back, or go forward.
1. In the portal view of STEP 7 Safety, create a new project named
"S7_Safety_V13_SP1_GS"
2. Use "Add new device" to add a CPU 1214FC.
Note
Any of the four available fail
-safe CPUs (1214FC DC/DC/DC, 1214FC DC/DC/Relay,
15FC DC/DC/DC, 1215FC DC/DC/Relay) may be used in this example.

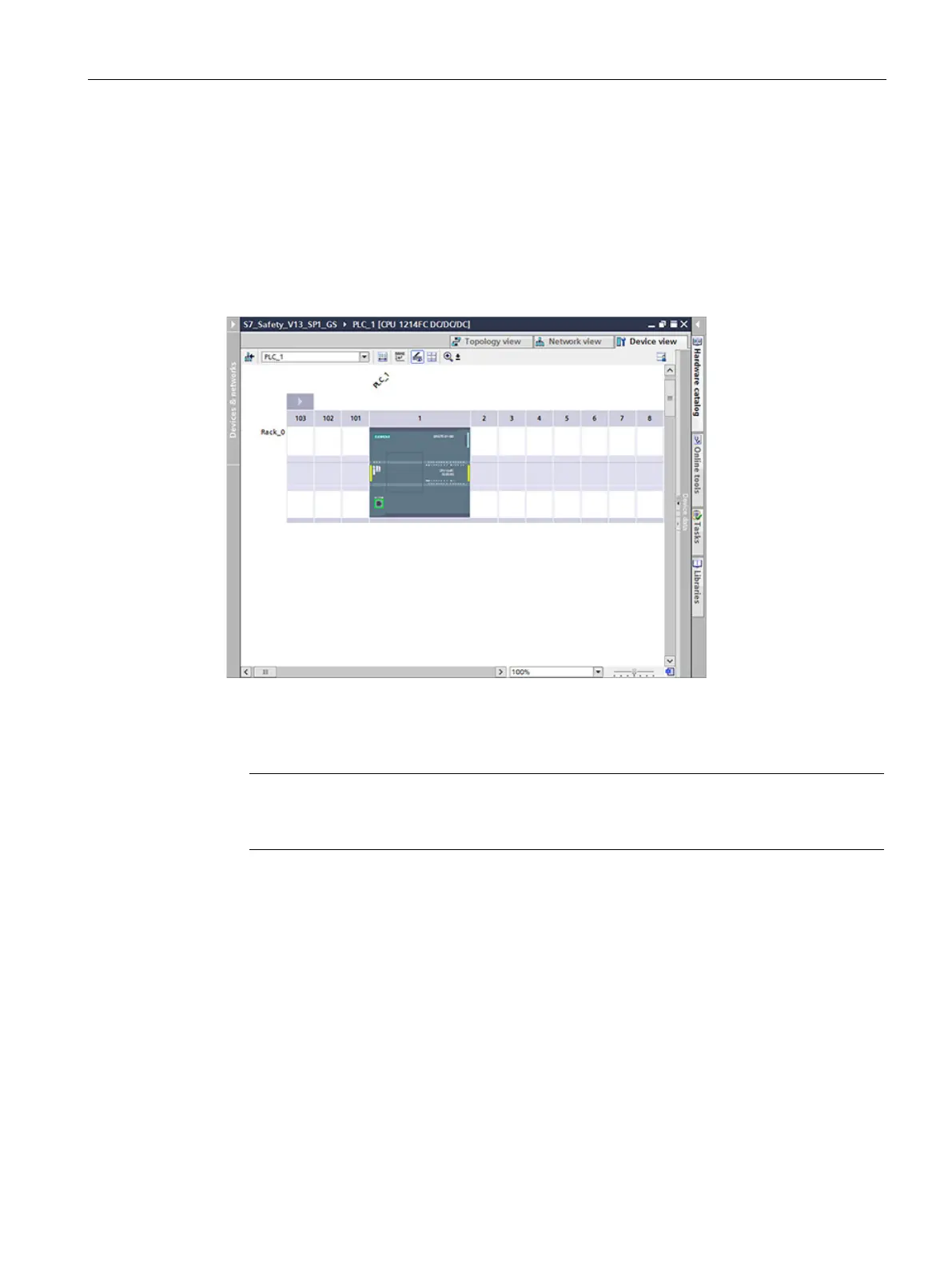

The Device View containing the CPU 1214FC opens.
To Next Page
