3-1
Hardware
and Installation User Manual
CHAPTER 3
INSTALLATION
3.1 INSTALLING THE BASE ASSEMBLIES
The
PLC, I/O controllers, power supply
, and I/O modules are mounted in Series
505 base assemblies. Three Series 505 base assembly models are currently
available:
PPX:505–6504, 4 I/O slots
PPX:505–6508, 8 I/O slots
PPX:505–6516, 16 I/O slots (19-inch rack compatible)
Each
base has slots reserved for the power supply and for the PLC, and 4, 8, or
16
I/O module slots, depending upon the base model. Refer to Figure 3-1.
Power
Supply
PPX:505–6504 4–Slot Base
Series 505 I/O
Series 505 I/O
Power
Supply
Power
Supply
Series 505 I/O
PPX:505–6516 16–Slot Base
PPX:505–6508 8–Slot Base
TI525/TI53
PLC
TI525/TI53 PLC
TI525/TI53 PLC

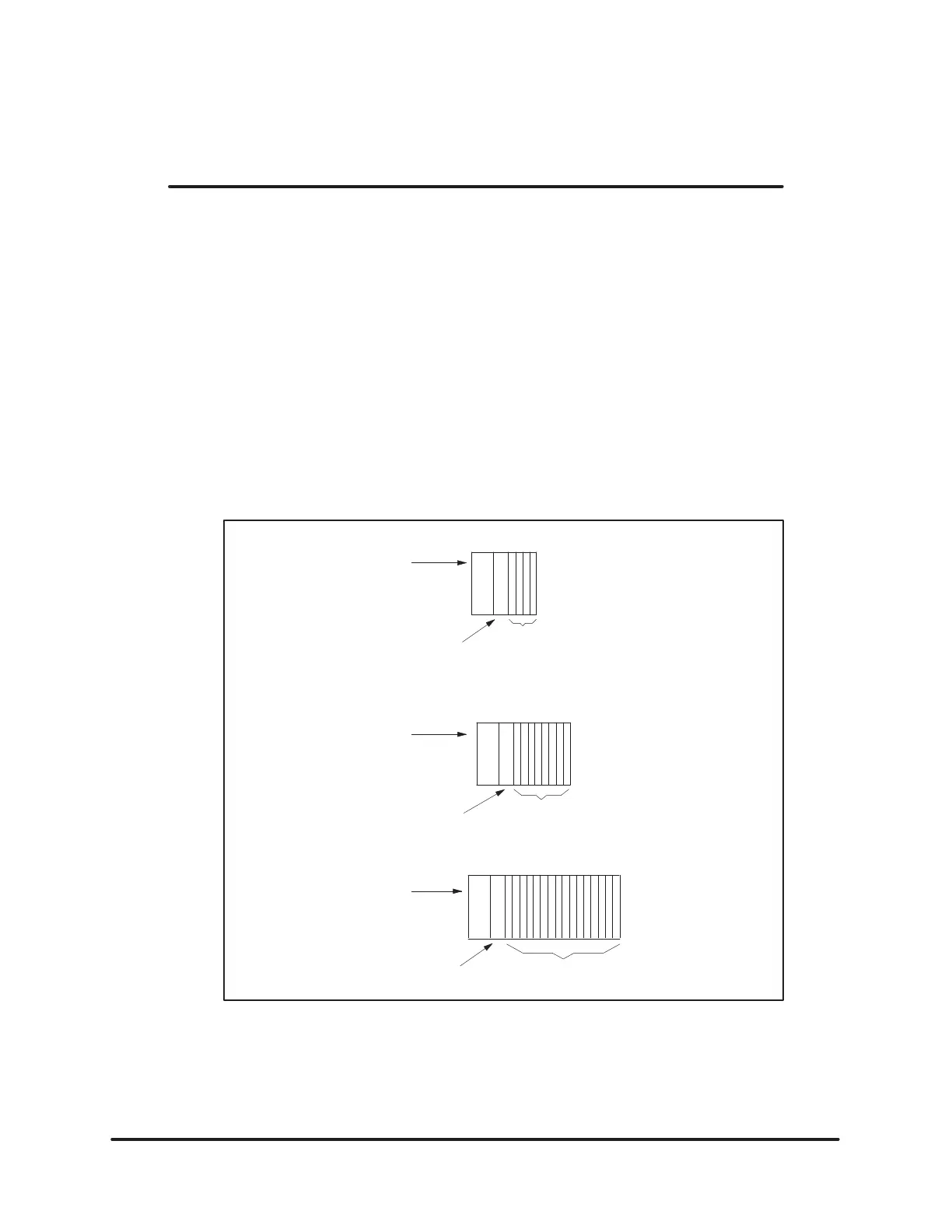

Figure 3-1 Series 505 Bases
