FEATURES
1-2
Hardware
and Installation User Manual
SIMATIC
TI525
PORT
1
RS232
525–1102
SIMATIC
TI535
RUN
BATT
GOOD
P/C GOOD
RUN
BATTER
Y GOOD
P/C GOOD
PORT
1
RS232
PORT
2
RS422
535–1212

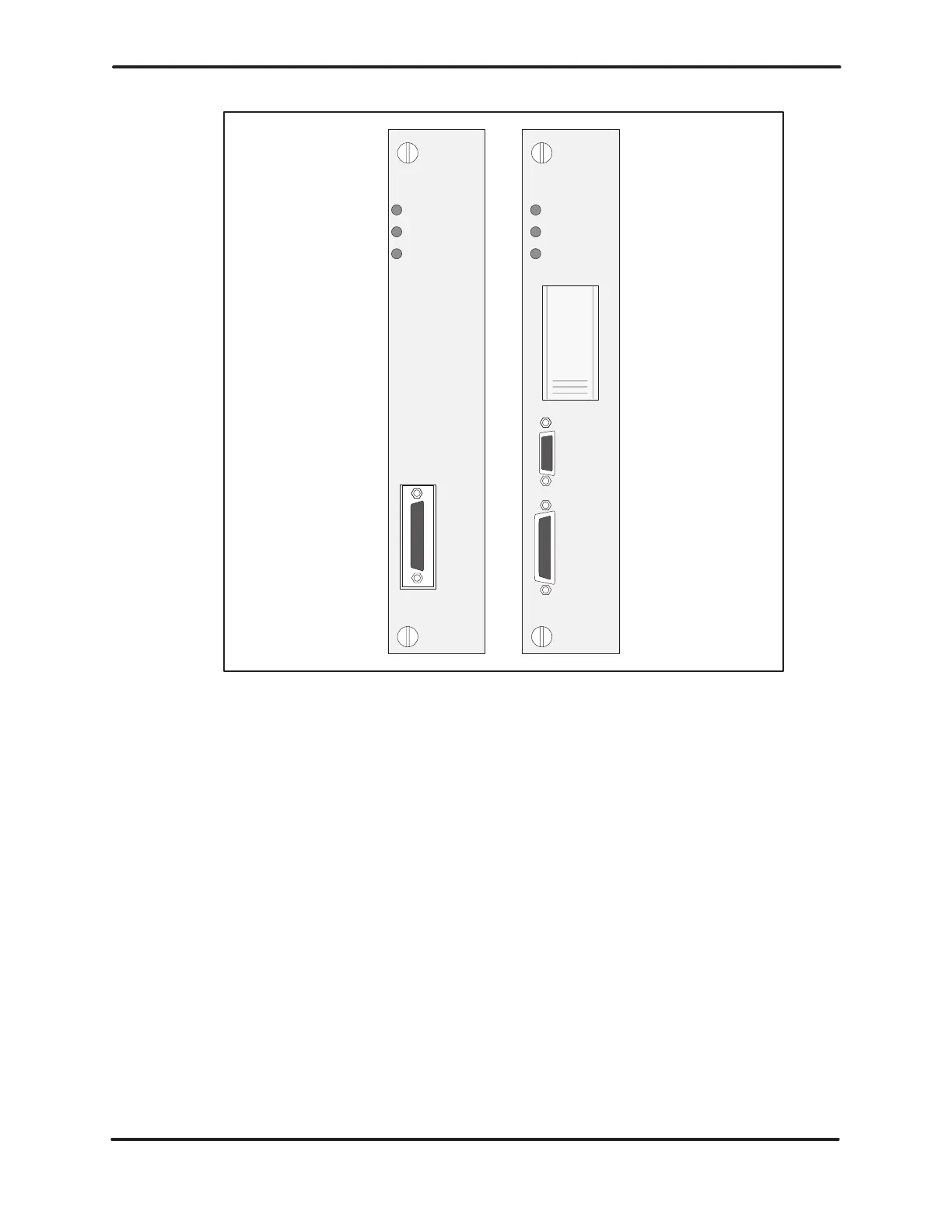

Figure 1-1
TI525 and TI535 Controllers
The
Series 505 product line is designed for use in small to medium applications
such
as discrete, word, and analog control. Components include the TI525 and
TI535
PLCs, shown in Figure 1-1, and the support devices
that provide operator
communication,
I/O control, and power
.
Operator communication may take place through any of the following devices:
IBM
PC/XT
Computer or a 100% compatible computer with TISOFT
V
ideo Programming Unit (VPU)
Handheld Intelligent T
erminal (HIT 500–1
101)
Control V
ision Unit (CVU)
