INSTALLATION
3-2
Hardware
and Installation User Manual
All
Series 505 bases may be panel-mounted.
The PPX:505–6516 base may also
be mounted in a 19-inch rack. The mounting brackets are included with the
Series
505 base assembly

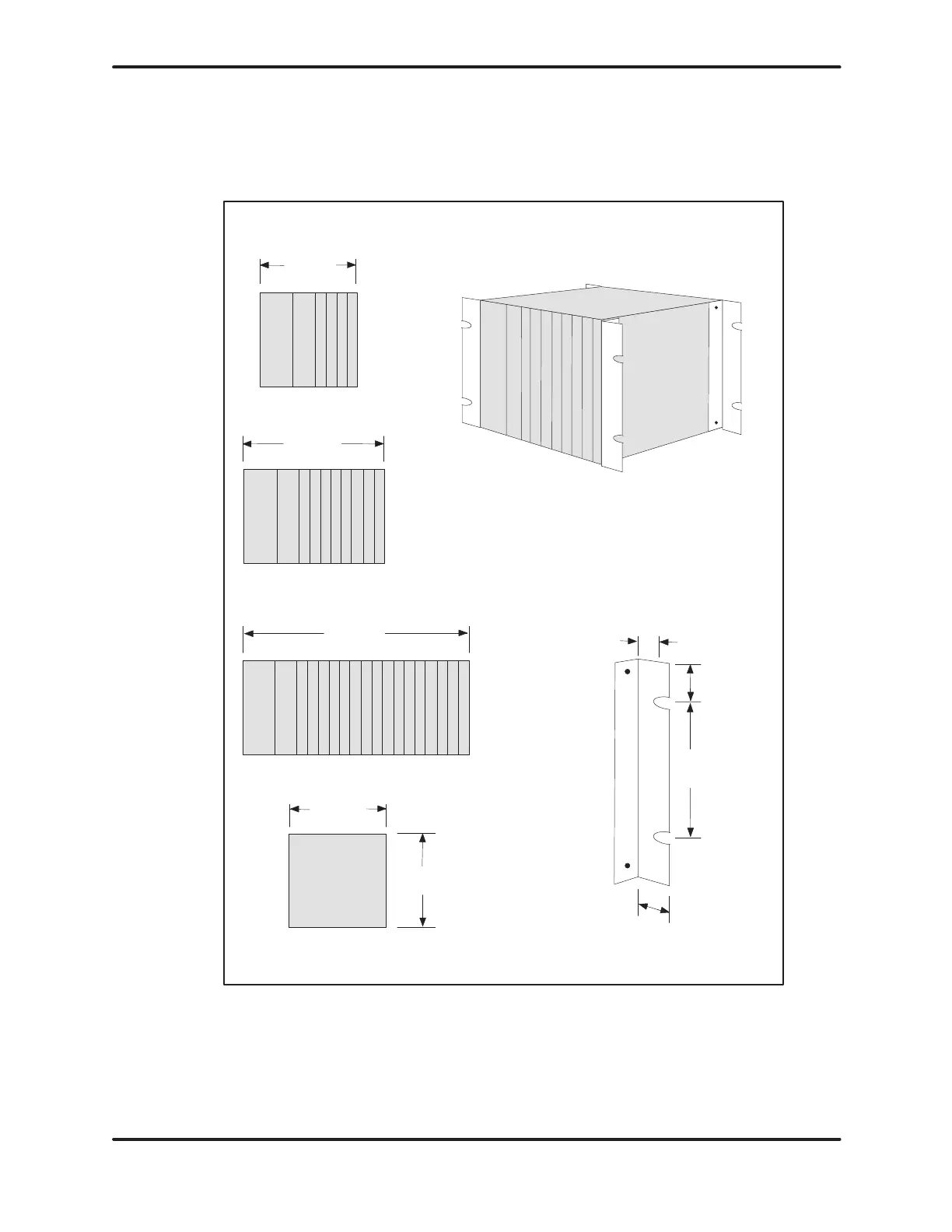

. Figure 3-2 shows the dimensions and screw positions.
438 mm
273 mm
195 mm
203 mm
All Models
Front view
Side V
iew
(7.69 in)
(10.75 in)
(17.25 in)
(7.99 in)
266 mm
(10.47 in)
22 mm
(0.87 in)
9 mm
(0.35 in)
191 mm
37.8 mm
(7.52 in)
(1.49 in)
PPX:505–6504
4-slot base
PPX:505–6508 8-slot base
PPX:505–6516 16-slot base
Brackets rear-mounted
for panel installation
(all models)
Brackets front-mounted
for rack installation
(PPX:505–6515 only)
Figure 3-2 Mounting Dimensions for the Series 505 Bases
