INSTALLATION
3-6
Hardware
and Installation User Manual
3.3.1 Setting
Port Baud Rate — TI525 Models

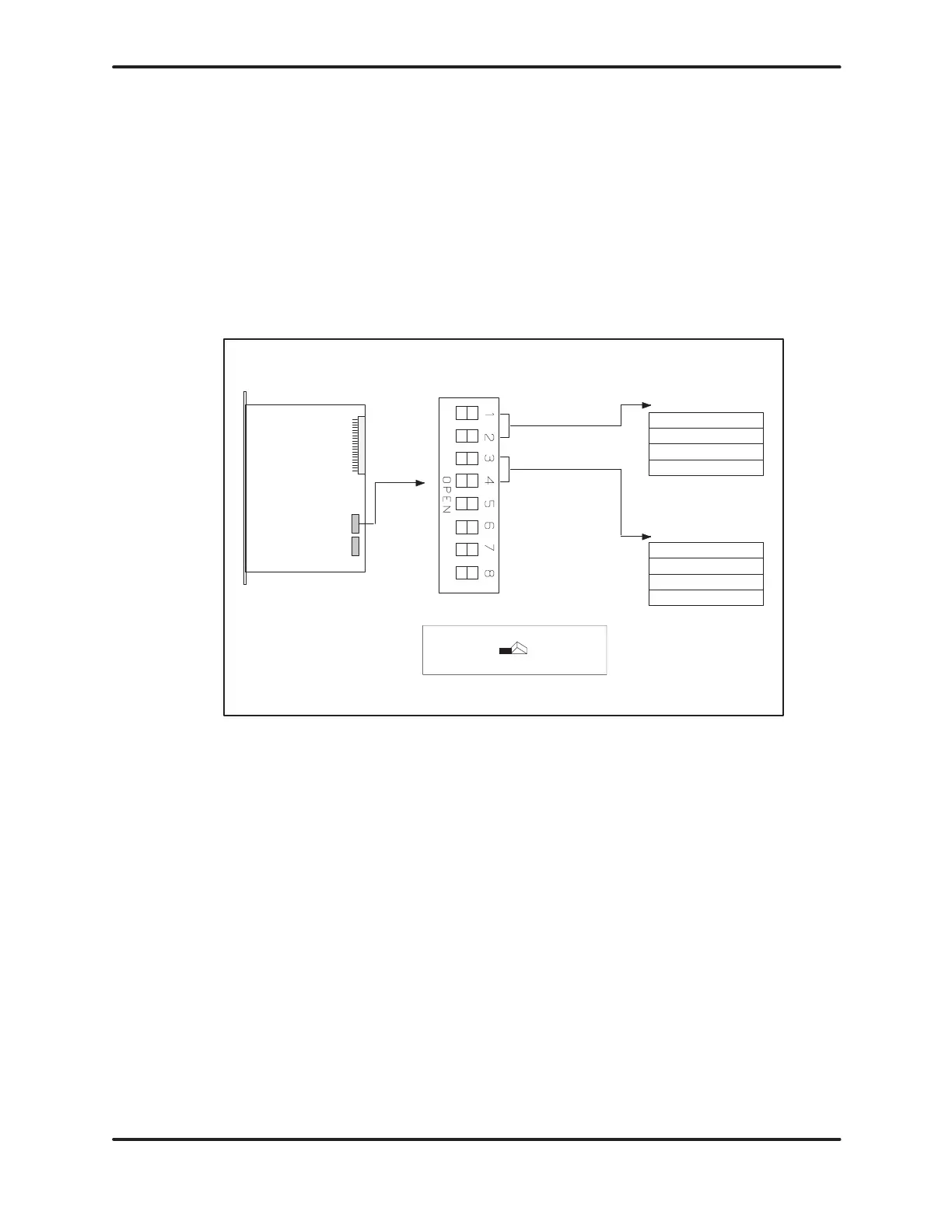

Figure 3-4
shows the baud rate switch assignments for the communication
ports.
Switches 1 and 2 on the first switch bank (DIP 1) set the baud rate for the
RS-232-C/423
port (Port 1). Switches 3 and 4 on DIP 1 set
the baud rate for the
RS-422
port (Port 2). Switch position does not matter if a device is not connected
to
the port.
You need to set only switches 1 and 2 for PPX:525–1102 and PPX:505–1104
models
which have only an RS-232-C/RS-423 port.
DIP
1
Position not
selected
Position
selected
ONOFF
RS-232-C/423
Baud rate
RS-422
Baud rate
34Baud
9600
2400
1200
300
ON ON
OFF ON
ON OFF
OFF OFF
12Baud
9600
2400
1200
300
ON ON
OFF ON
ON OFF
OFF OFF
Push
down
Switch position
Switch position
Figure 3-4 Switch Settings — TI525 RS-232-C/423 and RS-422
Ports

Switches
5, 6, 7, and 8 on the first bank (DIP 1) are reserved for
factory
testing and should all be turned ON.
