Siemens SIMATIC TI525 - System with Local I;O Only

INSTALLATION
3-20
Hardware and Installation User Manual
I/O modules are grouped into local or distributed I/O categories depending upon
their physical location. The local I/O comprises those modules installed in the
same base assembly as the PLC — the primary base.
A system having local I/O only consists of a single base assembly comprising a
maximum of two logical bases. A 16-slot base assembly contains two logical
bases, numbered 0 and 1 from left to right. The 8-slot and 4-slot base assemblies
each contain one logical base, numbered 0. See Figure 3-16.

Bases 0 and 1 are always on the local base. Therefore, any
distributed base will always be numbered greater than 1.
If your system has local I/O only , you need to install the power supply , PLC and
I/O modules in a single base assembly. See the installation instructions later in
this chapter .
Power
4-Slot base
supply
8-Slot base
16-Slot base
Series 505
Logical
base 0
Logical
base 1
I/O modules
TI525/TI535 PLC

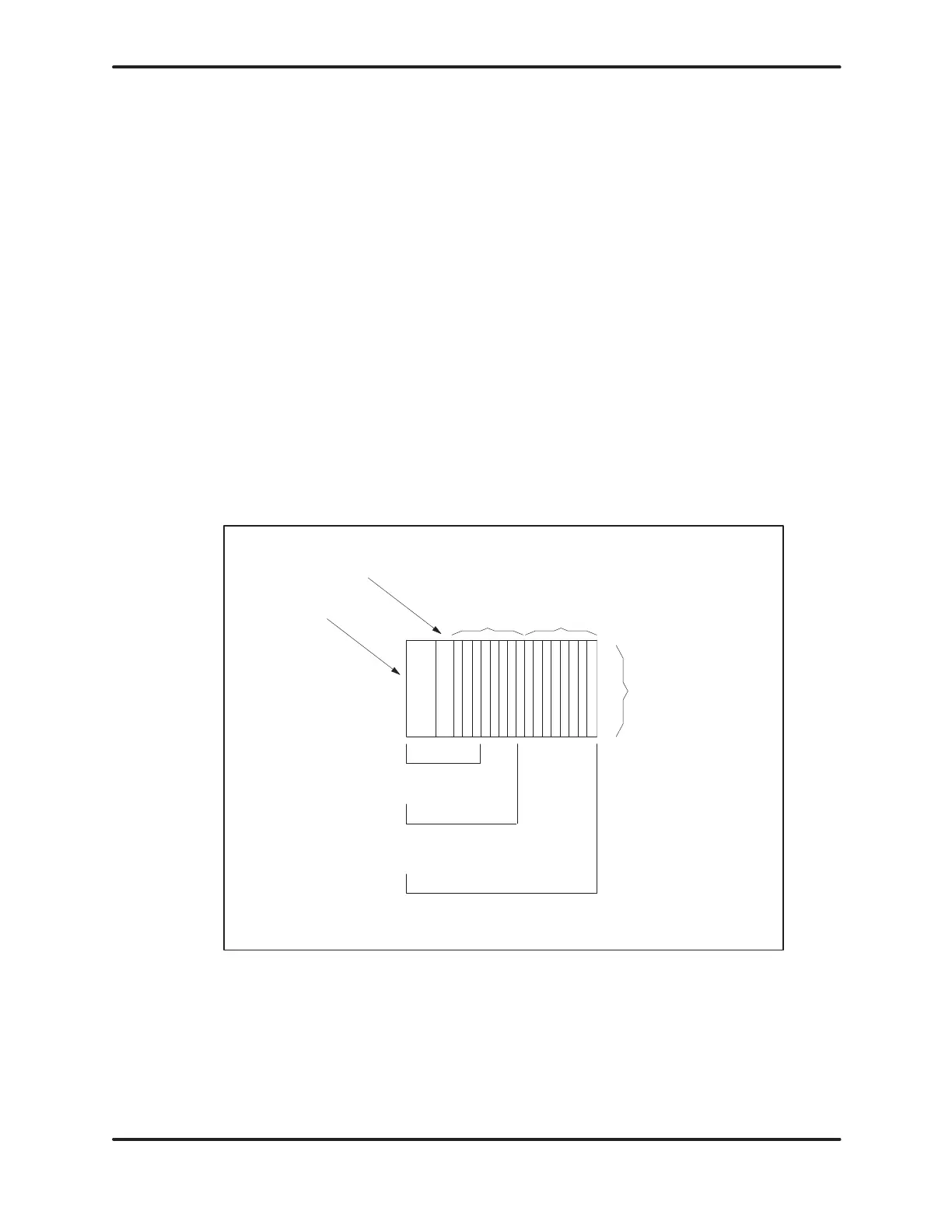

Figure 3-16 System With Local I/O Only
