Safety and commissioning information for Ex areas
14.1 Motor protection functions (overload protection, thermistor protection)
SIMOCODE pro
310 System Manual, 05/2019, A5E40507475002A/RS-AD/004
Test phases
● Phase 1: Hardware test / lamp test (0 to 2 s):
The hardware (e.g. the thermistor electronics) is tested, all LEDs and displays are
activated, including the lamp control. Contactor controls remain unchanged.
● Phase 2: Hardware test results (2 s to 5 s):
If there is a fault, the "HW fault basic unit" fault is triggered.
If there is no fault:
– the "GEN. FAULT" LED flashes if no main current is flowing
– the "GEN. FAULT" LED flickers; if main current is flowing in all three phases
(exception: with a "1-phase load" in one phase).
● Phase 3: Relay test (> 5 s):
If testing is carried out with tripping, the contactor controls are deactivated.
The contactor control can only be shut down by means of the "Test 1" function block and in
the "Local 1-3" operating mode, using the "TEST / RESET" button on the basic
device / operator panel.
The following table shows the test phases performed when the "TEST / RESET" button is
pressed for the required length of time:

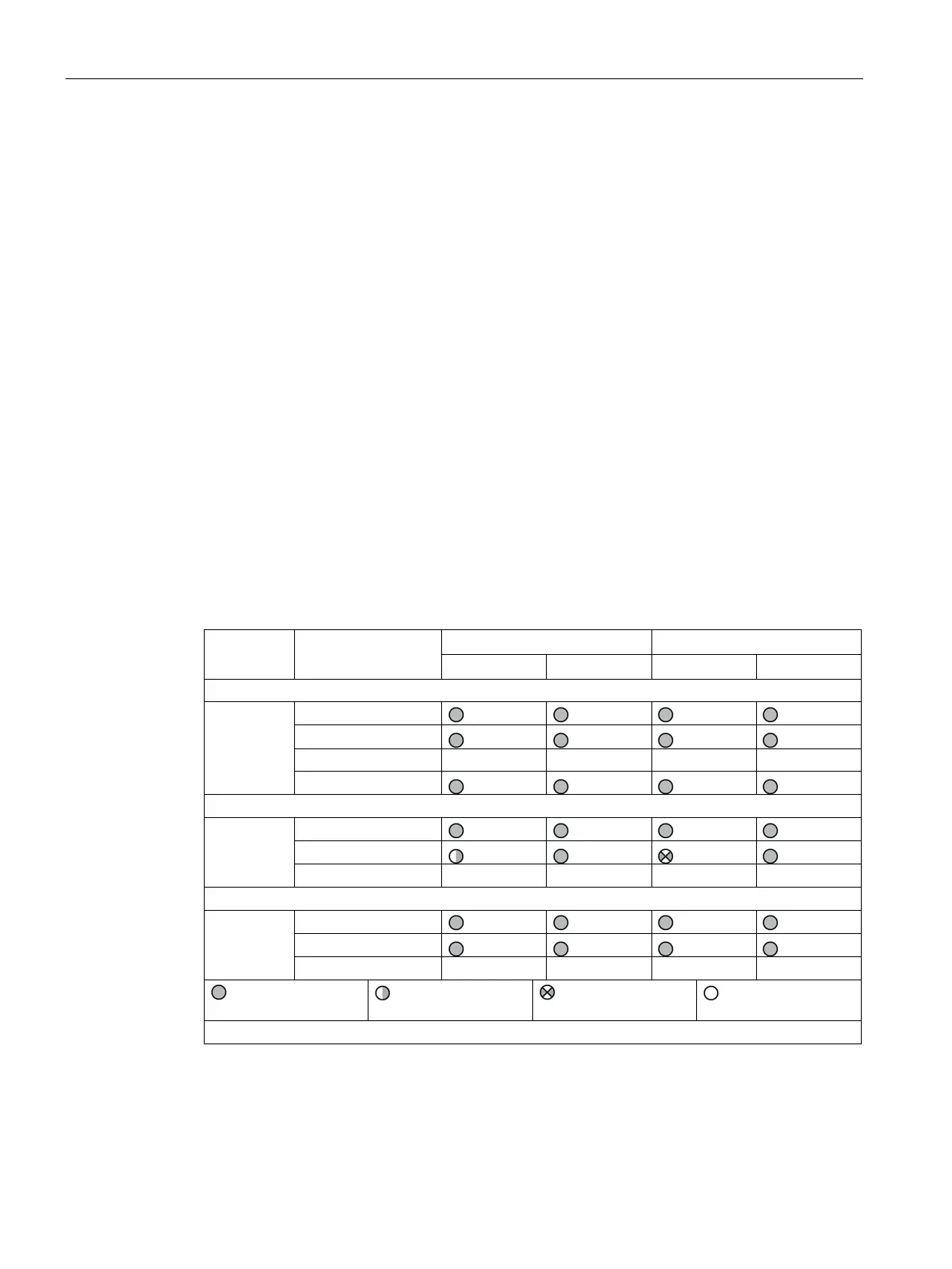

Table 14- 3 States of the status LEDs / contactor controls during testing
Hardware test / lamp test
< 2 s
"GEN.FAULT" LED
*)
Results of the hardware test / lamp test
2 to 5 s
> 5 s
LED lighted /
LED flashing LED flickering LED off
*) "Fault" only displayed after 2 s
