Description of system components
8.7 Spectrum of the expansion modules
SIMOCODE pro
146 System Manual, 05/2019, A5E40507475002A/RS-AD/004
8.7 Spectrum of the expansion modules
Expansion modules are provided as optional additions for the SIMOCODE pro S and pro V
device series. The following expansion modules are available:
● Digital modules (DM) (Page 147)
● Fail-safe digital module Local (DM-F Local) (Page 148)
● PROFIsafe fail-safe digital module (DM-F PROFIsafe) (Page 148)
● Analog module (AM) (Page 151)
● Ground-fault module (EM) (Page 152)
● Temperature module (TM) (Page 153)
● Multifunction module (Page 154) (for the SIMOCODE pro S device series)
All expansion modules have an enclosure width of 22.5 mm or 45 mm. They are equipped
with 2 system interfaces (incoming/outgoing) and removable terminals on the front panel.
The expansion module is connected, for example, to the system interface of the basic unit
via the first system interface using a connecting cable. For example, further expansion
modules can be connected via the second system interface or the operator panel.
All expansion modules are suitable for DIN rail mounting or can be fastened directly to a
mounting plate using additional push-in lugs.

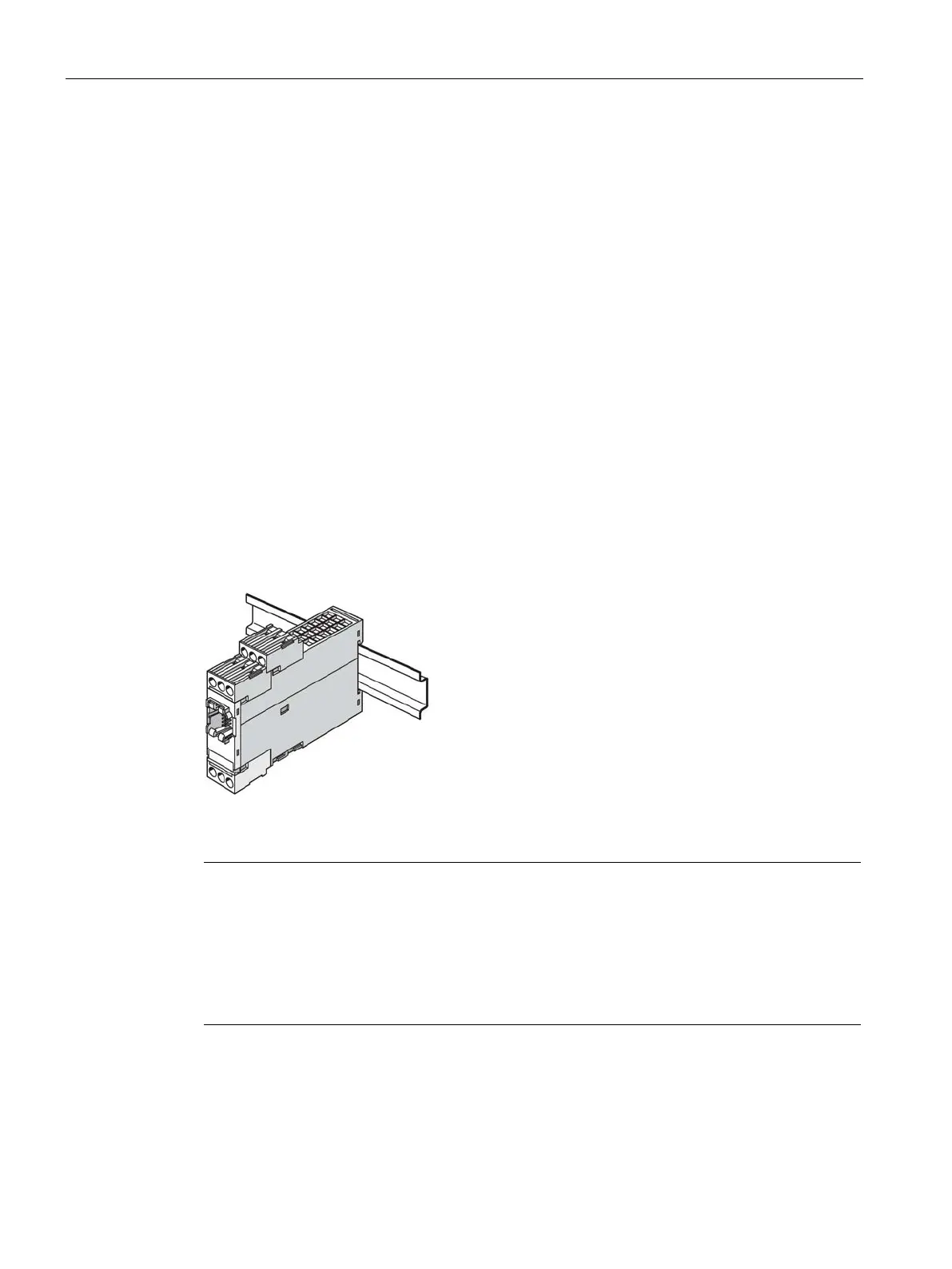

Figure 8-33 Expansion module
Note
When an operator panel with display and/or a decoupling module is used, you may have to
take further restrictions into consideration concerning the number of expansion
modules
connectable per basic unit.
Configuration information for SIMOCODE pro V when using an older basic
(Page 155) and Configuration notes for use of a SIMOCODE pro V MR and
SIMOCODE pro V EIP basic unit
(Page 158)
