Siemens SIMOTION C230-2 Equipment Manual

Commissioning
8-114
E Siemens AG, 2003 All rights reserved
SIMOTION C230-2, 04.2003 Edition
8.2 Inserting and changing the Micro Memory Card
Proceed as follows:
1. Switch off the power supply module.
2. Is a Micro Memory Card inserted? If yes: Then withdraw.
To facilitate the withdrawal of the Micro Memory Card, the module slot is
equipped with an ejector.
Press the ejector and withdraw the Micro Memory Card.
To eject the Micro Memory Card, use a small screwdriver or ball-point pen.
3. Insert the (“new”) Micro Memory Card with a slight pressure in the C230-2 mod-
ule slot until it latches. Take care that the sloping corner of the Micro Memory
Card is pointing towards the ejector (see Fig. 8-1).
4. Switch on the power supply module again.
Ejector for
Micro Memory Card

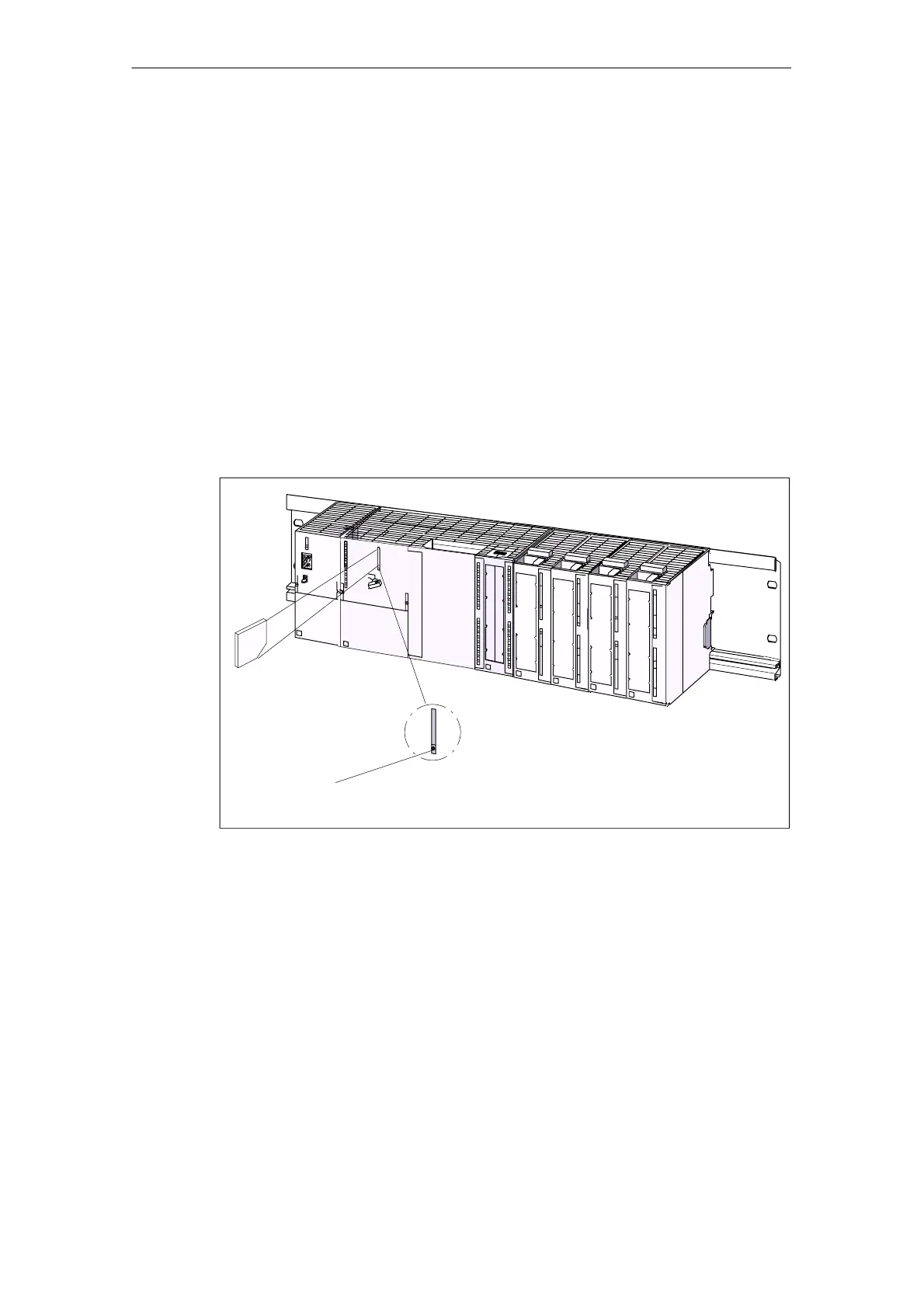

Fig. 8-1 Insert the Micro Memory Card into the C230-2
