Device Data
3-32
E Siemens AG, 2003 All rights reserved
SIMOTION C230-2, 04.2003 Edition
3.1.6 Analog drive interface
Connector to drive unit
Drive devices with a ("10 V) analog interface can be connected to the C230-2’s
X2 50-pole Sub-D socket.
In addition, the C230-2 provides one enable signal per axis.
Position of the connector

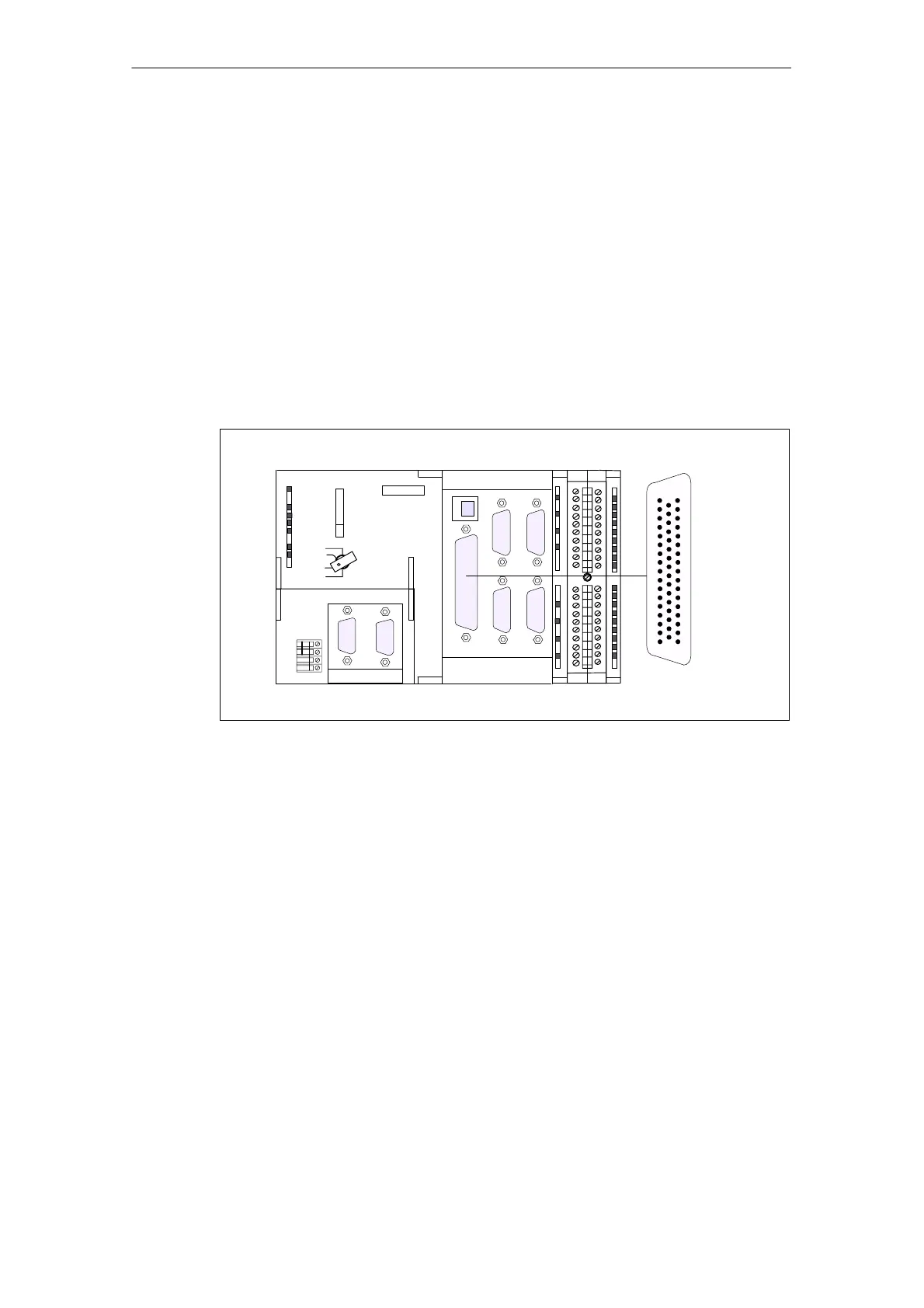

Fig. 3-5 shows the installation position and the designation of the connector on the
module.
X2
1
17
18
34
33
50
ANALOG OUT 1-4
STEPPER CTRL 1-4
X2
X3 X4
X6X5
X1
X9 DP2/MPIX8 DP1
C230-2
SIEMENS
X7
Fig. 3-5 Position of the X2 connector
