6.2 Wiring diagram - Overview
C230-2 with servo drive (analog connection)

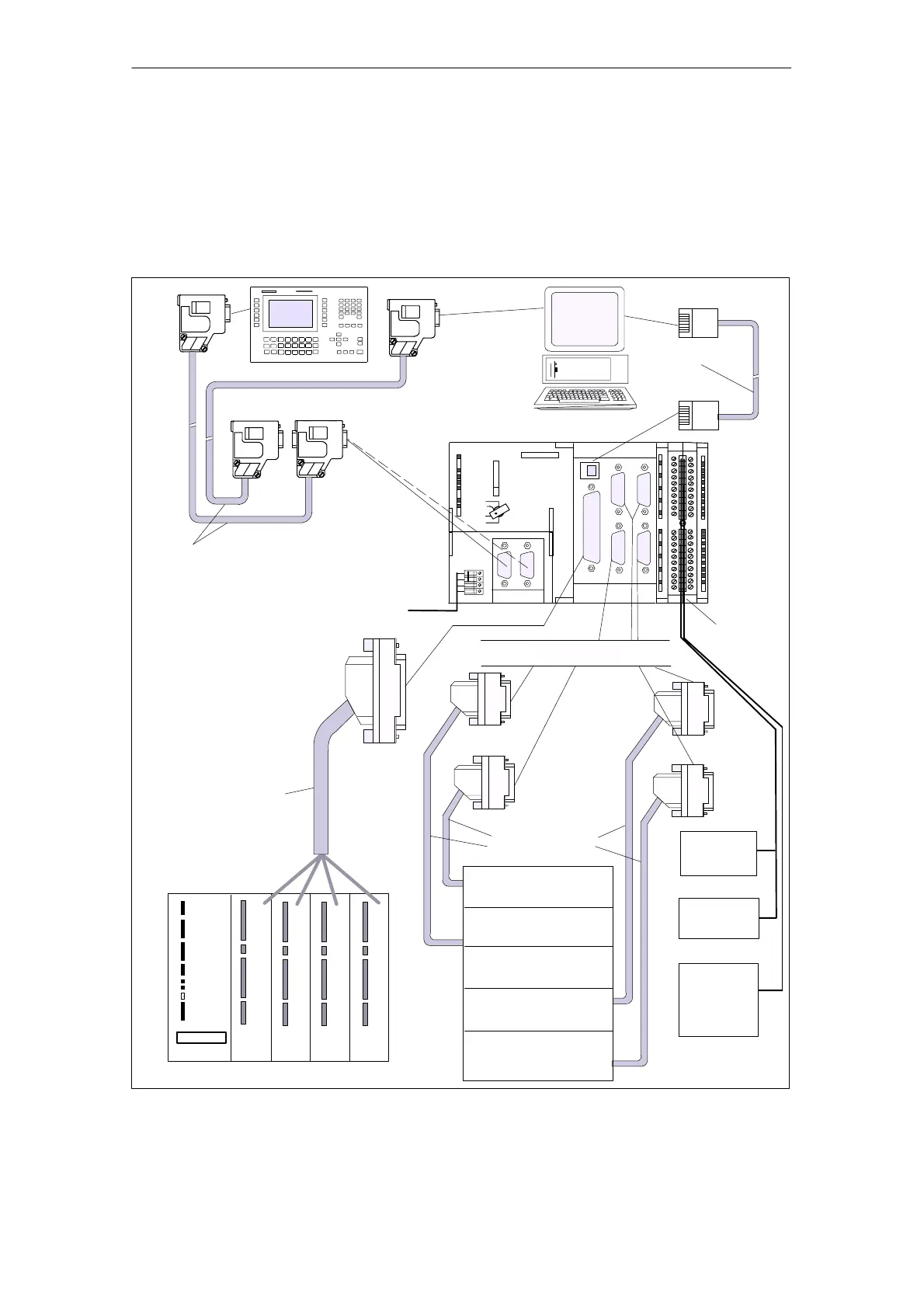

Fig. 6-1 shows how the individual components are connected to the C230-2 and
the servo drive (analog connection).
C230-2
FDD
FDD FDD
SIMODRIVE
Digital in-
puts, e.g.
measuring
input
E.g. incremental encoder
RS422
E.g. ROD 320 (built-in en-
coder in 1FT5 motor)
FDD
Setpoint cable
Measuring system
cable
Ext. 24 V power supply
I/RF
E.g. SIMODRIVE 611 analog
E.g. absolute encoder
(SSI)
E.g. linear position en-
coder with EXE
X2
X3 X4
X6X5
Axis 1...4
SIEMENS
SIEMENS
PG/PC
READY
contact
MP
Front connector
X1
Digital out-
puts
X9X8
PROFIBUS DP
connecting cable
E.g. SIMODRIVE 611
analog with resolver
C230-2
X7
Ethernet
connecting
cable
Fig. 6-1 Overview of the cable connecting the C230-2 to the servo drive (analog coupling) – Example
