Siemens SIMOTION C230-2 Equipment Manual

Installation
4-68
E Siemens AG, 2003 All rights reserved
SIMOTION C230-2, 04.2003 Edition
4.2.3 After installation
Inserting the key
Once the C230-2 has been mounted on the mounting rail, you can insert the key in
the STOP or STOPU position on the C230-2.
STOP
RUN
STOPU

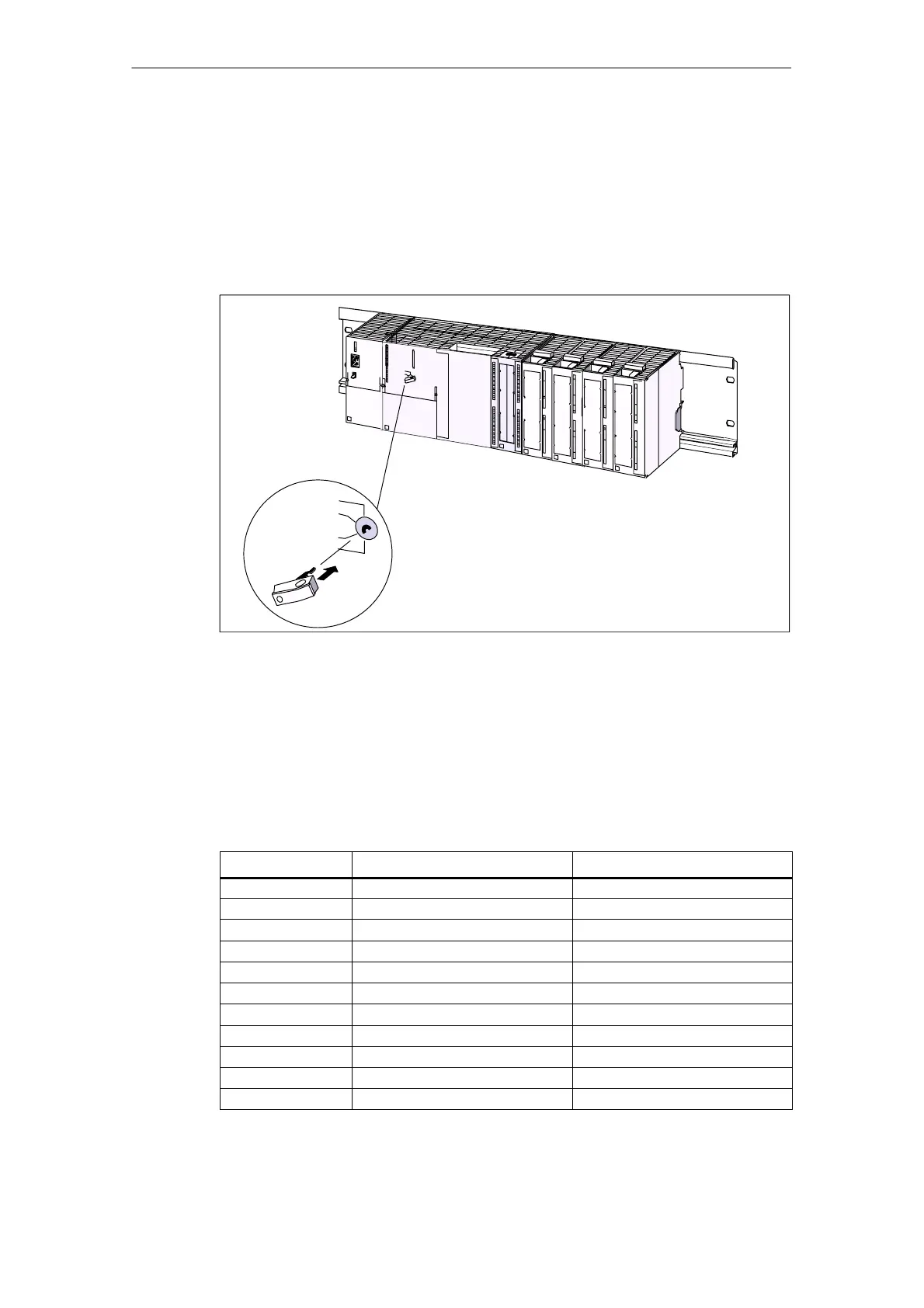

Fig. 4-7 Inserting the key in the C230-2
Assigning the slot numbers
After mounting, you can assign each module a slot number. This eases the assign-
ment of the modules to the configuration table in the Engineering System. Table
4-4 shows the assignment of the slot numbers.
Table 4-4 Slot numbers for S7 modules and C230-2
Slot no.
Module Remark
1 Power supply (PS) –
2 C230-2 –
3 Reserved –
4 1. I/O module On the right next to C230-2
5 2. I/O module –
6 3. I/O module –
7 4. I/O module –
8 5. I/O module –
9 6. I/O module –
10 7. I/O module –
11 8. I/O module –
