5.4 Addressing the integrated digital inputs and outputs of
the C230-2

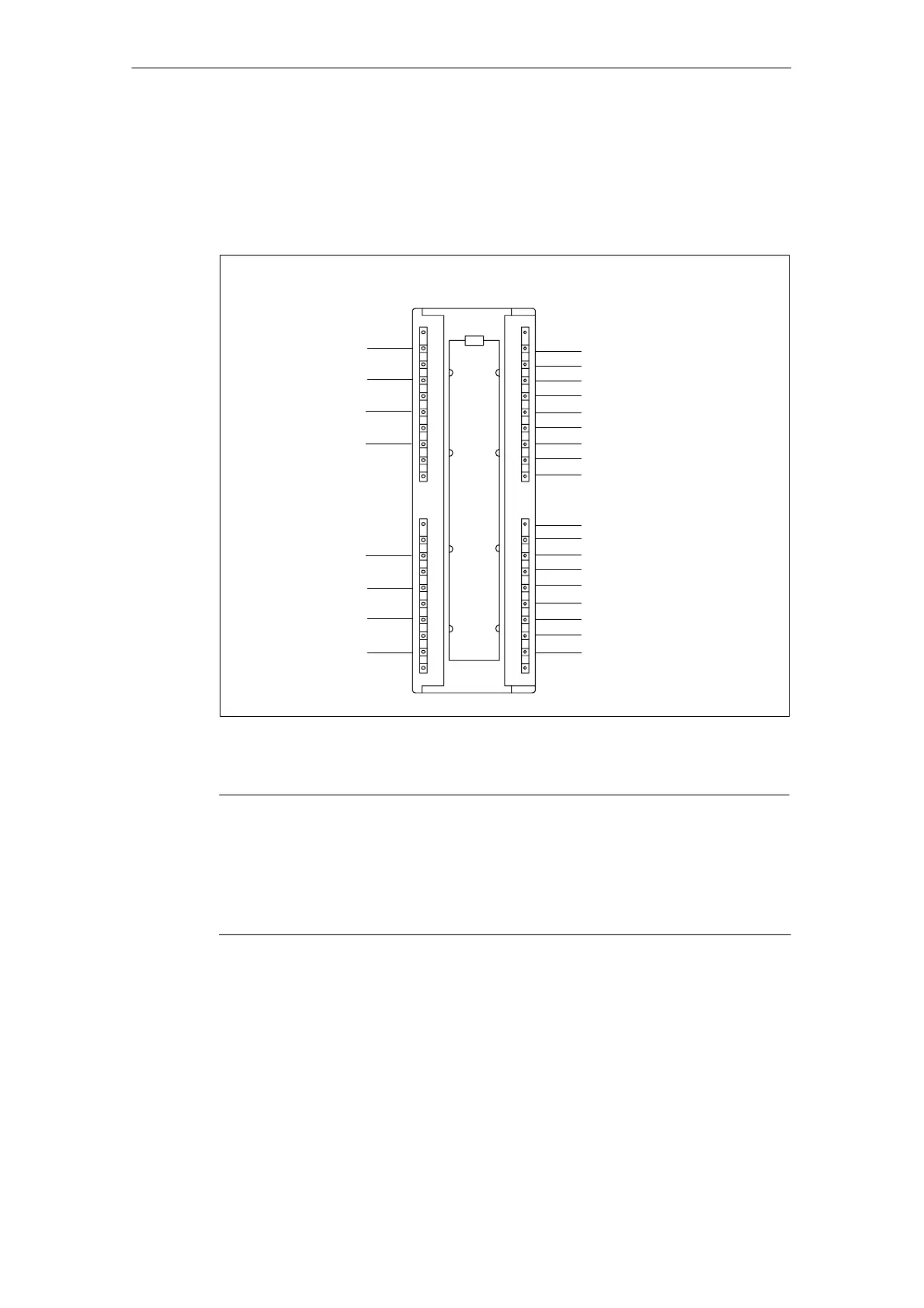

Fig. 5-5 shows the default initial addresses of the integrated digital inputs/outputs.
Inputs
M1
B1
B2
B3
B4
7
0
1
2
3
4
5
6
0
1
2
M2
11
10
9
8
7
6
5
4
3
C230-2
Outputs
Address 66.0
Address 66.1
Address 66.2
Address 66.3
Address 66.4
Address 66.5
Address 66.6
Address 66.7
Address 66.0
Address 67.3
Address 66.2
Address 66.3
Address 66.1
Address 66.4
Address 66.5
Address 66.6
Address 66.7
Address 67.0
Address 67.1
Address 67.2
Address 64.0
Address 64.1
Address 64.2
Address 64.3
Address 65.4
Address 65.5
Fig. 5-5 Addresses of the integrated digital inputs/outputs
Note
The addresses can be changed by the user in the hardware configuration (see
SIMOTION SCOUT operating instructions).
All initial addresses/signal bits (64.4...64.7, 65.0...65.3, 65.6, 65.7, 67.4...67.7) not
listed do not have any defined values and consequently may not be used in any
way for evaluation.
