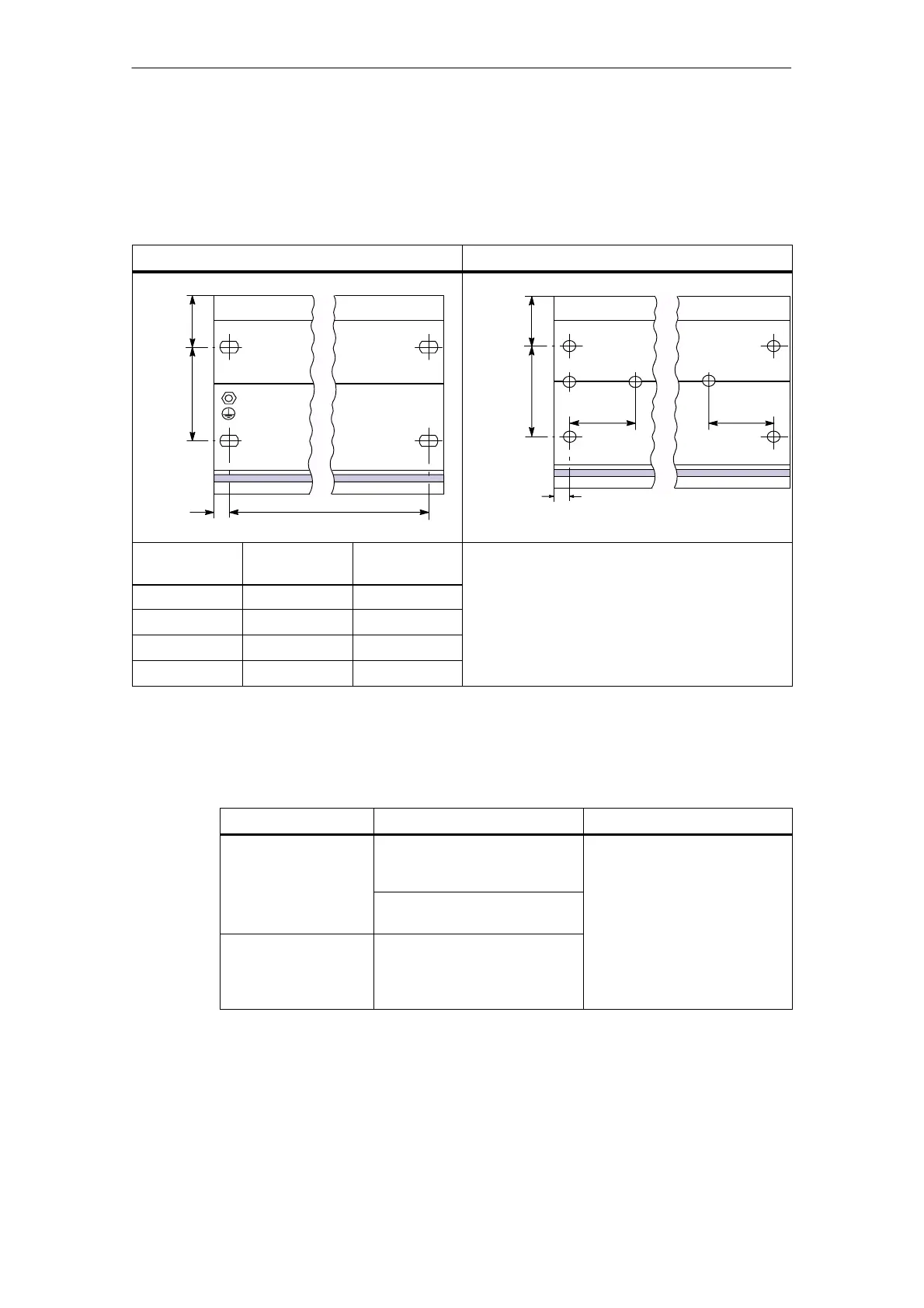

Dimension drawing for mounting holes
Table 4-2 provides information on dimensions for the rail mounting holes.
Table 4-2 Mounting holes for mounting rails
“Standard” mounting rail
2-meter mounting rail
32.5 mm
57.2 mm
a
b
32.5 mm
57.2 mm
15 mm
Approx.
500 mm
Approx.
500 mm
Mounting rail
length
Distance a Distance b –
160 mm 10 mm 140 mm
482.6 mm 8.3 mm 466 mm
530 mm 15 mm 500 mm
830 mm 15 mm 800 mm
Mounting screws
Choose one of the following types of screw to mount the mounting rail:
For You can use... Explanation
Outer mounting
screws
M6 cylindrical screw as per
ISO 1207/ISO 1580
(DIN 84/DIN 85)
Select a screw length that is ap-
propriate to your configuration.
In addition, you require 6.4
M6 hexagonal screw as per
ISO 4017 (DIN 4017)
washers as per
ISO 7092 (DIN 433).
Additional mounting
screw
(2-meter mounting
rail only)
M6 cylindrical screw as per
ISO 1207/ISO 1580
(DIN 84/DIN 85)
