Addressing the I/O
5-76
E Siemens AG, 2003 All rights reserved
SIMOTION C230-2, 04.2003 Edition
Example of digital modules

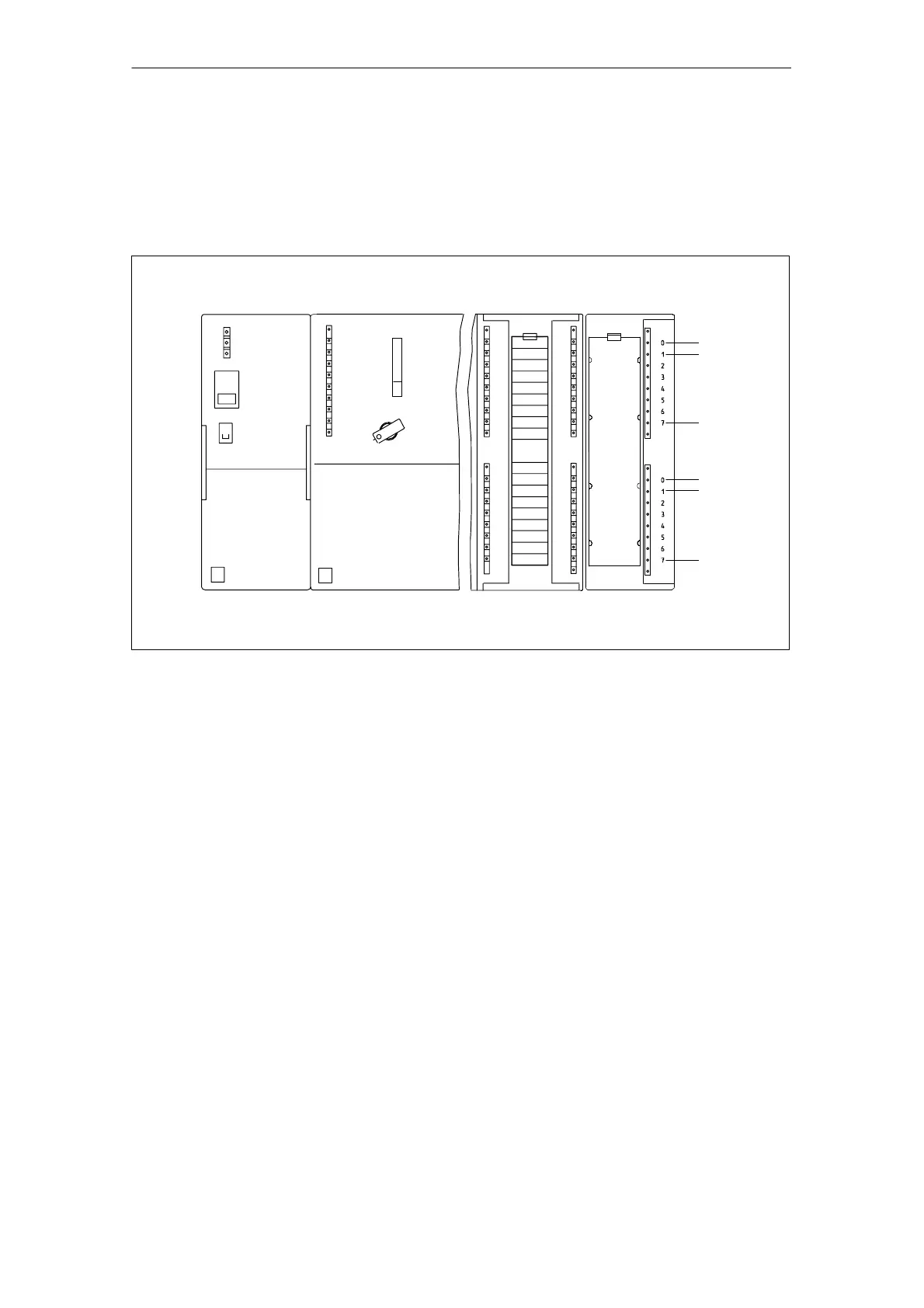

Fig. 5-3 shows, as an example, the default addresses obtained for a digital module
that is inserted in slot 4, i.e. if the module initial address is 0.
Slot number 3 is reserved as no interconnection module is present in the example.
Address 0.0
Address 1.1
Address 0.1
Address 0.7
Address 1.7
Address 1.0
Slot number 1
2
4
PS
SM (digital module)
C230-2
C230-2
Fig. 5-3 Addresses for the inputs and outputs of the digital module in slot 4
