Interfaces
3.4 PROFINET IO interface
SIMOTION D4x5-2
Manual, 11/2010
47

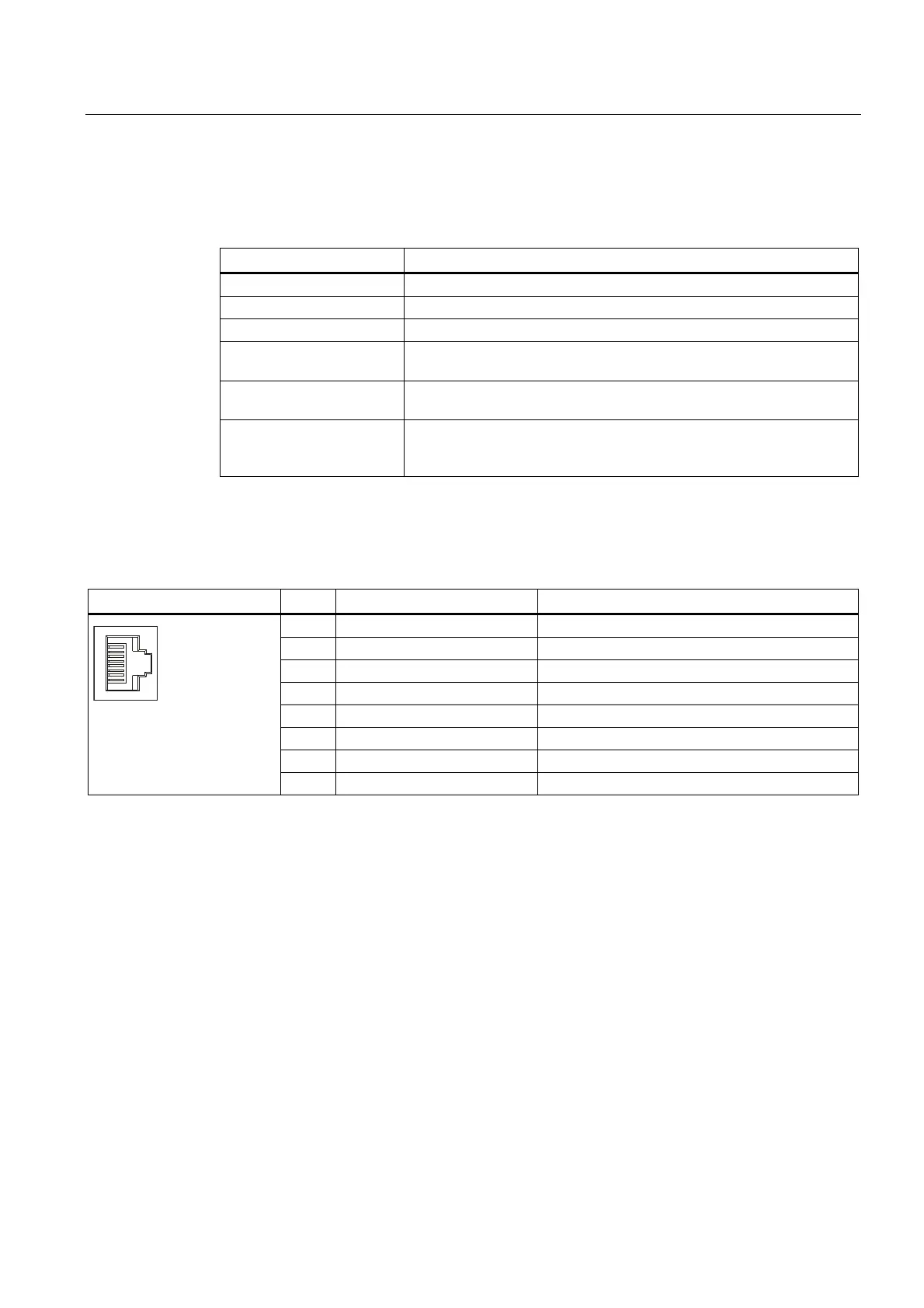

Interface characteristics
Table 3- 7 Ports X150 P1 to P3
Characteristic Type
Connector type RJ45plus socket
Cable type PROFINET
Maximum cable length 100 m
Minimum transmission
cycle
0.25 ms
Autocrossing Yes
i.e. both crossed and uncrossed cables can be used
Dust protection blanking
plugs for sealing unused
PROFINET ports
Five blanking plugs contained in the D4x5-2 scope of delivery
Blanking plugs (50 pcs) order number: 6SL3066-4CA00-0AA0
Interface assignments
Table 3- 8 Assignment of the ports X150 P1 to P3
View Pin Name Description
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 - Reserved, do not use
5 - Reserved, do not use
6 RXN Receive data -
7 - Reserved, do not use
$
%
$
%
8 - Reserved, do not use
Connectable devices
The following devices can be connected to the PROFINET IO interface:
● PG/PC programming devices (communication with SIMOTION SCOUT / STEP 7)
● SIMATIC HMI devices
● SIMATIC controllers with PROFINET interface
● Distributed I/O
● Drive units with PROFINET IO interface (standard devices)
