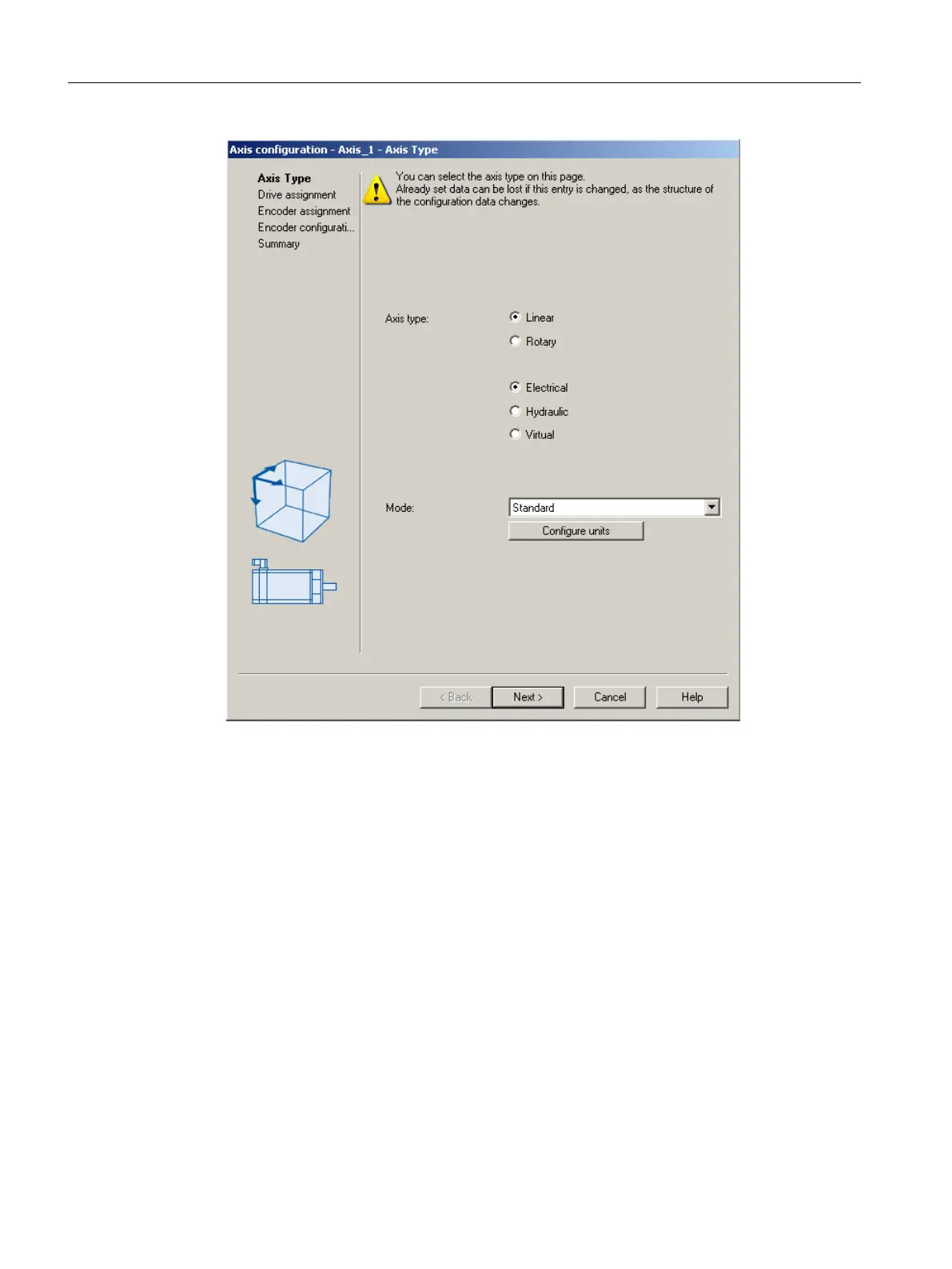

Figure 7-21
Defining the axis type
3.
Create a new drive or make the assignment to an existing drive.
Commissioning (software)
7.6 Creating and testing axes
SIMOTION D410-2
188
Commissioning and Hardware Installation Manual, 01/2015
187
189
