Requirement
● 1 strain relief
● 2 screws
● 1 T10 screwdriver
Procedure
Proceed as follows to secure the strain relief:
1. Remove the marked countersunk screws of the SIMOTION P320-4.

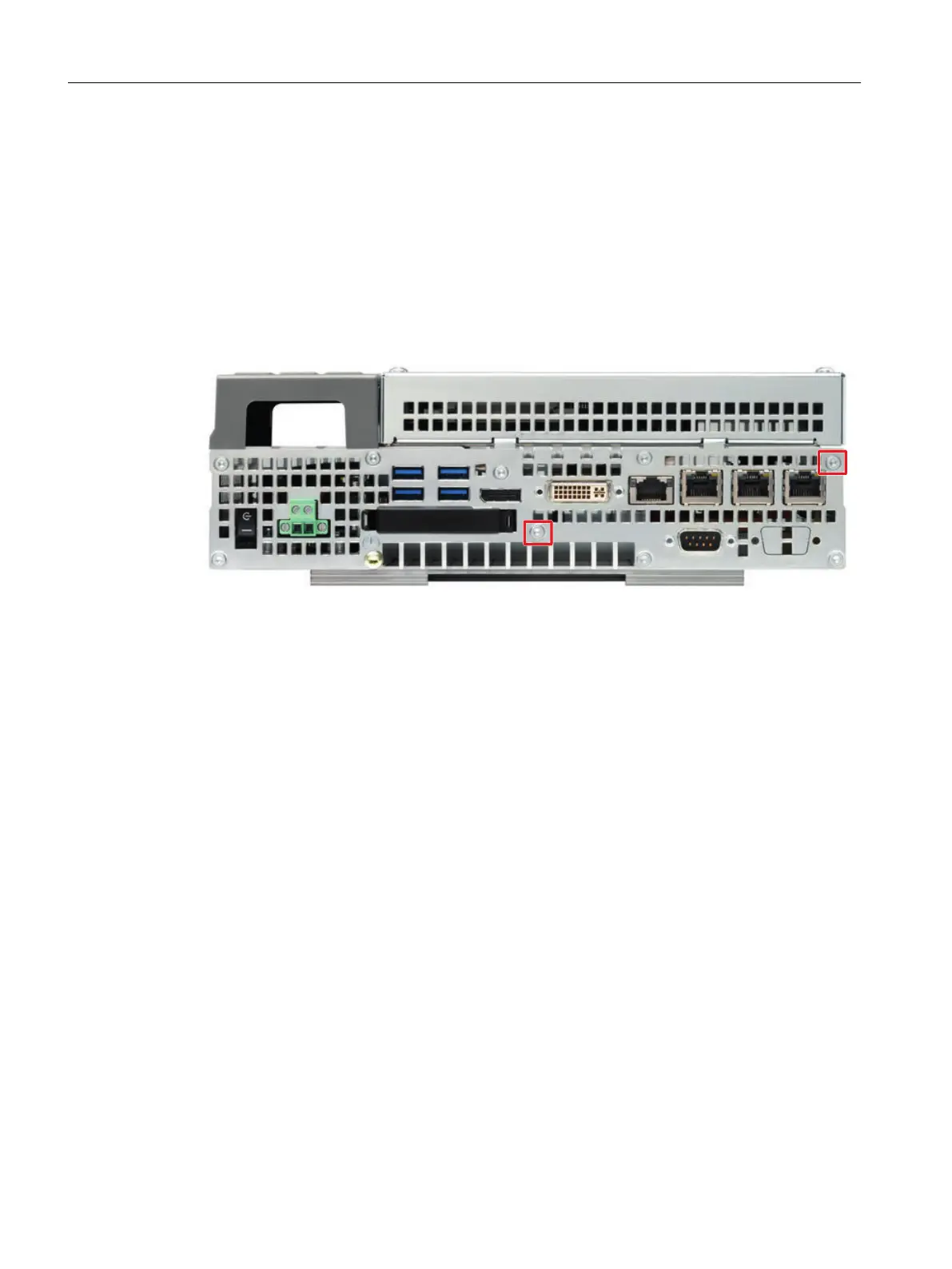

Figure 6-3 Strain relief - marking of the screws
2. Secure the strain relief at the marked points.
Only use the enclosed lens head screws for securing the strain relief.
6.5 Connecting PROFIBUS
6.5.1 Requirement
● SIMOTION P320-4 is switched off and disconnected from the mains
● IsoPROFIBUS board (Article No. 6AU1390-0AA00-0AA1)
Connection
6.5 Connecting PROFIBUS
SIMOTION P320-4 E / P320-4 S
104 Commissioning and Hardware Installation Manual, 11/2016
