3.2.4 Interfaces and operating elements

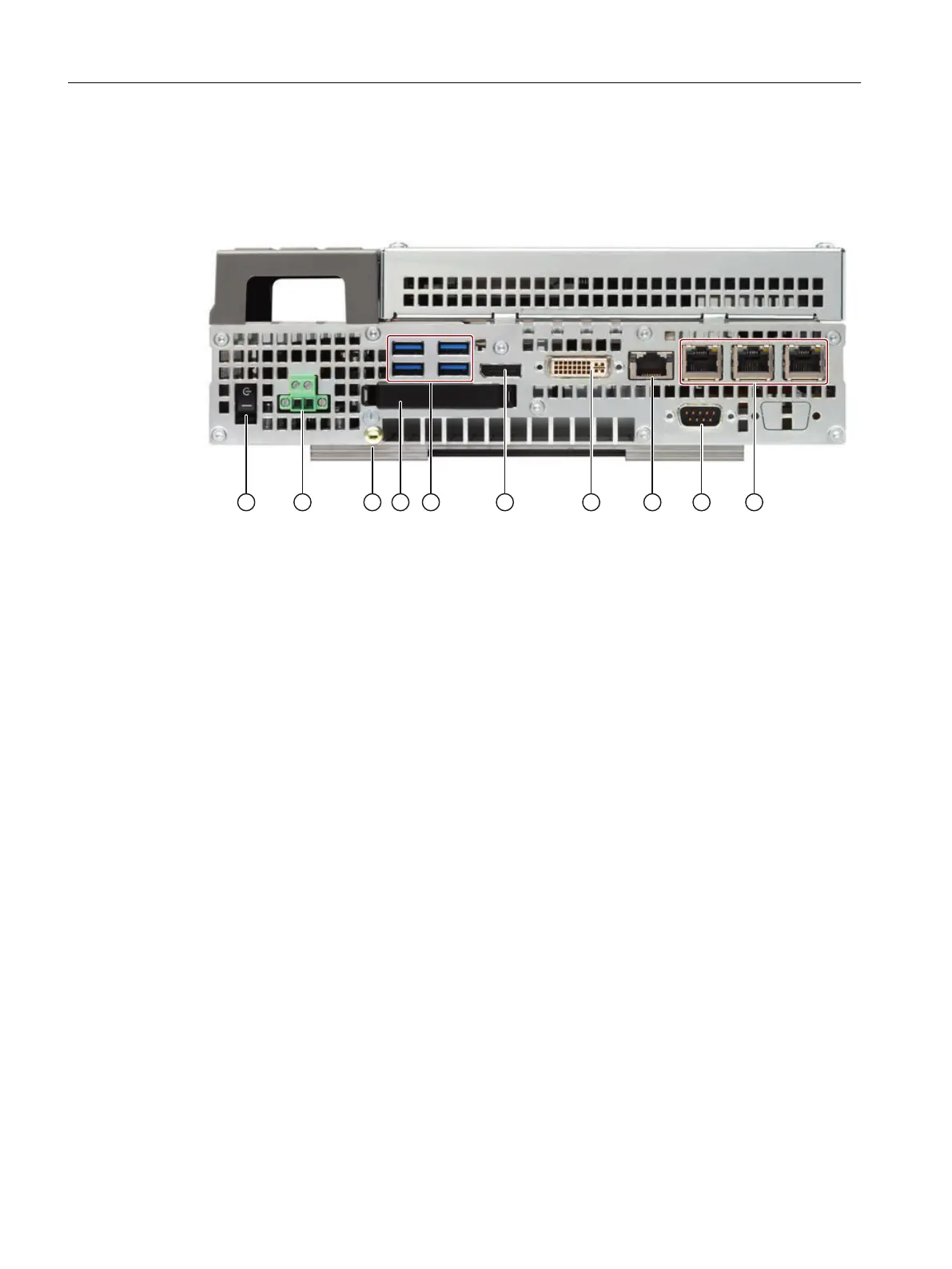

SIMOTION P320-4



① On/off switch Position OFF is the delivery state.
The on/off switch does not isolate the device from the power sup‐
ply.
② 24 V DC Power supply connection
③ Protective conductor Protective conductor terminal
④ Memory card slot Cover for the CFast card
⑤ 4 × USB 3.0 USB 3.0 high current, backward compatible with USB 2.0/1.1
⑥ Display port Display port connection for digital monitor
⑦ DVI-I DVI connector for CRT or LCD monitor with DVI interface
⑧ Ethernet RJ45 Ethernet connection for 10/100/1000 Mbps
⑨ COM1 Serial interface
⑩ 3 × PROFINET PROFINET ports with three RJ45 sockets
3.2.5 SIMOTION P Runtime (software) structure
SIMOTION P Runtime contains the SIMOTION P Kernel which performs the motion control
and interface control.
A SIMOTION project is planned, configured, assigned parameters, commissioned and
programmed via the SIMOTION SCOUT engineering system (ES).
The user data can be stored on the data media of the SIMOTION P320‑4 .
Siemens WinCC flexible software can be used to visualize operational sequences or to operate
the machine. Third-party systems can be linked via the OPC interface.
Description
3.2 SIMOTION P320-4 product description
SIMOTION P320-4 E / P320-4 S
56 Commissioning and Hardware Installation Manual, 11/2016

Siemens SIMOTION Series Specifications

General

Interfaces	PROFIBUS, PROFINET, Ethernet, USB
Programming Languages	LAD, FBD
Safety	Integrated safety functions
Typical Applications	Machine automation, robotics, packaging, printing
Relative Humidity	5% to 95% (non-condensing)
Protection Class	IP20
Certifications	CE, UL, cUL
