9.4 Local communication via PC internal
9.4.1 Local communication (PC-internal) overview
Local communication in the SIMOTION P320-4 between Windows programs such as HMI and
the SIMOTION P runtime software is handled by the PC's internal communications
mechanisms.
9.4.2 Checking the PC-internal settings
Configuration in the Windows Control Panel of the SIMOTION P320‑4
To enable local communication the following settings must have been made:
You can access the settings via the Control Panel of Windows:

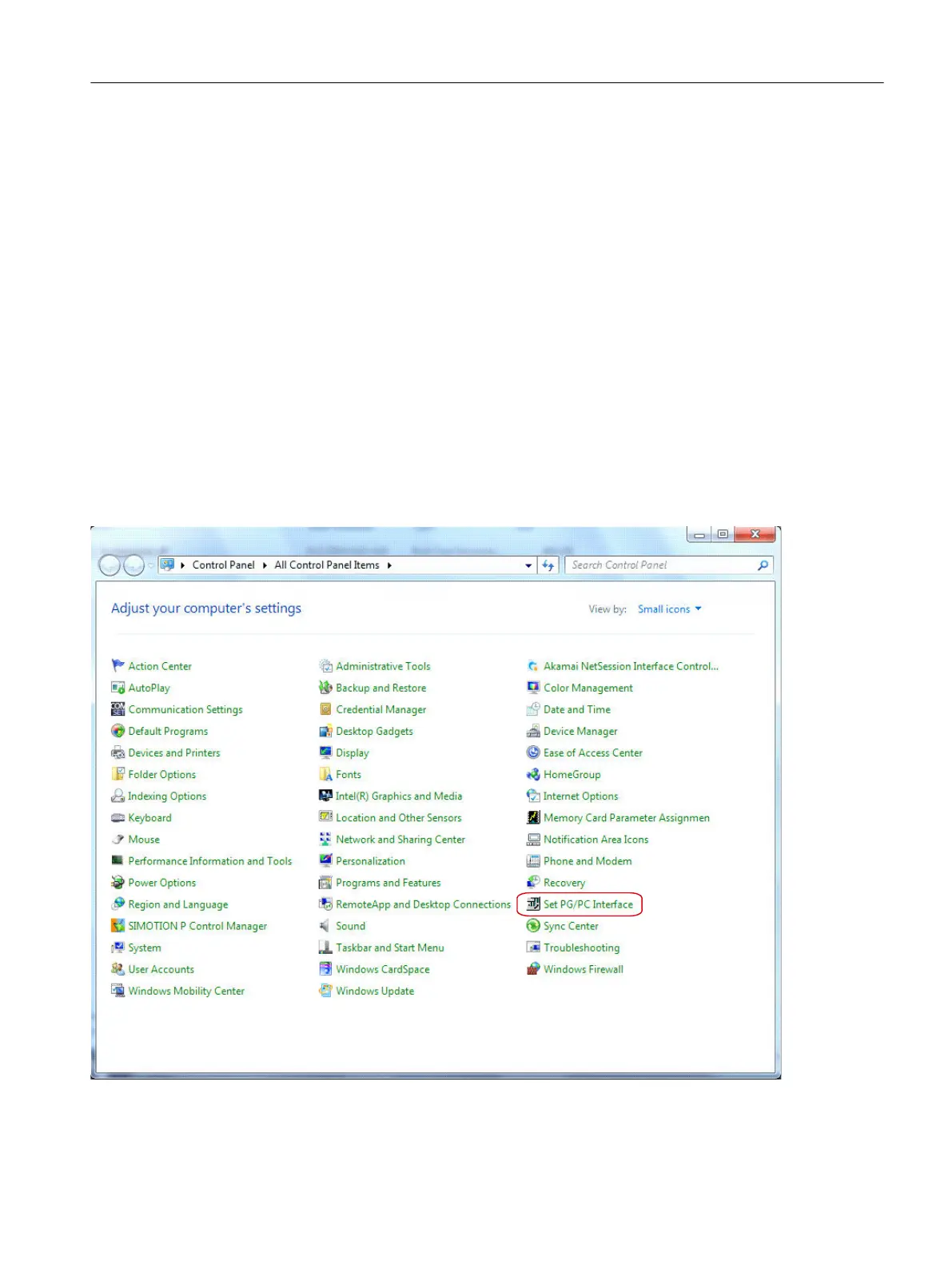

Figure 9-9 Control Panel - Set PG/PC Interface
Parameter assignment/addressing
9.4 Local communication via PC internal
SIMOTION P320-4 E / P320-4 S
Commissioning and Hardware Installation Manual, 11/2016 137
