Procedure
To connect the IsoPROFIBUS board, proceed as follows:

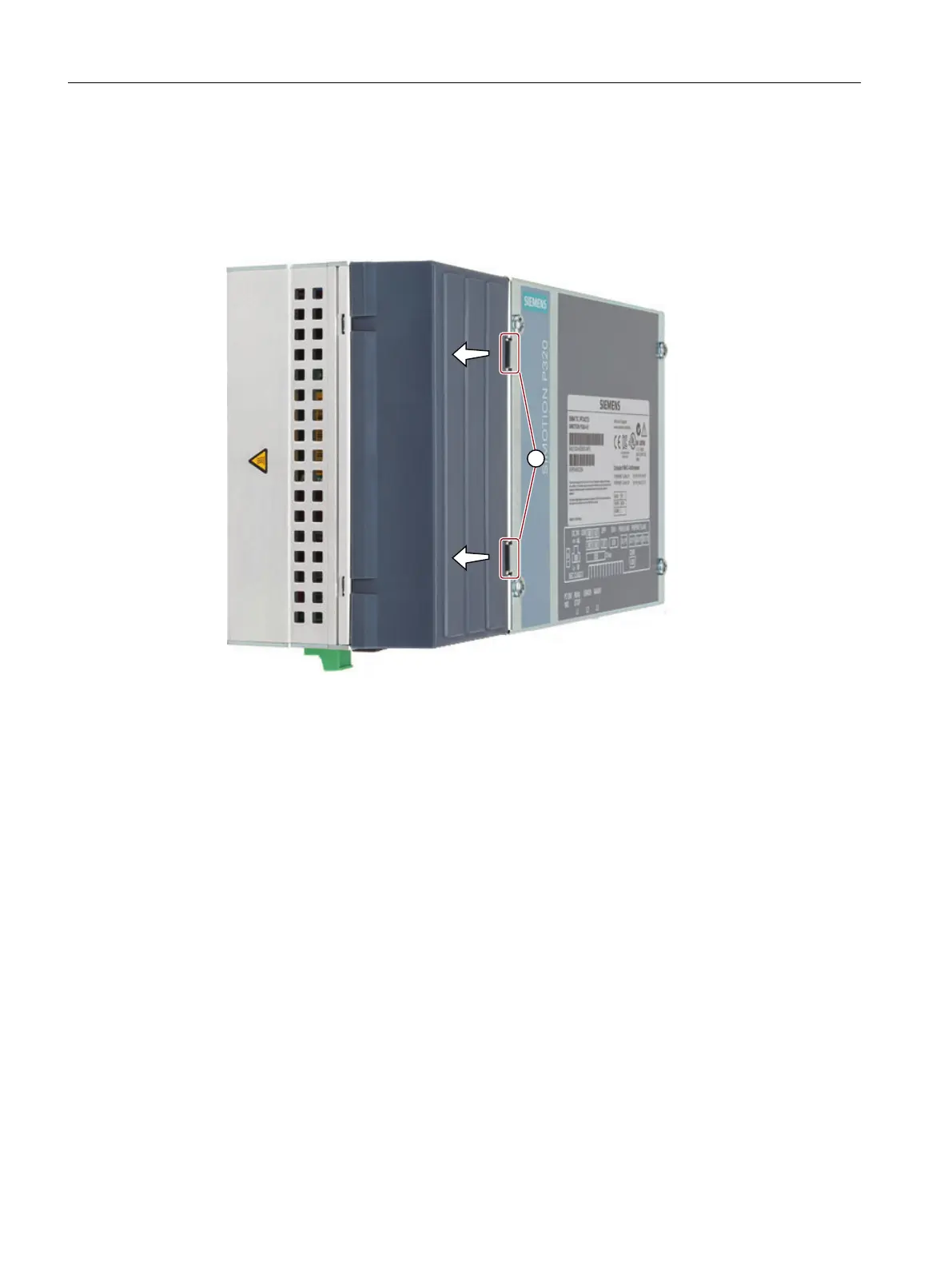

1. Unlock the cover by pushing the latches in the direction of the arrow;
swivel the released cover in the direction of the arrow and remove it. The interfaces for the
optional IsoPROFIBUS board are then free.
2. Connect the IsoPROFIBUS board to the slots shown.
Connection
6.5 Connecting PROFIBUS
SIMOTION P320-4 E / P320-4 S
