3. You must turn the switch back to the MRES position within three seconds.
MRES is then displayed in the status.

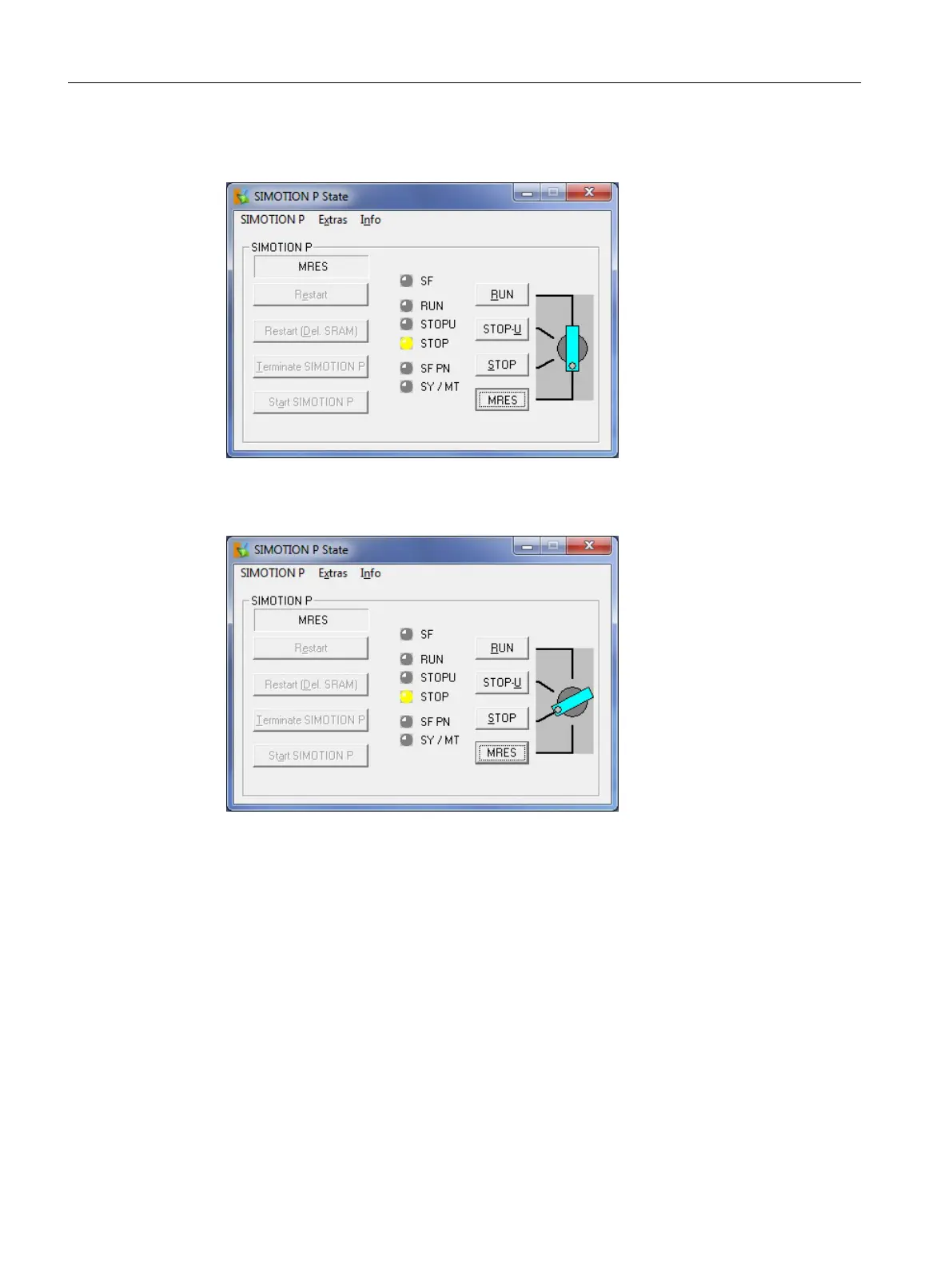

Figure 10-19 SIMOTION P State - status MRES
The mode selector then goes into the STOP position.
Figure 10-20 SIMOTION P State - status MRES, mode selector STOP
4. The SIMOTION P320-4 then restarts automatically.
Commissioning (software)
10.9 SIMOTION P overall reset
SIMOTION P320-4 E / P320-4 S
176 Commissioning and Hardware Installation Manual, 11/2016
