Procedure

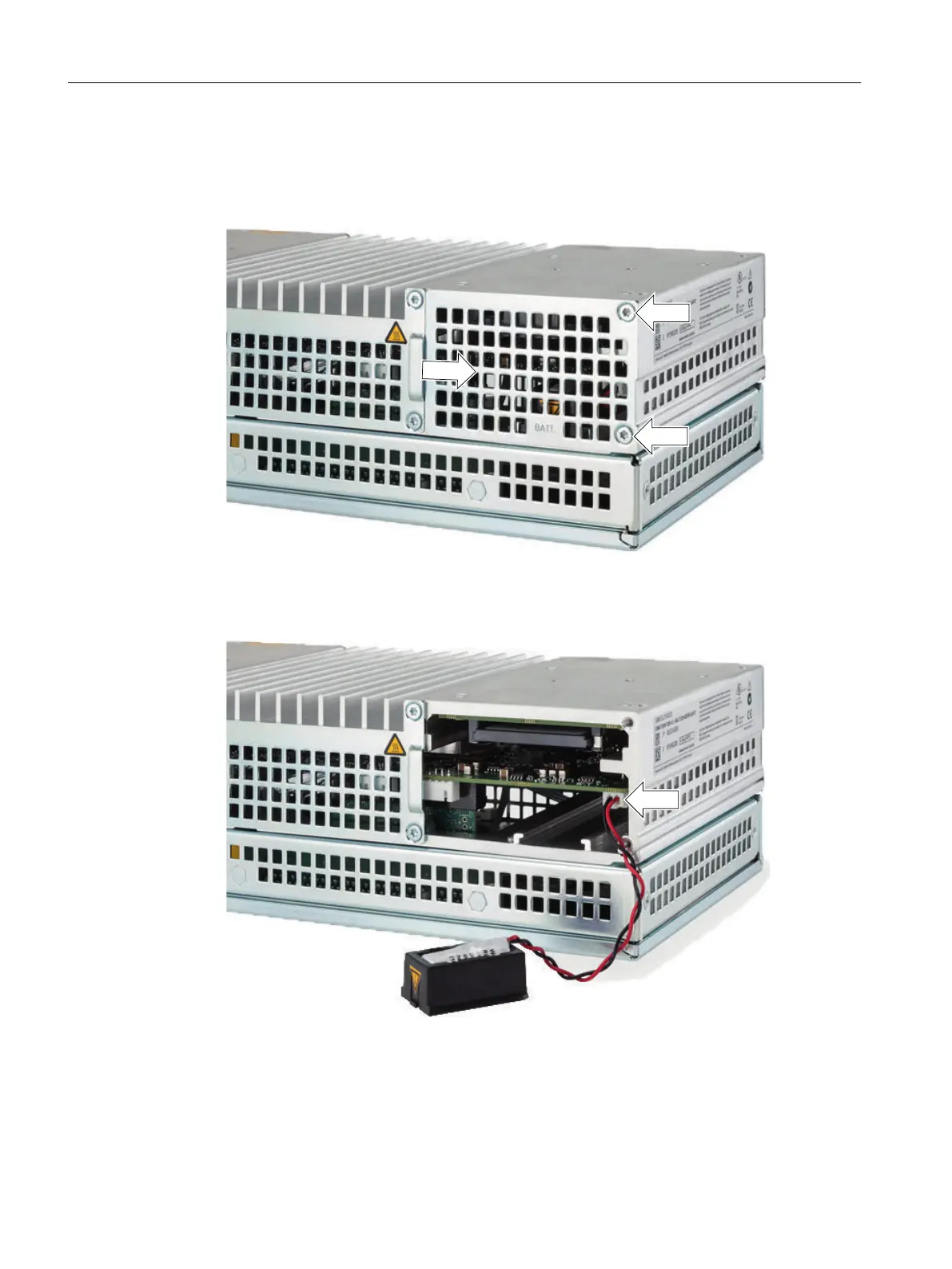

Steps for replacing the battery:
1. Open the battery compartment.
2. Remove the battery holder.
3. Unplug the battery connector.
4. Connect the battery plug to the new battery.
5. Remove the old battery from the holder.
6. Secure the new battery in the holder.
7. Close the battery compartment.
Service and maintenance
11.4 Installing/removing the back-up battery of the SIMOTION P320-4
SIMOTION P320-4 E / P320-4 S
188 Commissioning and Hardware Installation Manual, 11/2016
